INTERIOR

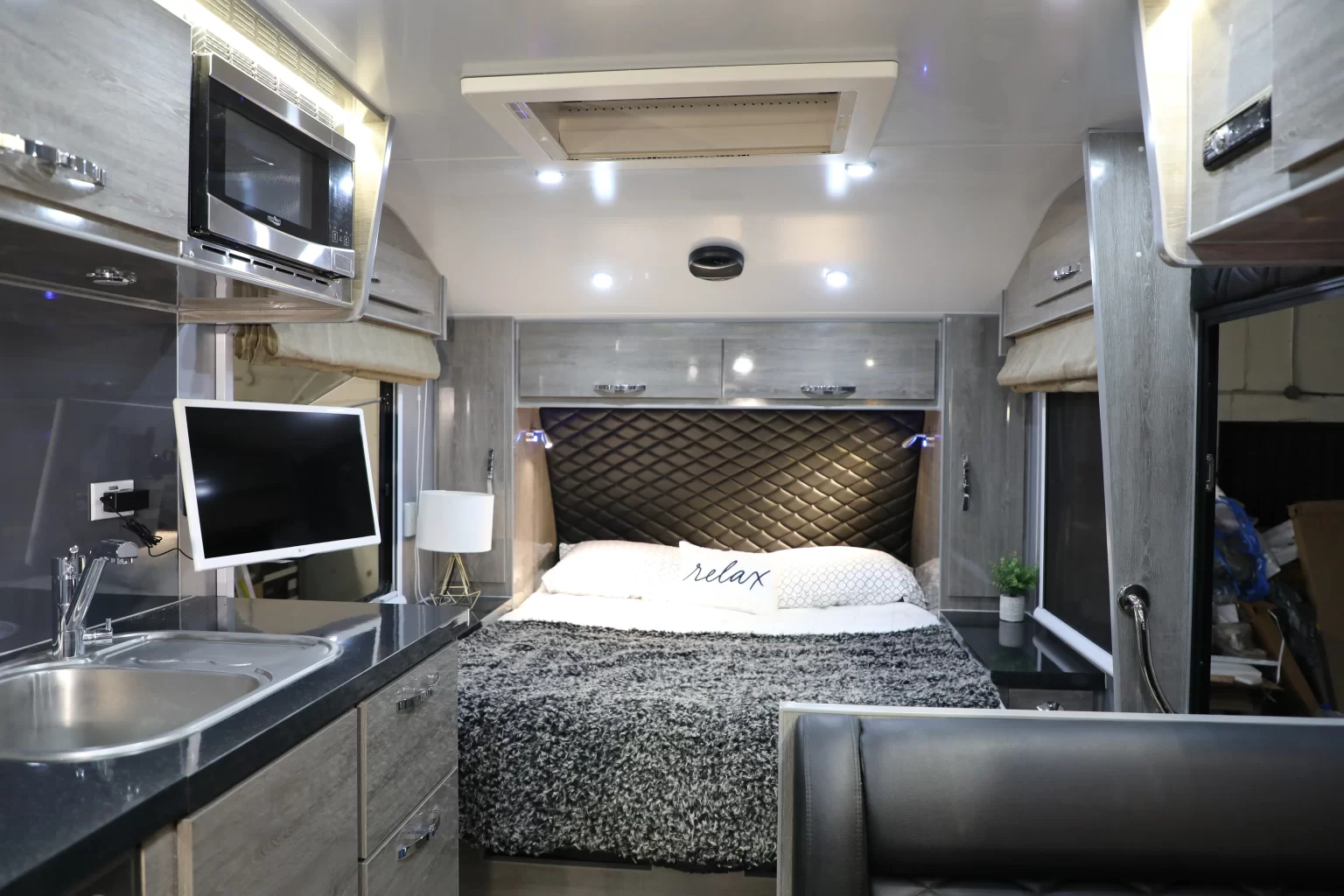

Sleeping   Configuration: 1×Queen Bed,2×Bunk Beds, and Convertible   Lounge
Wet Bath:Full Fiberglass Shower Enclosed with Ventilation and Toilet

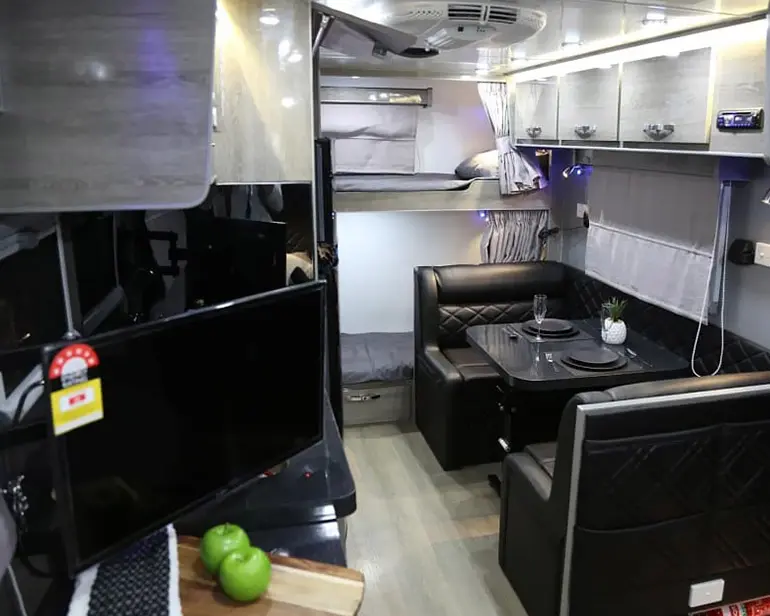

Lounge: Dinette with Premium Faux   Leather Seating and Adjustable Table.
Convertible to sleeper
Kitchen: Propane Stove, Sink, Microwave, and Fridge
Flooring: Wood Vinyl
Cabinetry: Modern 5-Star Timber Finish   Veneer
All cabinetry comes equipped with gas strut supports with push open   travel-safelocks and soft close drawers
Leather: Premium Leather with a 5-Star Finish
Screen Door: Tri-Lock Security Door with locking Fly Screen


EXTERIOR

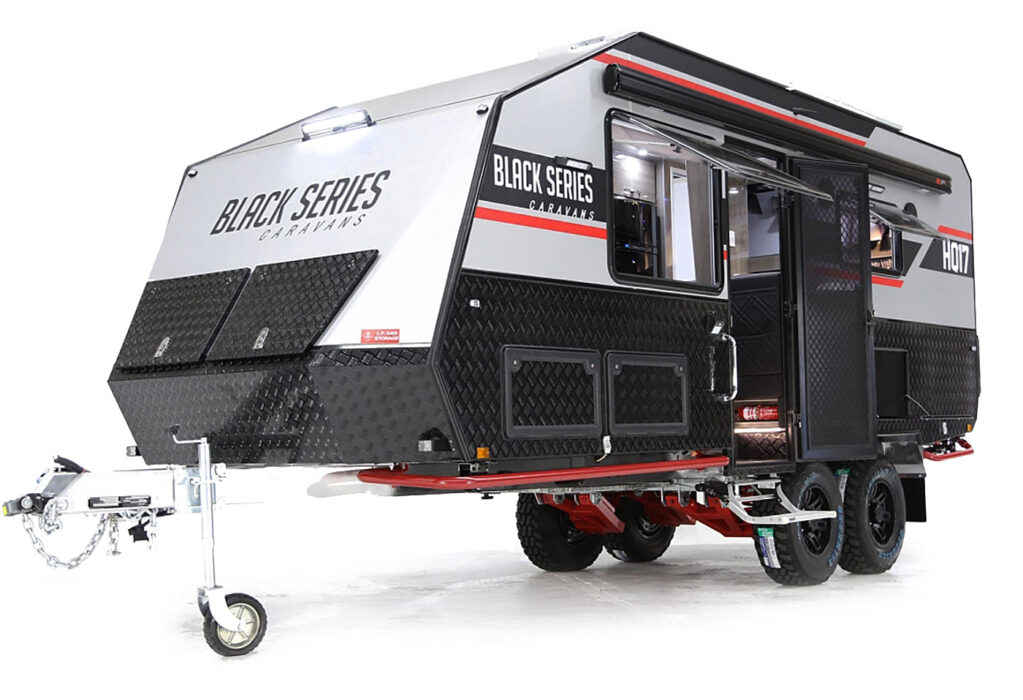

Materials: Aluminum Composite Panels with added   Aluminum Diamond Plating for added strength
Stone   Guard/Skid Guard:Adds Protection for Bottom Edge of Camper
Insulation: Spray Foam R16 Insulation on   Full Roof and Walls
Roof: One Piece Aluminum and Roof Hatch with Shade

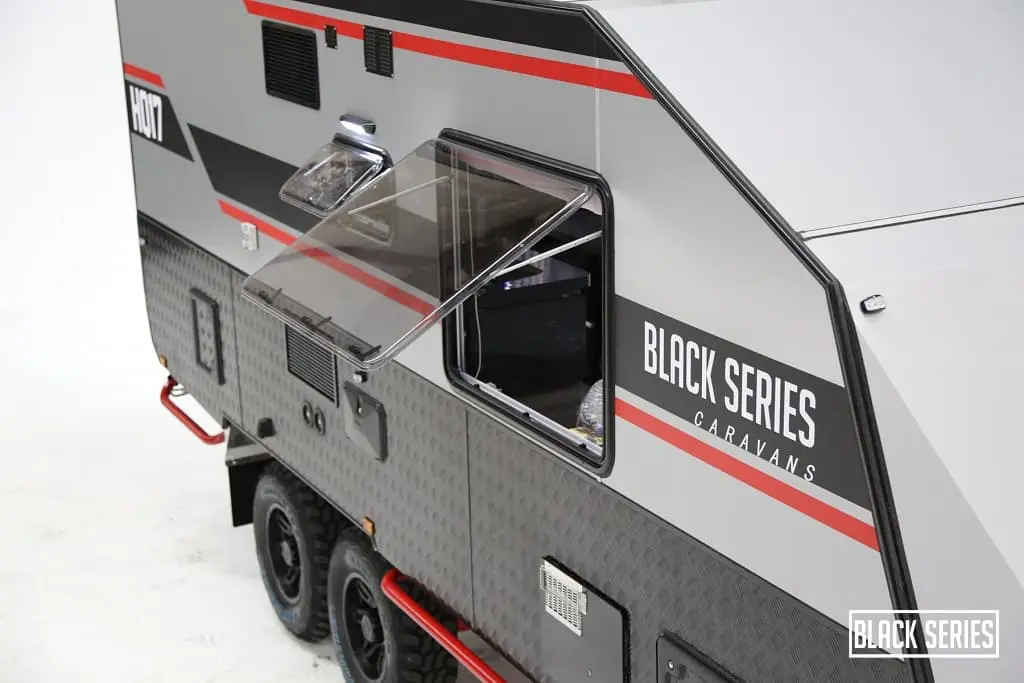

Windows: Eurovision Windows with Fly Screen and Privacy Shades
Awning:13ft Dashu Electrical Awning
Storage: Large Pass-Through Storage
Front Storage for 2× Jerry Cans & 2× Propane Tanks
Pre-Table: Lockable Fold Down Outdoor Table

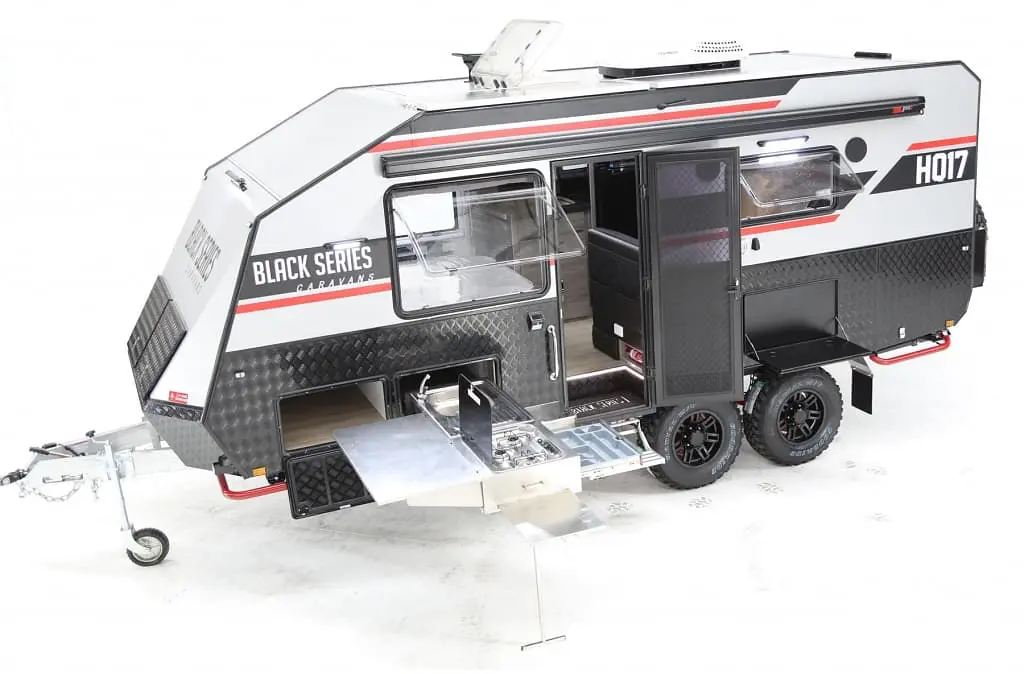

Outdoor   Kitchen: Stainless Steel Slide Out Sink,   Propane Burner Stove and Large Prep-Table
Shower: Outdoor Shower


APPLIANCES/
ACCESSORIES


PLUMBING

Shower: Outdoor Shower & Interior Full   Fiberglass Shower
Sink: Large Interior Stainless Steel Sink and Outdoor Stainless Steel Drip Sink
Toilet: Porcelain Toilet
Water Tanks:
Filtered Water: 11.88 Gal. Triple Filtered System
Fresh   Water: 63.4 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Grey   Water: 26.42 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Black   Water: 26.42 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Hot   Water: Hot Water System


ELECTRICAL


CHASSIS

Drawbar/Chassis: Hot Dipped Galvanized Tubular Steel made   from RHS 4"x2", 0.15 Wall Thickness, 0.24" Supporting Plates   for extra Strength & Durability.

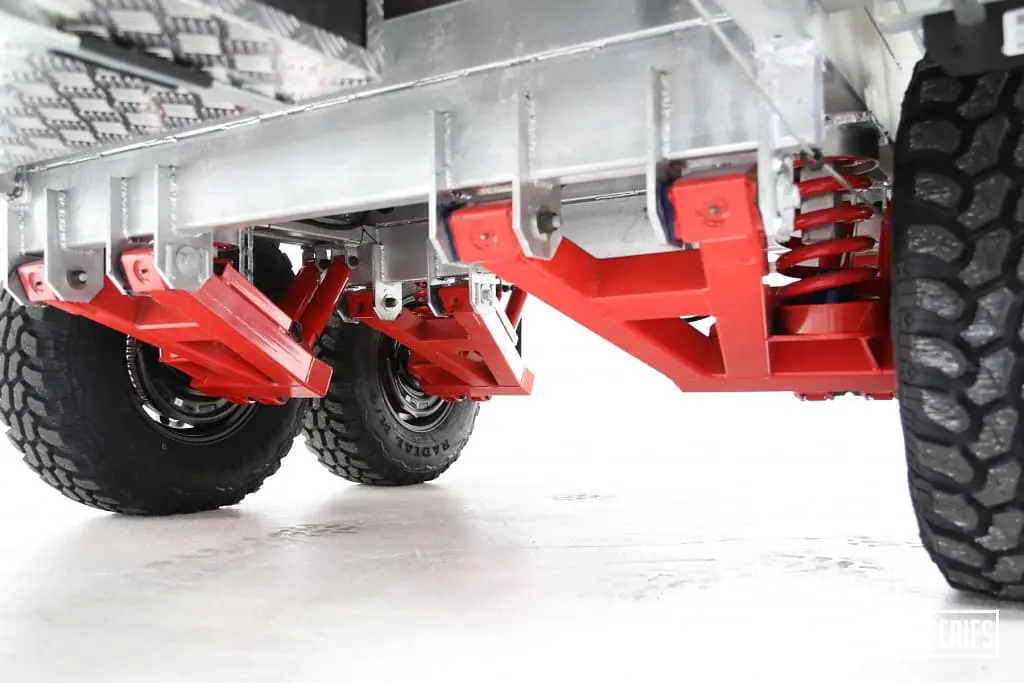

Independent Suspension: Control Arm with Dual Shock Absorbers and Coil Springs
Tires: 265x75xR16 Off-Road Tires with Two Spare Tires
Wheels: 16" Alloy Wheels with a Black Powder Coated Finish
Brakes: 12" Electric Tow Brake with   Mechanical Handbrake
Breakaway System Include 2x Safety Chains
Connector: 7 Pin Flat   Plug
Anderson   Plug: 50Amp Anderson Plug
Hitch: Black Series Camper, Inc. ADR Approved Off-Road Poly Block Hitch
Jockey Wheel: Off-Road Swing Away 10" Jockey Wheel
Recovery   Hooks: 2x Rear Facing Recovery Shackles

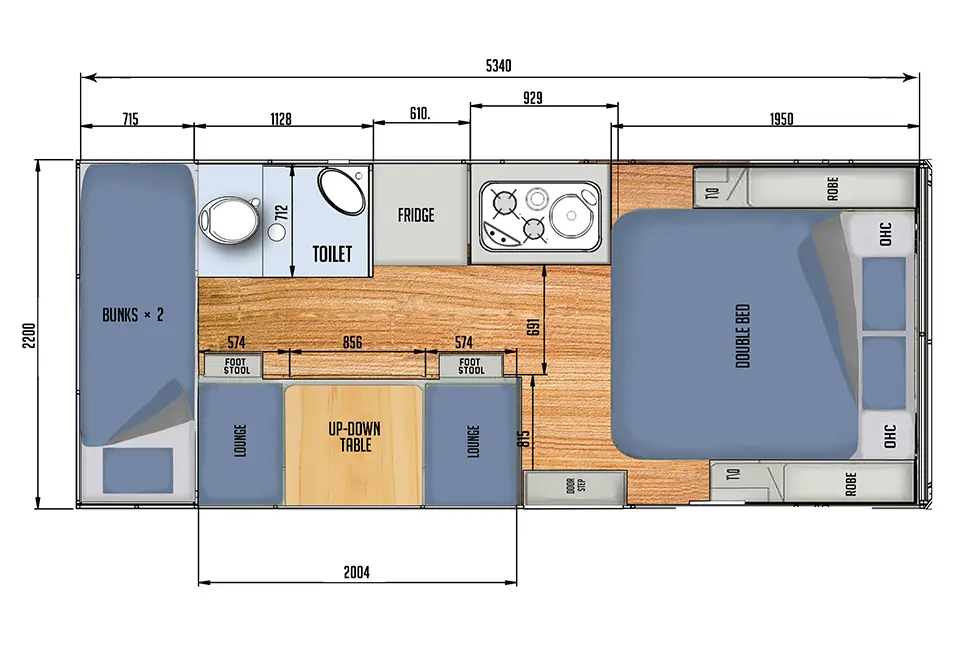

MEASUREMENTS

Internal Height:7ft
Internal   Length:17ft
External   Height:9ft
External   Length:24ft
External   Width:7ft
Dry Weight:6000lbs
Tongue   Weight:600lbs
GVWR:7000lbs
