PLUMBING

Shower: Outdoor Shower & Interior Full Fiberglass Shower
Sink: Large Interior Stainless Steel Sink and Outdoor Stainless Steel Drip Sink
Toilet: Porcelain Toilet
Water Tanks:
Filtered Water: 11.88 Gal. Triple Filtered System
Fresh   Water: 63.4 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Grey   Water: 26.42 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Black   Water: 26.42 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Hot   Water: Hot Water System


ELECTRICAL


CHASSIS

Drawbar/Chassis: Hot Dipped Galvanized Tubular Steel made from RHS 4"x2", 0.15 Wall Thickness, 0.24" Supporting Plates   for extra Strength & Durability.
Independent Suspension: Control Arm with Dual Shock Absorbers and Coil Springs
Tires: 265x75xR16 Off-Road Tires with Two Spare Tires
Wheels: 16" Alloy Wheels with a Black Powder Coated Finish
Brakes: 12" Electric Tow Brake with   Mechanical Handbrake
Breakaway System Include 2x Safety Chains
Connector: 7 Pin Flat Plug
Anderson   Plug: 50Amp Anderson Plug
Hitch: Black Series Camper, Inc. ADR Approved Off-Road Poly Block Hitch
Jockey   Wheel:Off-Road Swing Away 10" Jockey Wheel
Recovery   Hooks: 2x Rear Facing Recovery Shackles

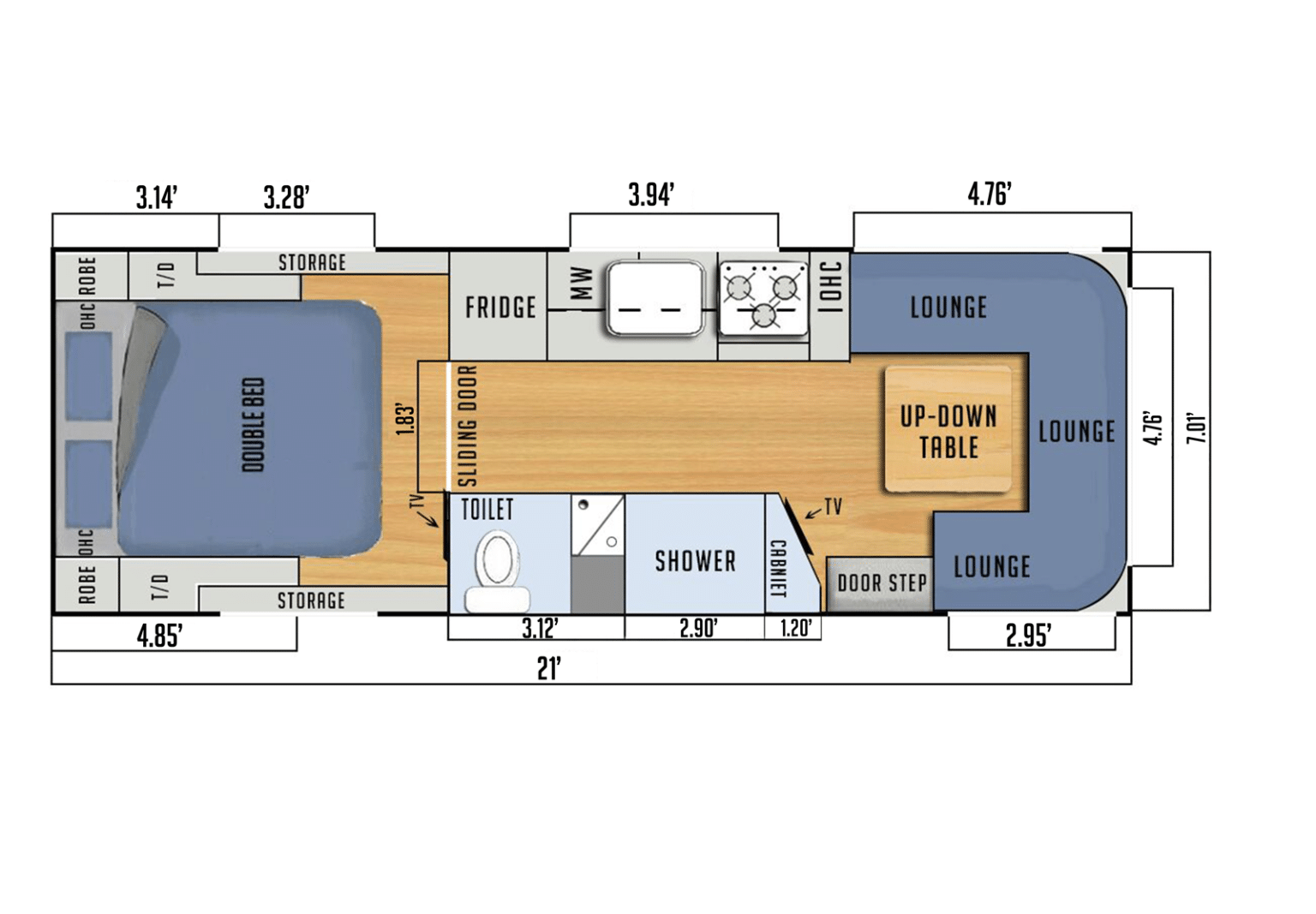

MEASUREMENTS

Internal Height:7ft
Internal Length:21ft
External Height:10ft
External Length:26ft
External Width:7ft
Dry Weight:7187lbs
Tongue Weight:718lbs
GVWR:8200lbs
