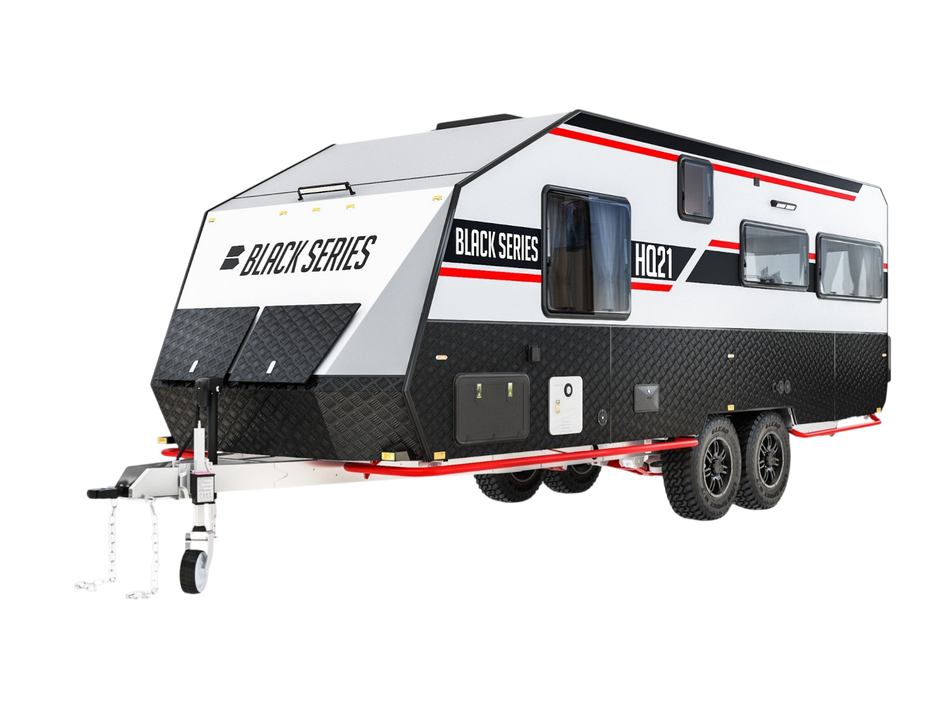

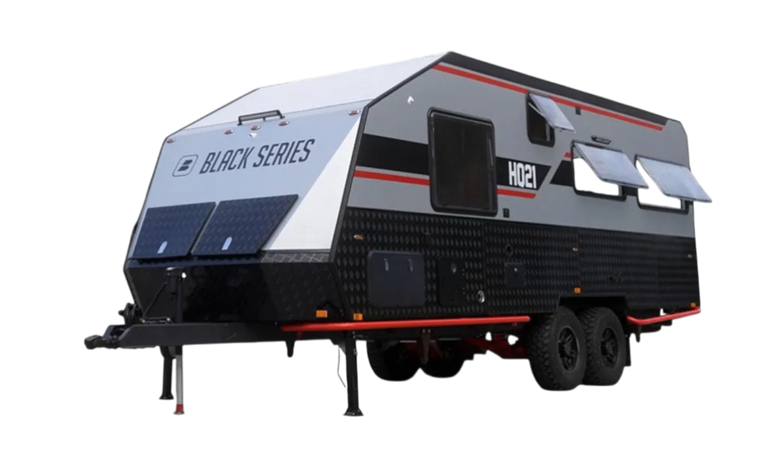

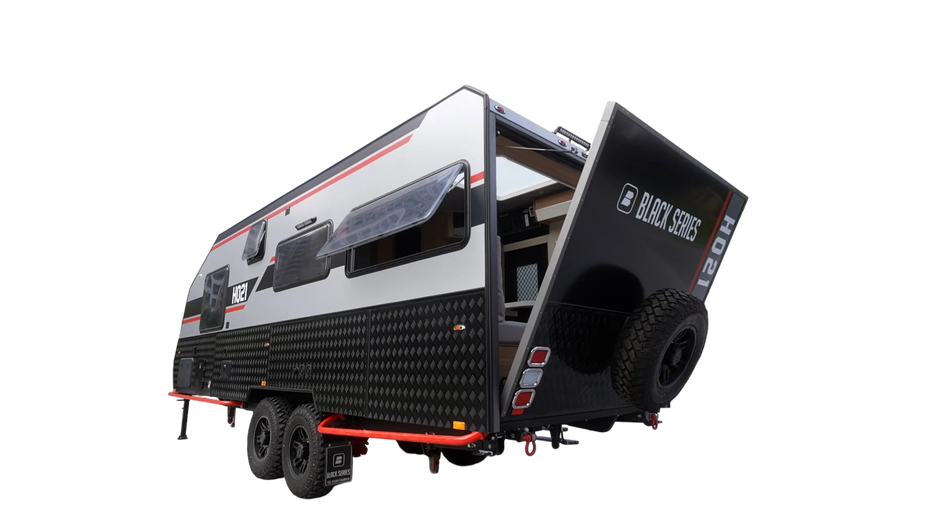

HQ21-Balcony Sleeps 4 | Dry Weight 7,187 lbs

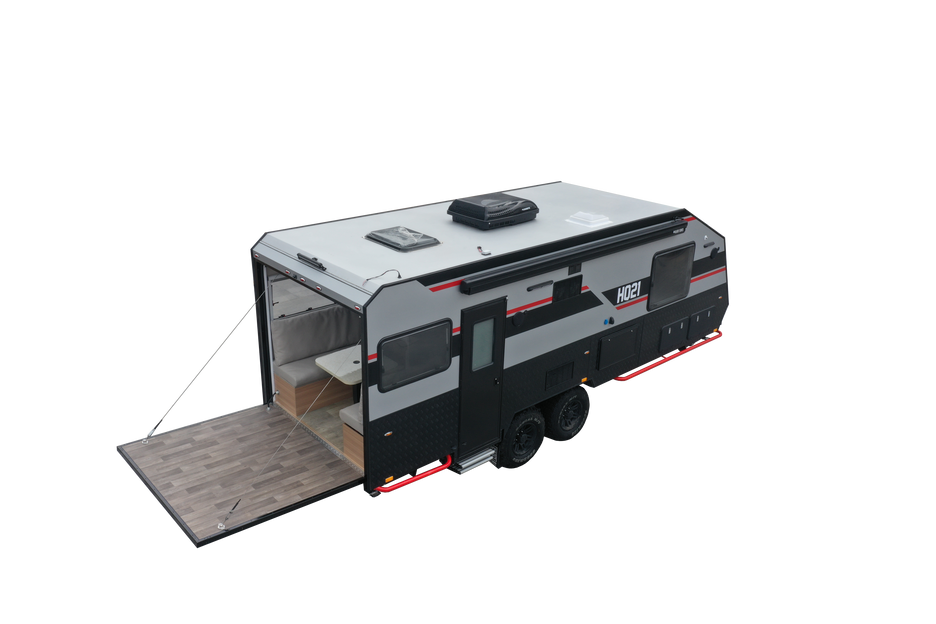

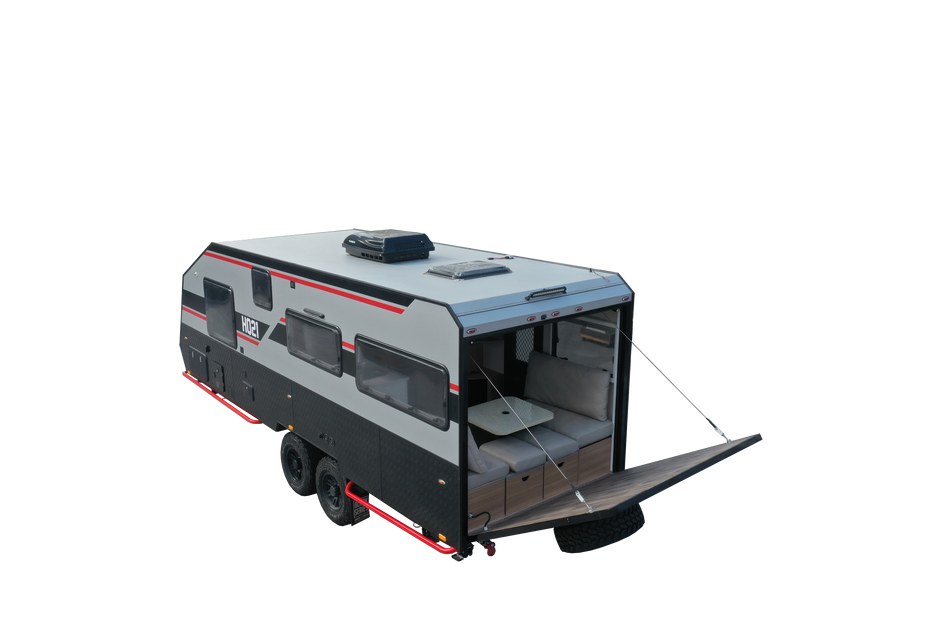

The pinnacle of the Black Series, the HQ21-BALCONY combines an aerodynamic design with an innovative, game-changing balcony. It’s built for rugged exploration with independent dual-shock suspension, a galvanized chassis, and 16″ off-road tires. Sleeps 4 with a queen bed, bunk bed, and convertible lounge, all finished with premium leather and modern cabinetry.
Engineered for ultimate off-grid living with vast water capacities: 64 gal fresh, 12 gal triple-filtered, 26 gal grey, and 26 gal black water tanks, plus an instant water heater and a full private bathroom.
A massive electrical system ensures continuous power with a 2,000W inverter, a powerful 400AH battery bank, and four 150W roof-mounted solar panels.
Dimensions & Weight
- Internal Dimensions: 7 ft height; 21 ft length.
- External Dimensions: 10 ft height; 27 ft length; 8 ft width.
Appliances & Accessories
- Equipped with a 6 cu. ft. fridge/freezer, an outdoor and indoor propane stove/oven, a microwave with four operating features, a 16,000 BTU furnace, and a 13,500 BTU rooftop air conditioning unit.
- Entertainment System: Includes a CD/FM/iPod/Bluetooth/USB Radio with 2x interior speakers and 2x outdoor marine-grade speakers, plus a 2×24″ TV with an HD antenna.
Plumbing & Sanitation
- Bathroom: Features a separate private bathroom and an interior full fiberglass shower, along with a Dometic toilet.
- Water Systems: 64-gallon fresh water tank, 26-gallon grey water tank, 26-gallon black water tank, 12-gallon triple-filtered water system, and an instant hot water heater.
Interior & Furnishings

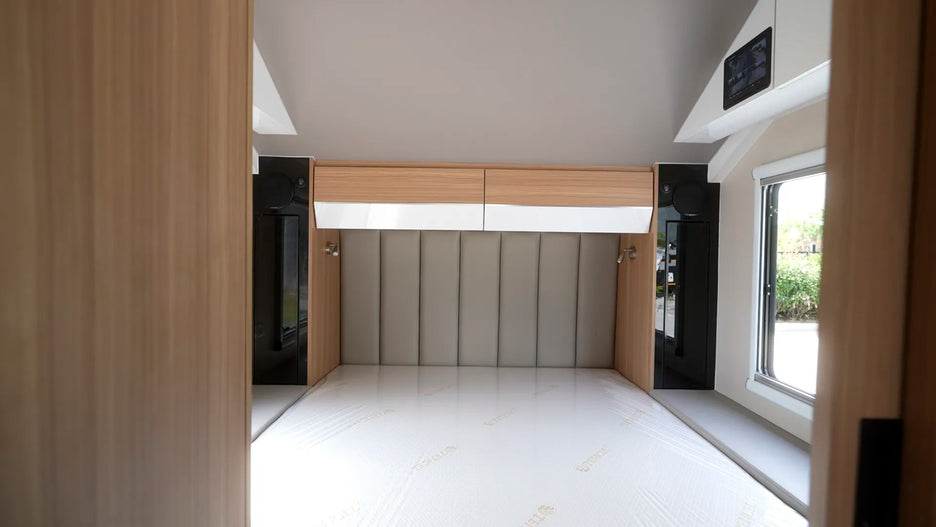

- Configuration: Sleeps 4 with one Queen Bed, a convertible lounge, and a bunk bed.

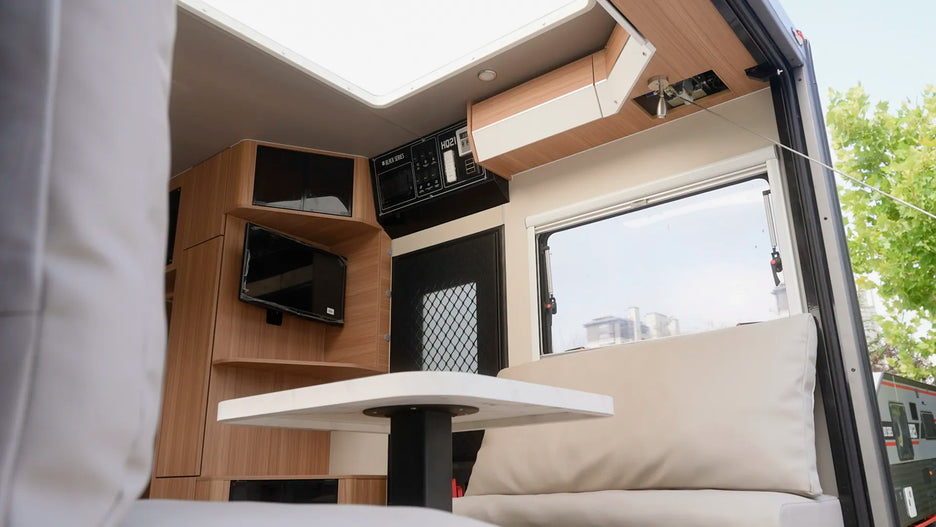

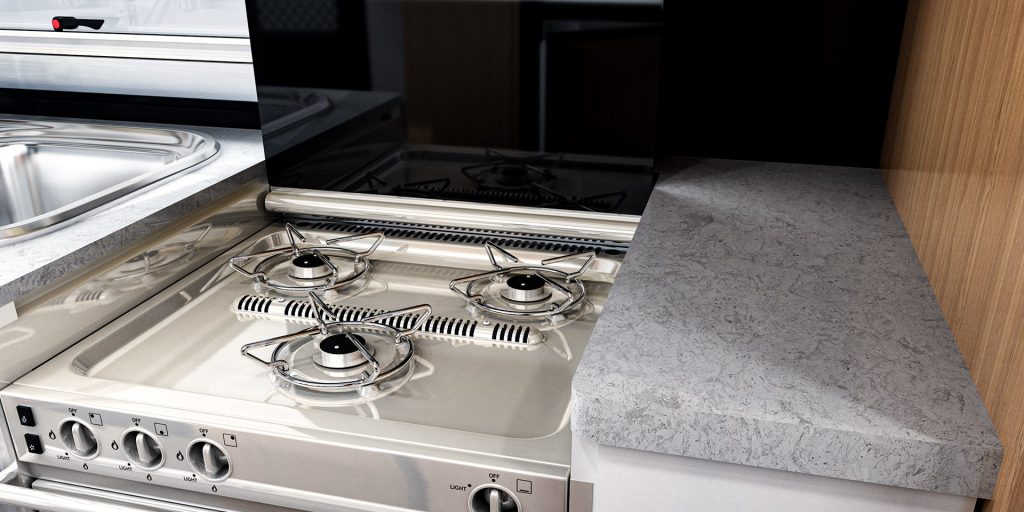

- Kitchen & Dining: Includes a large interior stainless steel sink, propane stove, sink, microwave, and fridge, with a dinette featuring premium faux leather seating.
- Finishes: Modern white finish veneer cabinetry, high-quality marine-graded faux leather, and wood vinyl flooring.
Electrical System & Power
- System: A powerful 12V/110V electrical system featuring a 2,000 Watt Black Series Pure Sine Wave Inverter.
- Power Source: Includes a powerful 400AH battery bank and 4 x 150W roof-mounted solar panels.

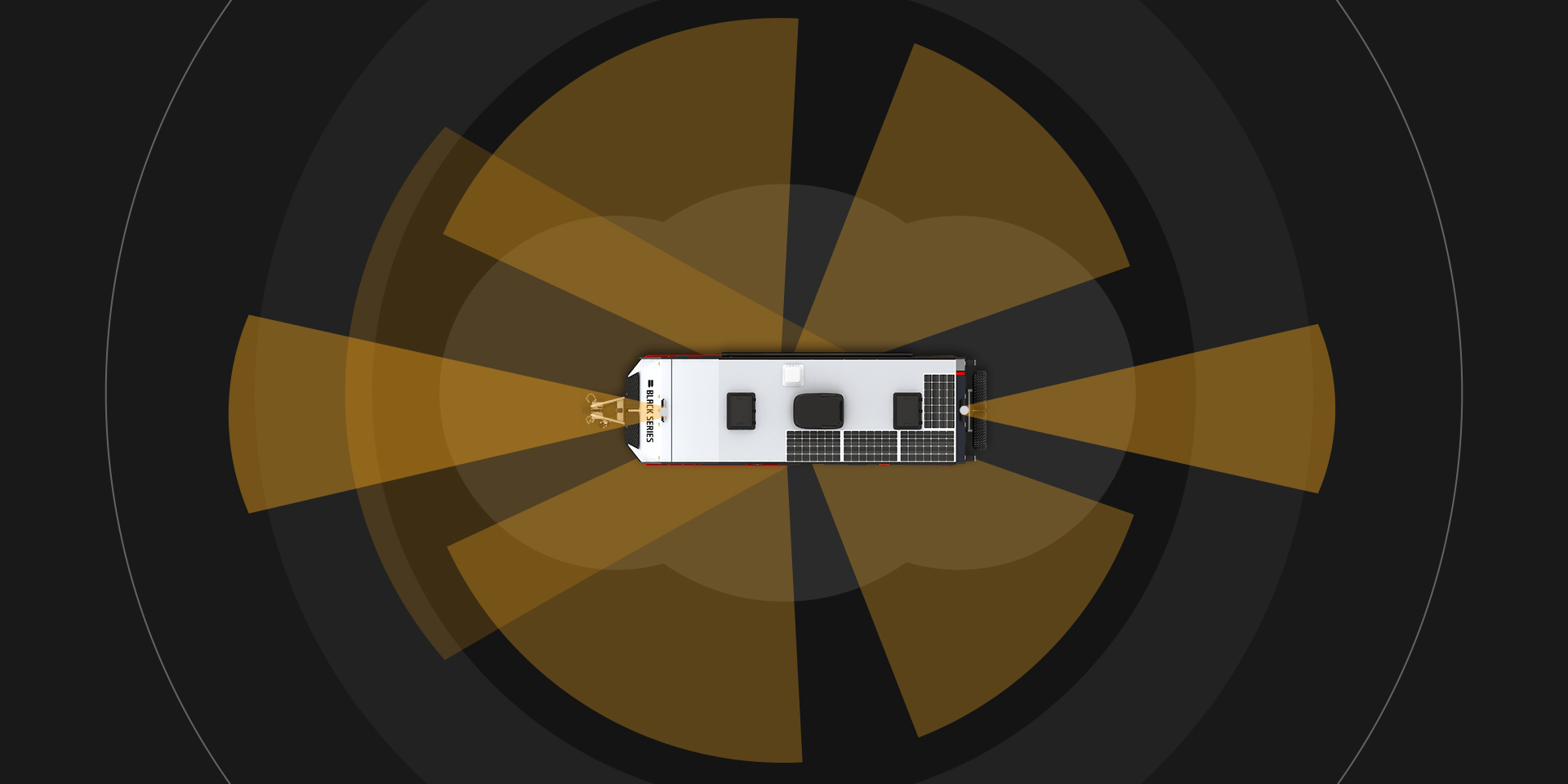

- Connectivity & Lighting: Features internal/external 12V plugs, wide-angle side-mounted LED flood lights, 30Amps shore power, and a central control panel with breakers and digital gauges.
Chassis & Suspension
- Chassis: Built on a hot-dipped galvanized tubular steel frame. It features an independent suspension with dual shock absorbers and coil springs.
- Tires & Wheels: Comes with 265x75R16 off-road tires and 16″ alloy wheels with a black powder-coated finish. Includes two spare tires.
- Towing Features: 12″ electric tow brake with mechanical handbrake, a 7-pin flat plug, a 50Amp Anderson plug, and 2x rear-facing recovery shackles.
Exterior Design & Storage
- System: A powerful 12V/110V electrical system featuring a 2,000 Watt Black Series Pure Sine Wave Inverter.
- Power Source: Includes a powerful 400AH battery bank and 4 x 150W roof-mounted solar panels.
- Connectivity & Lighting: Features internal/external 12V plugs, wide-angle side-mounted LED flood lights, 30Amps shore power, and a central control panel with breakers and digital gauges.
Open-Air Kitchen
The outdoor pull-out, all-stainless steel, double-burner,
high heat stove creates an open-air kitchen where you can put your cooking skills to the test.
Outdoor Leisure Space
The external 13ft remote-control electrical awning allowsyou to enjoy outdoor leisure with the touch of just one button.
