Largest HQ daily layout.

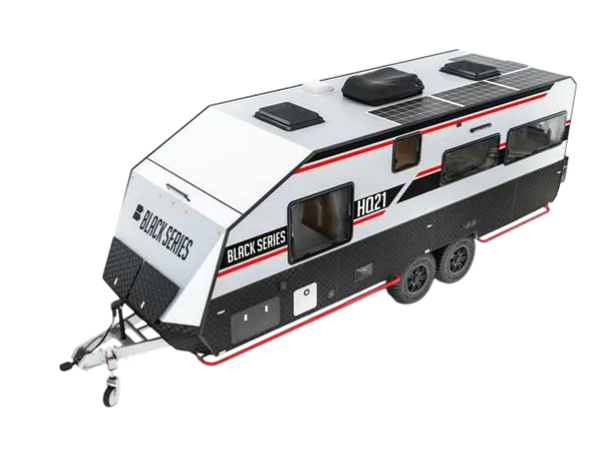

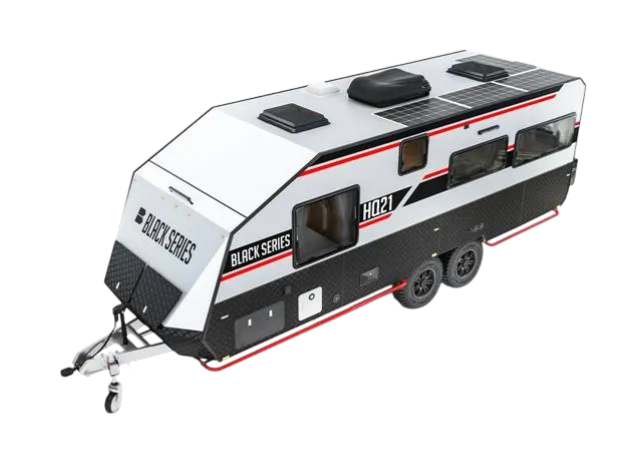

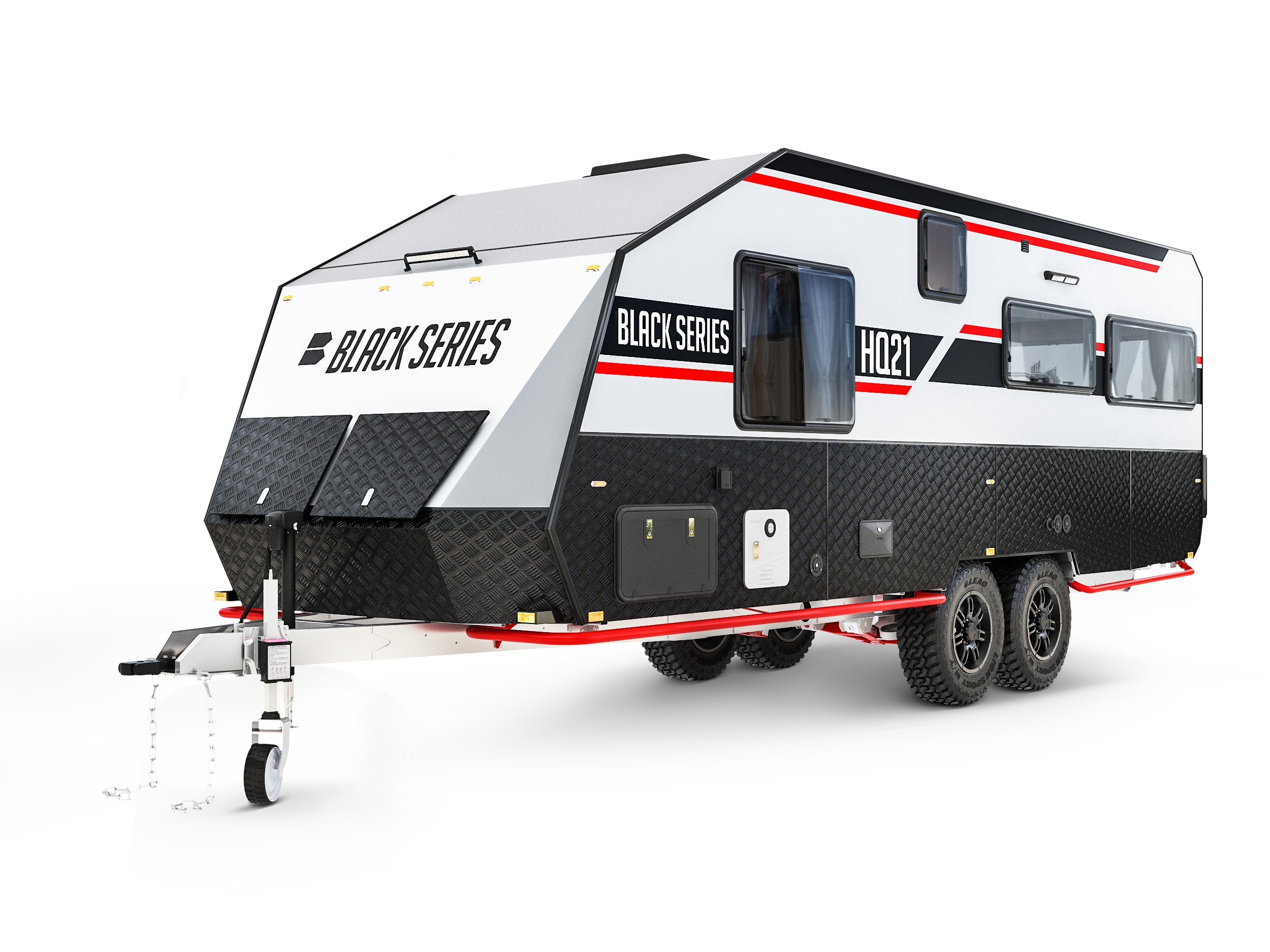

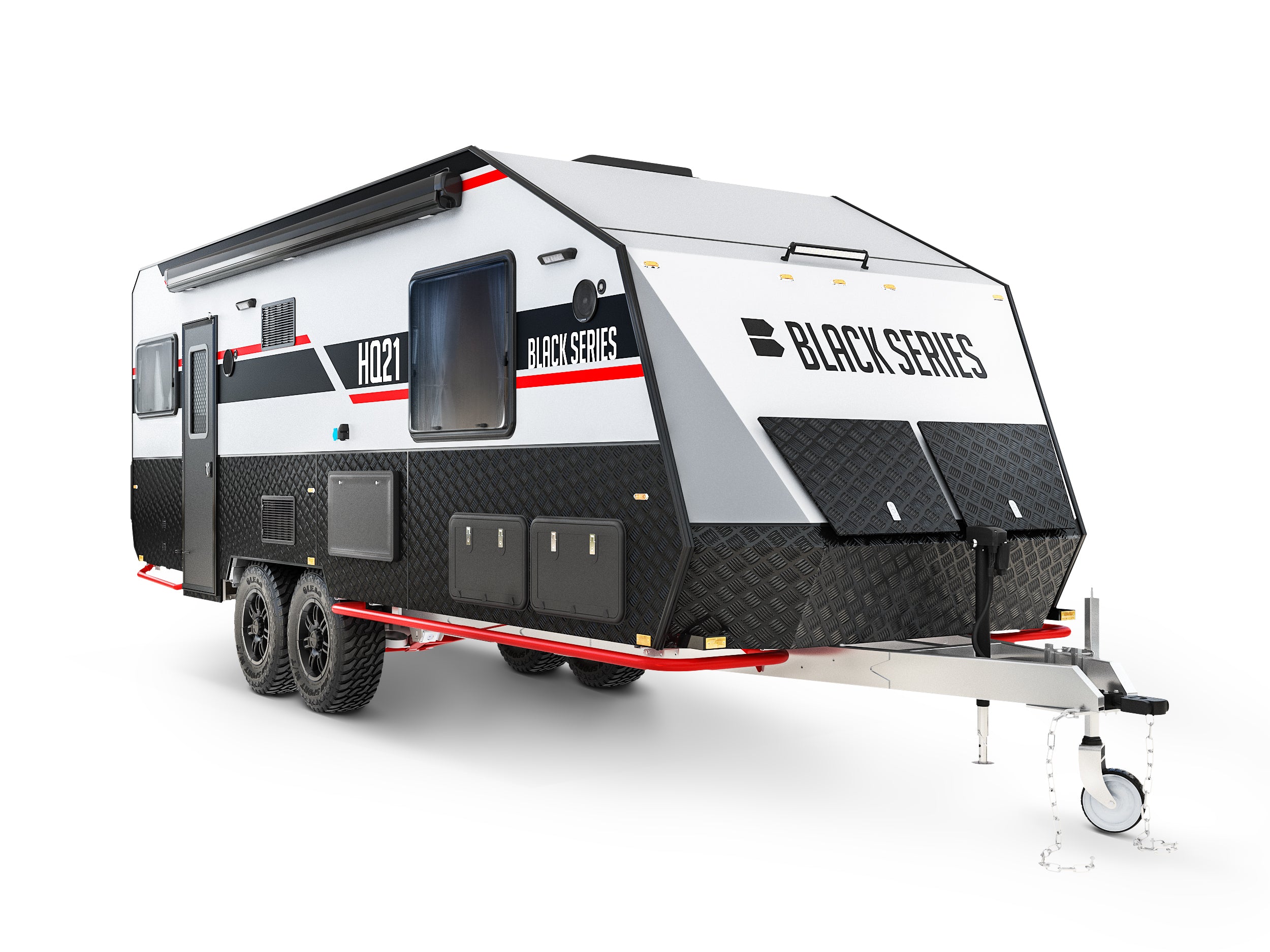

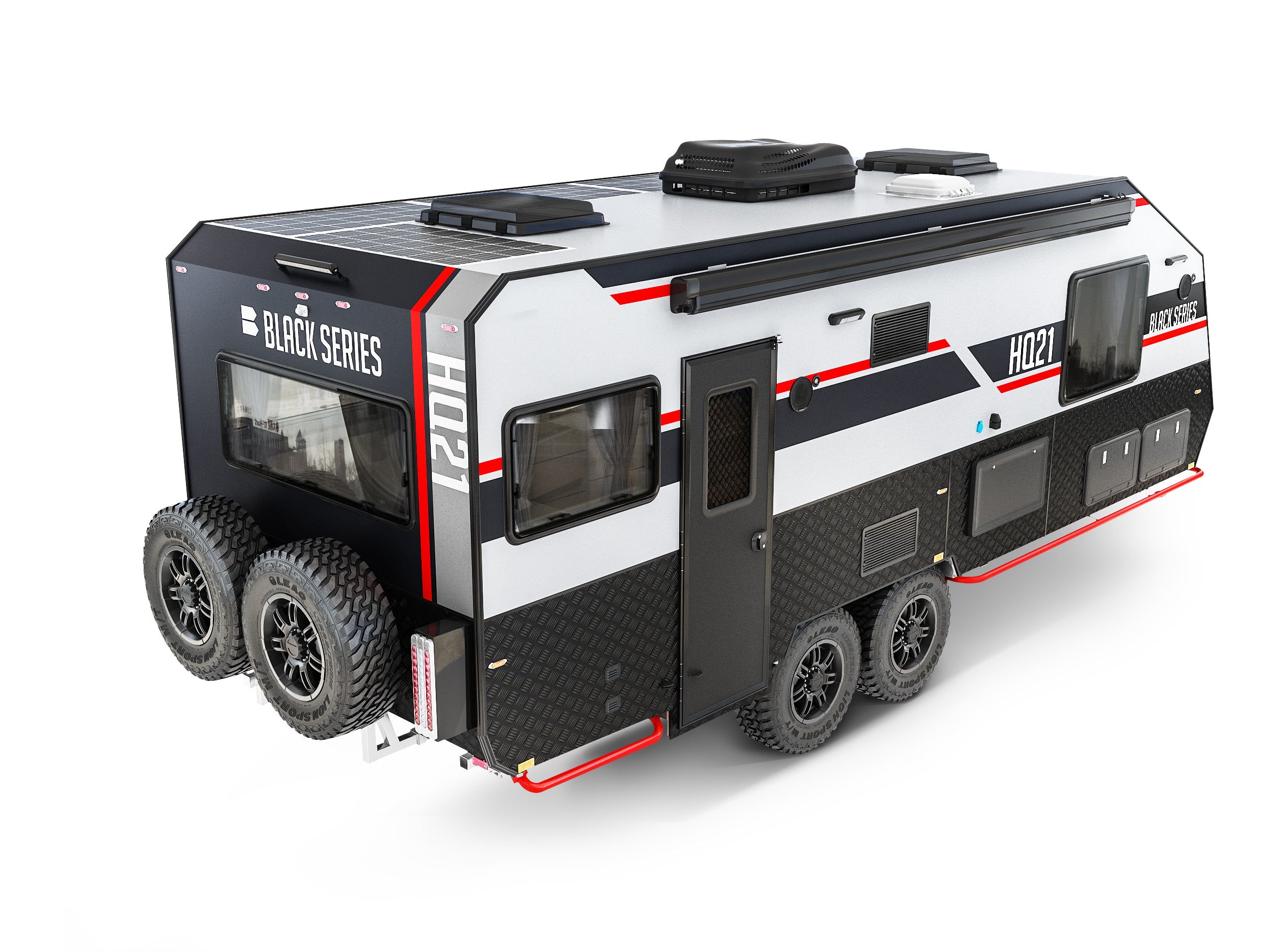

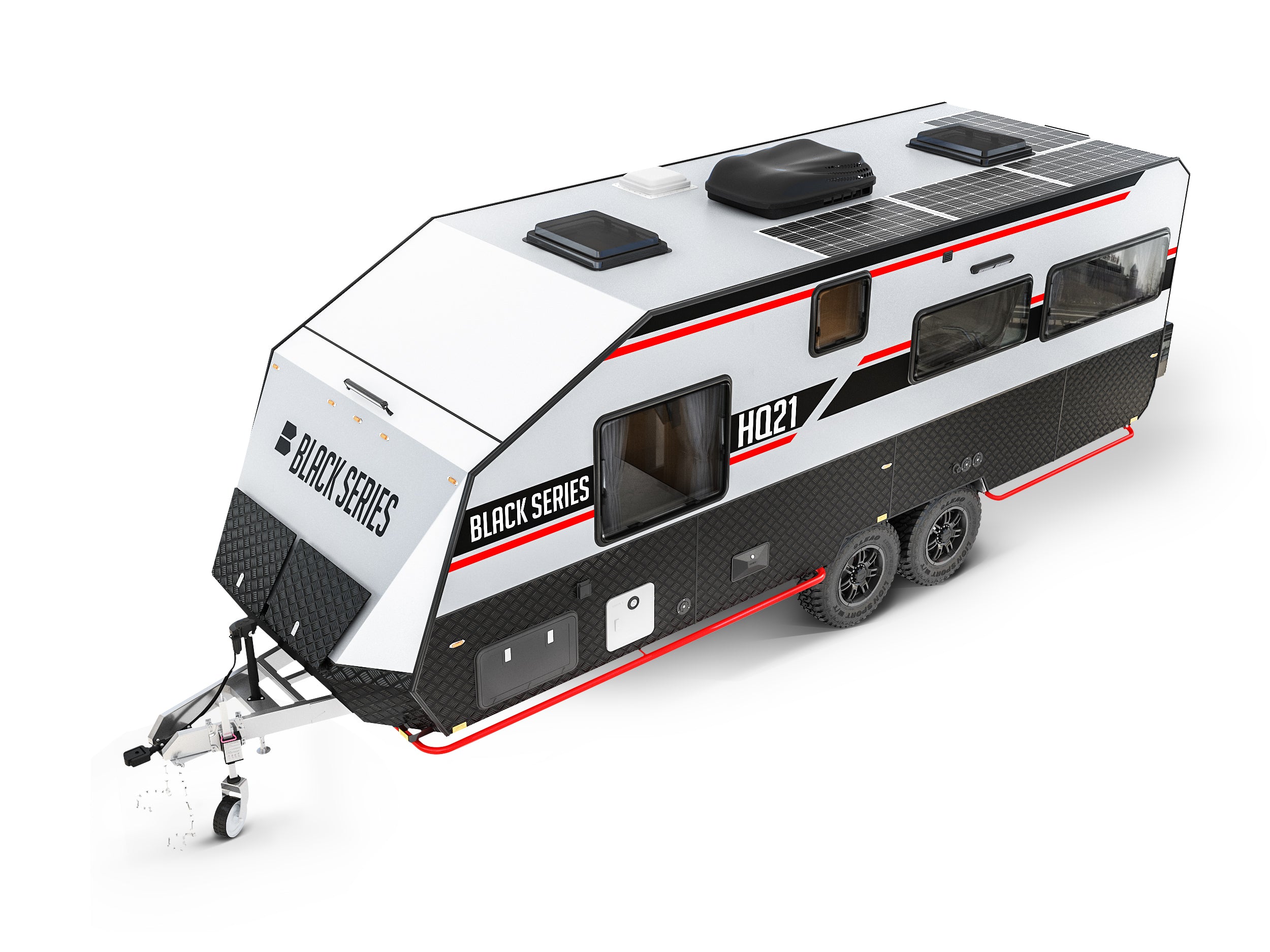

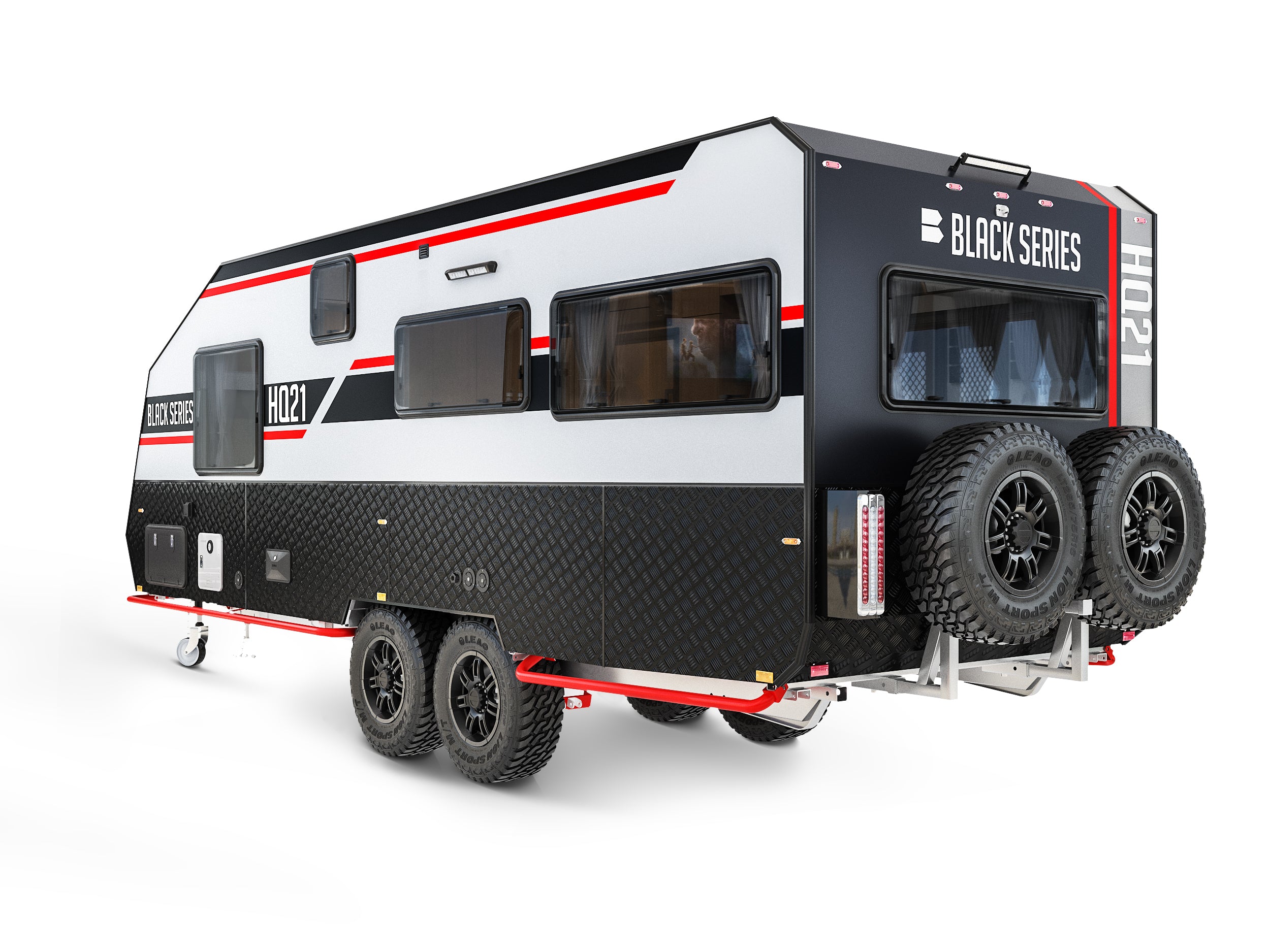

FLAGSHIP OFF-ROAD TRAILER
01 / EXTERIOR · 2027 BASE REFERENCE2027 BASE REFERENCE
FLAGSHIP OFF-ROAD TRAILER
The largest HQ cabin.
Built around two.
A 26 ft flagship trailer with a 21 ft interior, fixed queen bed, convertible lounge, private bathroom and full indoor/outdoor living systems.
BEST STARTING POINT FORTwo adults with room for guests
The larger cabin improves circulation, storage and separation while the lounge provides the additional published sleeping places.
SLEEPINGUp to 4
BATHROOMPrivate bathroom
INTERIOR21 ft
COOKINGInside + outside
4Published sleeps
26 ftOverall length
7,187 lbDry weight
10,000 lbGVWR
600 WRoof solar
63.4 galFresh water
2027 Base reference figures from the official guide (pages 3–4). Dry weight excludes cargo, water and travel supplies. Verify the selected unit and purchase build sheet.
01 / WHO IT FITS
Choose it for the way
you actually travel.
Couples who want the largest conventional HQ living space and room for occasional guests.
Convertible lounge adds capacity.
Privacy for longer stays.
Full-size HQ food capacity.
Check payload and tongue weight.
Current PDF omits capacities.
FLAGSHIP FOR TWO
Space around
the everyday routine.
The fixed queen, private bathroom and 21 ft interior create the most open conventional HQ layout.
- 21 ft cabin
- Private bathroom
- Dedicated queen bed
Think about: The larger body raises tow-vehicle and campsite requirements.

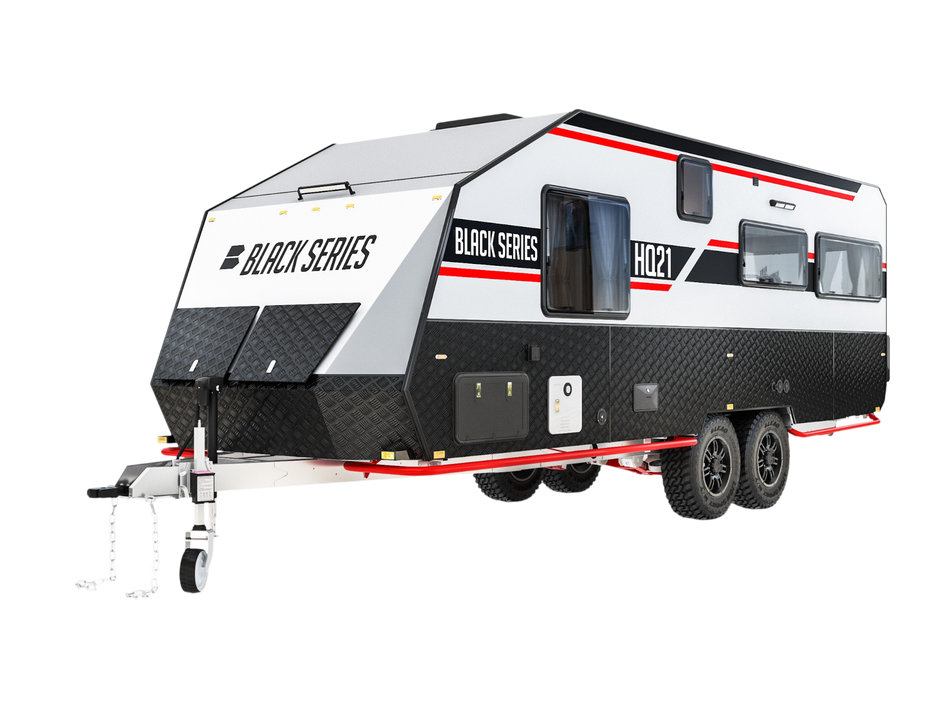

THE STANDARD HQ FLAGSHIP
More aisle.
More separation.
HQ21 is the largest conventional HQ layout. The value is cabin volume, a private bathroom and a lounge that can host guests while the main queen bed remains dedicated.
21 ftInterior length
4Published sleeps
400 AhBattery bank
02 / LIFE INSIDE
Every zone
earns its space.
Queen bed + convertible lounge. Separate private bathroom and shower.
WHAT MATTERS INSIDE
Fixed queen bedA dedicated sleeping space

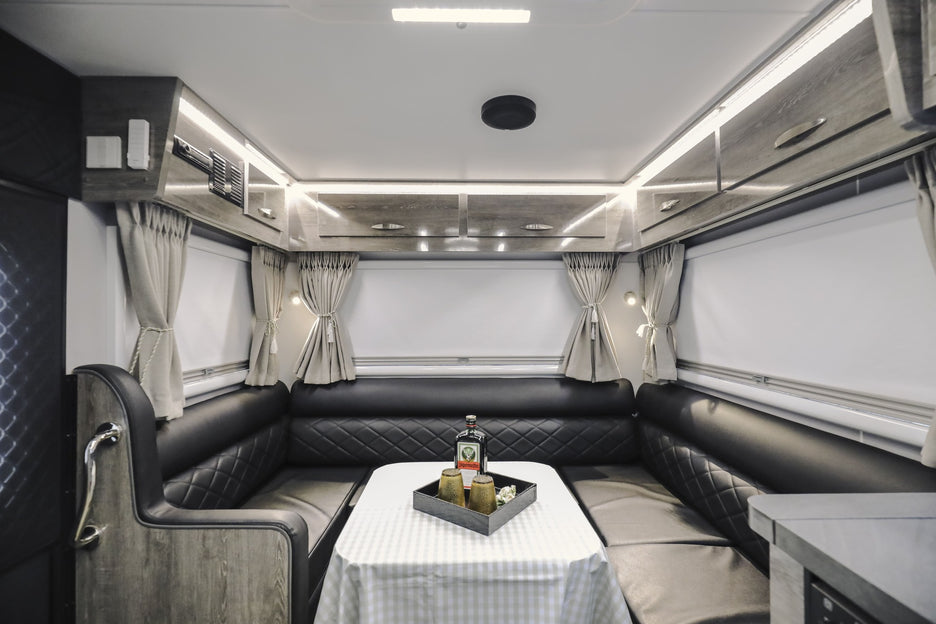

Wraparound loungeDining and relaxing together

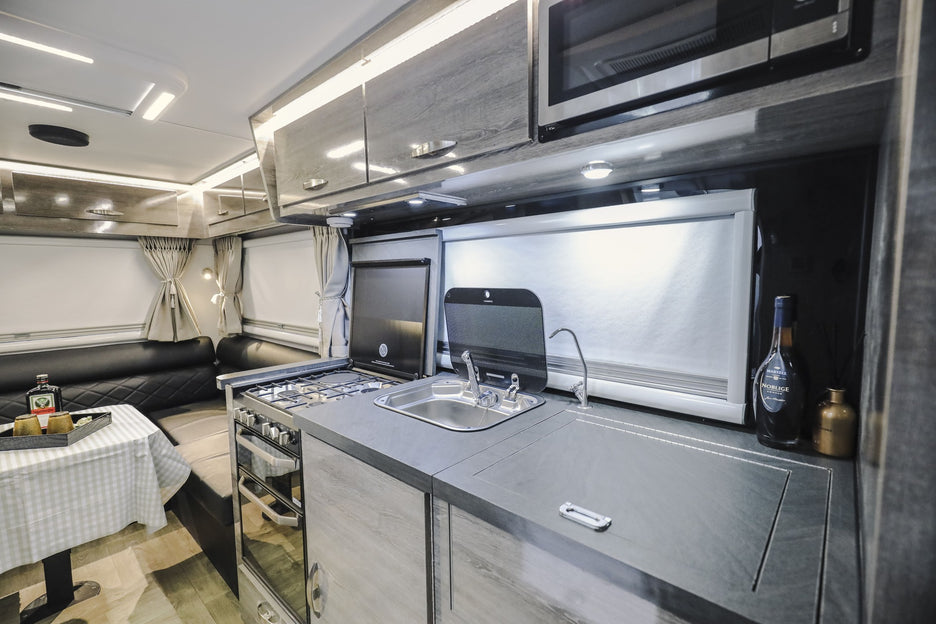

Indoor kitchenStove, sink and cabinet storage
Private bathroomVanity, toilet and separate shower
INTERACTIVE FLOOR PLAN
Bedroom
Fixed queen bed
Queen bed + convertible lounge. Review the published plan and confirm dimensions on the selected unit.
Fixed queen bed21 ft interior
Floor plans and finishes can change by production year and package.HQ21 / INDOOR KITCHEN
COMFORT SYSTEMS
Live inside.
Cook outside too.
Indoor and slide-out outdoor propane kitchens. The listed fridge/freezer (capacity to be confirmed), 16,000 BTU furnace and 13,500 BTU rooftop air conditioner define the everyday comfort envelope.
6cu ft fridge / freezer
2Cooking locations
4 m electricAwning
13,500BTU air conditioning
03 / 2027 BASE SYSTEMS
Know what supports
your stay.
Capacity helps only when matched to weather, group size, appliance load and water habits.
POWER ARCHITECTURE
600 W solar.
400 Ah / 4 × 100 Ah.
The listed system combines roof solar, onboard batteries and a pure sine inverter. Runtime depends on battery chemistry, sunlight and loads.
01 / COLLECT600 WRoof solar
→02 / STORE400 Ah / 4 × 100 AhListed battery bank
→03 / CONVERT2,000 WPure sine inverter
30 AShore powerConfirm voltageElectrical systemConfirm outletsDevice outlets

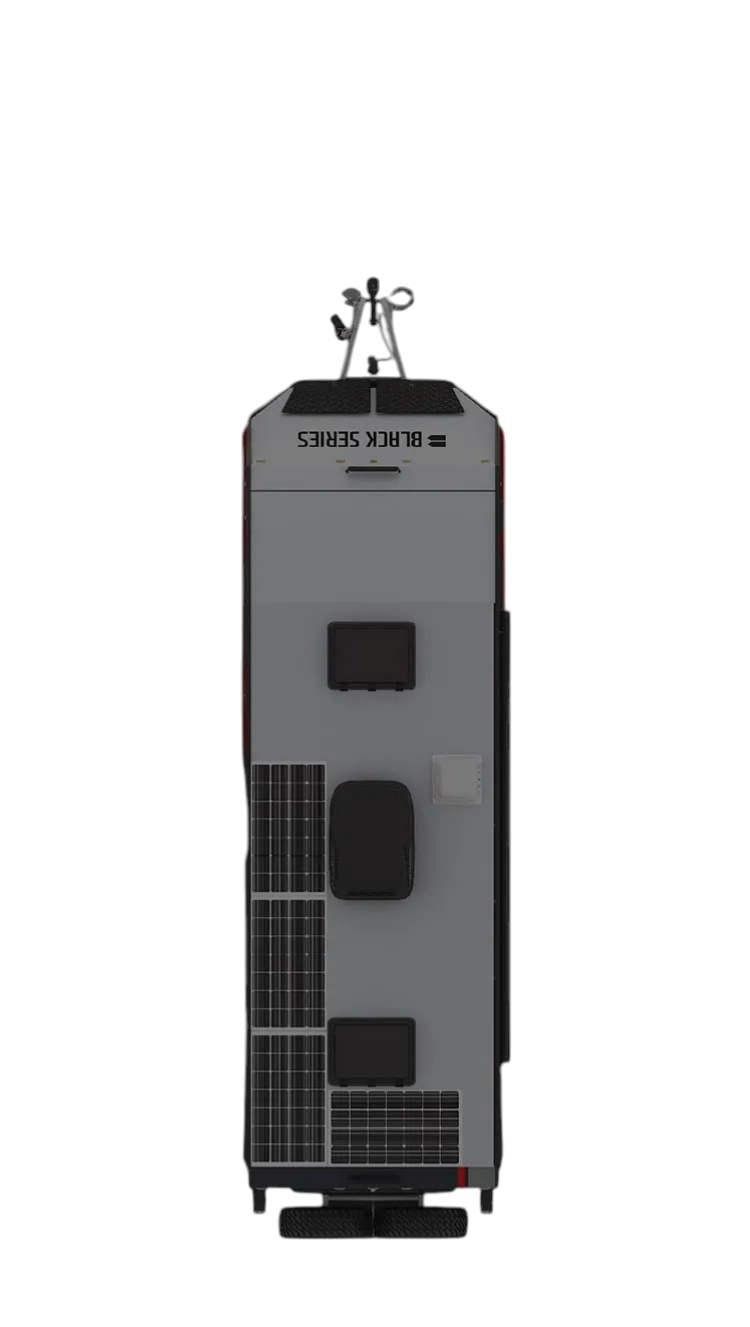

BUILT FOR THE ROAD BEYOND
The structure
under the finish.
START WITH THE NUMBERS
Match the vehicle
to the loaded trailer.
Published dry weight7,187 lb
GVWR / maximum loaded rating10,000 lb
Published tongue weight718 lb
04 / COMPLETE SPECIFICATION
Every decision point.
Easy to search.
2027 official PDF reference. Select an edition for its power and equipment package. Dimensions and weights are model-level references; confirm the actual build and VIN before purchase.
Published model specifications are not a certification of a particular Edition or VIN.
01Measurements & weights8 details
External length
26 ft
Internal length
21 ft
External width
Pending
External height
Pending
Internal height
Pending
Dry weight
7,187 lb
Tongue weight
718 lb
GVWR
10,000 lb
02Sleeping & interior5 details
Sleeps
4
Sleeping configuration
Pending
Bathroom
Separate private bathroom
Flooring
Pending
Cabinetry
Pending
03Kitchen & comfort7 details
Fridge
Pending
Stove
Pending
Microwave
Pending
Entertainment
Pending
Air conditioning
13,500 BTU air conditioner
Furnace
16,000 BTU furnace
Insulation
R16 insulation
04Power & water14 details
Total solar output
600W (4 × 150W)
Solar panel arrangement
4 × 150W
Battery bank total
400Ah lithium (4 × 100Ah)
Battery arrangement
4 × 100Ah
Battery chemistry
lithium
Inverter
2,000W pure sine wave
Charging system
Solar + 30A shore power
Shore power
30A, NEC-compliant, UL-listed components
Fresh water
63.4 gal
Filtered / drinking water
11.88 gal
Grey water
26.4 gal
Black water
26.4 gal
Hot water
instant hot water system
Toilet
Pending
05Chassis & exterior13 details
Drawbar / chassis
Pending
Suspension
Pending
Tires
Pending
Wheels
Pending
Brakes
Pending
Hitch
360° articulating off-road hitch (McHitch / DO35 style)
Connector
Pending
Anderson plug
Pending
Body materials
Pending
Windows
Pending
Roof
Pending
Awning
Pending
Recovery hooks
Pending
06Additional equipment2 details
Rangehood
Pending
Lighting
Pending
No matching specifications.
2027 figures use the dated Specifications & Pricing Guide. Undated equipment sheets require confirmation for the selected build.
Open official HQ21 PDF ↗FLAGSHIP OFF-ROAD TRAILER
Choose the layout
that solves your real trip.
Couples who want the largest conventional HQ living space and room for occasional guests. Match the trailer to the tow vehicle and verify the final build before ordering.
2027 model references; Edition-specific weights remain pending. Confirm the selected build and vehicle label. Official PDF, p. 3 ↗
