Black Series Off-Road Toy Haulers: TH19 & TH22

OFF-ROAD TOY HAULERS / TH19 + TH22

Haul the machines.
Live beyond the pavement.

Two garage-ready trailers built to move equipment, sleep six published occupants and support real camp life after the ramp closes.

Explore both models ↓ View available inventory ↗

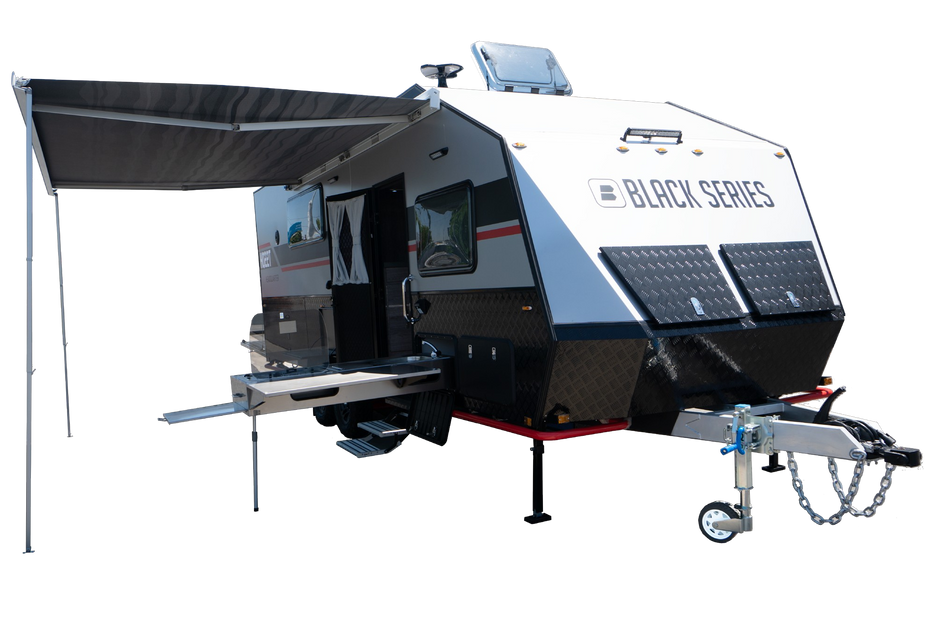

Black Series TH22 off-road toy hauler
TH22LARGER TANDEM-AXLE PLATFORM

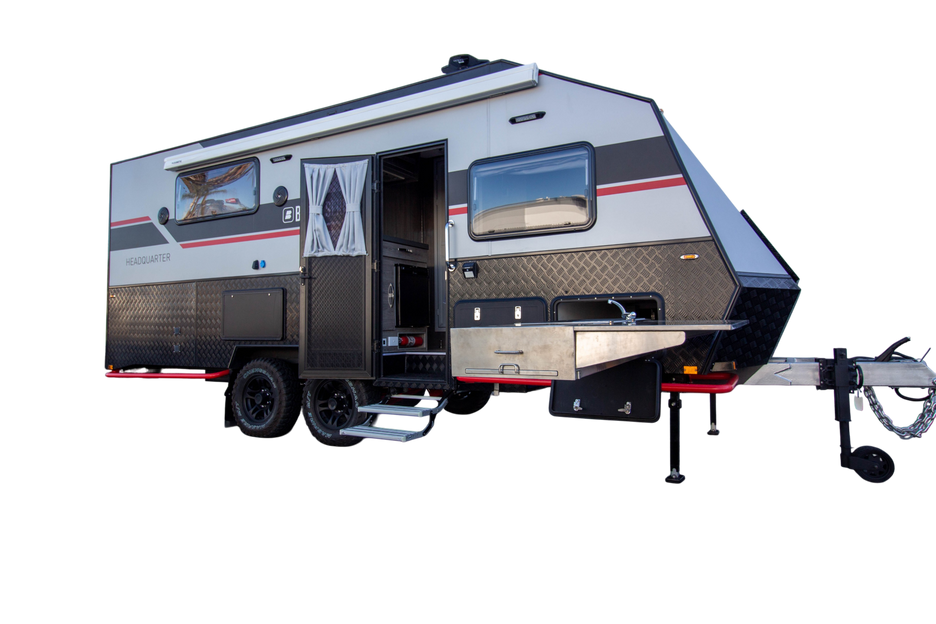

Black Series TH19 off-road toy hauler
TH19SHORTER GARAGE-READY PLATFORM
016PUBLISHED SLEEPS
02600 WROOF SOLAR
0310,000 lbGVWR
04Inside + outsideCOOKING

GARAGE BY DAY / BASECAMP BY NIGHT

Bring the gear.
Keep the camp.

A toy hauler has two jobs. It has to carry machines safely, then become a usable place to cook, wash, sleep and recover once the cargo is outside.

TH19 favors a shorter footprint. TH22 adds more interior length, width and a tandem-axle layout for buyers whose equipment needs more room.

01 / CHOOSE THE FOOTPRINT

Same mission.
Different scale.

Start with the machines you actually carry. Measure overall length, width, height, ramp opening and interior obstacles before choosing the trailer.

SHORTER FOOTPRINTBlack Series TH19 exterior

TH19

COMPACT OFF-ROAD
TOY HAULER

A shorter 22.3 ft overall package with a 19 ft interior, garage-ready diamond-plate flooring, queen bed, four bunks and wet bath.

22.3 ftOVERALL LENGTH
6,172 lbDRY WEIGHT
900 lbTONGUE WEIGHT
19 ftINTERIOR LENGTH
6PUBLISHED SLEEPS
64 galFRESH WATER
BEST STARTING POINT

Riding crews and families who need a garage-ready layout while keeping overall length more manageable.

Explore TH19 ↗
LARGER CARGO ENVELOPEBlack Series TH22 exterior

TH22

TANDEM-AXLE OFF-ROAD
TOY HAULER

A 28.2 ft overall tandem-axle platform with a 22 ft interior and 8 ft exterior width for larger toys, more aisle room and longer camp conversion.

28.2 ftOVERALL LENGTH
6,847 lbDRY WEIGHT
900 lbTONGUE WEIGHT
22 ftINTERIOR LENGTH
6PUBLISHED SLEEPS
64 galFRESH WATER
BEST STARTING POINT

Buyers whose machines, camp setup or movement around the cargo need more length and width than TH19.

Explore TH22 ↗
Decision pointTH19TH22
Primary advantageShorter overall footprintMore interior length and width
Sleeping layoutQueen + four bunksQueen + four bunks
BathroomFull fiberglass wet bathConfirm full/wet configuration on build sheet
Garage floorAluminum diamond plateAluminum diamond plate
Power baseline600 W solar · 2,000 W inverter600 W solar · 2,000 W inverter
Running gearVerify selected unitTandem-axle layout

Published base-model figures. Dry weight excludes cargo, water and travel supplies. Equipment and production specifications can change; confirm the selected unit and final build sheet.

02 / LIFE AFTER UNLOADING

Clear the garage.
Reset the room.

Both models combine cargo function with six published sleeping places, indoor and outdoor cooking, climate control and practical washroom facilities.

TH19 toy hauler interior
TH19 / INTERIORA shorter layout designed around cargo conversion, queen bed, four bunks and the daily essentials for a six-person crew.

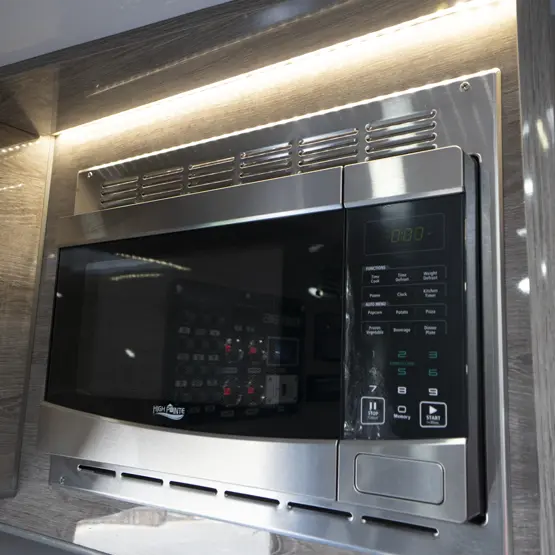

TH22 toy hauler interior
TH22 / INTERIORThe longer and wider interior gives larger equipment more room and leaves more space to move once camp is set.
01 / SLEEP

Queen + four bunks

Six published sleeping places; verify dimensions for every traveler.

02 / COOK

Inside + outside

Interior propane kitchen plus slide-out sink, burner and preparation surface.

03 / CLIMATE

Heat + air

Listed 16,000 BTU furnace and 13,500 BTU rooftop air conditioner.

04 / CAMP

Awning + shower

Retractable awning, exterior shower, exterior lighting and storage.

03 / OFF-GRID + OFF-ROAD SYSTEMS

Support the stay.
Protect the route.

Capacity matters only when it is matched to weather, appliance load, group size, cargo and water use. Plan the entire trip, not one headline number.

BASE-MODEL POWER ARCHITECTURE

Collect. Store. Convert.

The published system combines roof solar, onboard batteries, inverter power, shore power and 12V/USB outlets. Confirm battery chemistry and capacity on the selected unit.

01 / COLLECT600 W4 × 150 W roof solar
→
02 / STOREBuild sheetConfirm fitted battery bank
→
03 / CONVERT2,000 WPure sine inverter
64 galFRESH WATER
16 galFILTERED WATER
26 galGREY WATER
26 galBLACK WATER
TH22 off-road toy hauler with exterior systems visibleTH22 / REPRESENTATIVE EXTERIOR SYSTEMS
TH19 off-road toy hauler construction view

BUILT FOR THE ROAD BEYOND

The structure under the finish.

  • Hot-dip galvanized tubular-steel chassis
  • Independent control-arm suspension with coils and dual shocks
  • Off-road tires, electric brakes and breakaway system
  • ADR-approved articulating poly-block hitch
  • Composite body panels with diamond-plate lower protection
  • R16 roof and wall insulation
Open towing calculator ↗

04 / MAKE THE DECISION

Measure first.
Choose with confidence.

The right toy hauler is the one that fits the equipment, the tow vehicle and the way the crew uses camp after unloading.

01 / MACHINE FIT

Measure every toy.

Record length, width, height, wheelbase and loaded weight. Confirm ramp opening, interior obstacles and tie-down locations.

02 / PAYLOAD

Plan the loaded trailer.

Dry weight excludes machines, water, food and supplies. Compare the final load with GVWR and available payload.

03 / TOW MATCH

Check the whole vehicle.

Use tow rating, payload, axle ratings, hitch rating and measured loaded tongue weight. Dry weight alone is not a tow match.

04 / CAMP MODE

Picture the reset.

Decide where cargo goes after unloading, how beds convert and whether the crew has enough aisle, food and water capacity.

QUICK POSITIONING GUIDE

Which footprint starts closer?

TH19 / SHORTER PLATFORM

Keep the footprint tighter.

Start with TH19 when a 22.3 ft overall trailer and 19 ft interior can fit the machines and crew. It is the more compact choice of the pair.

View TH19 ↗

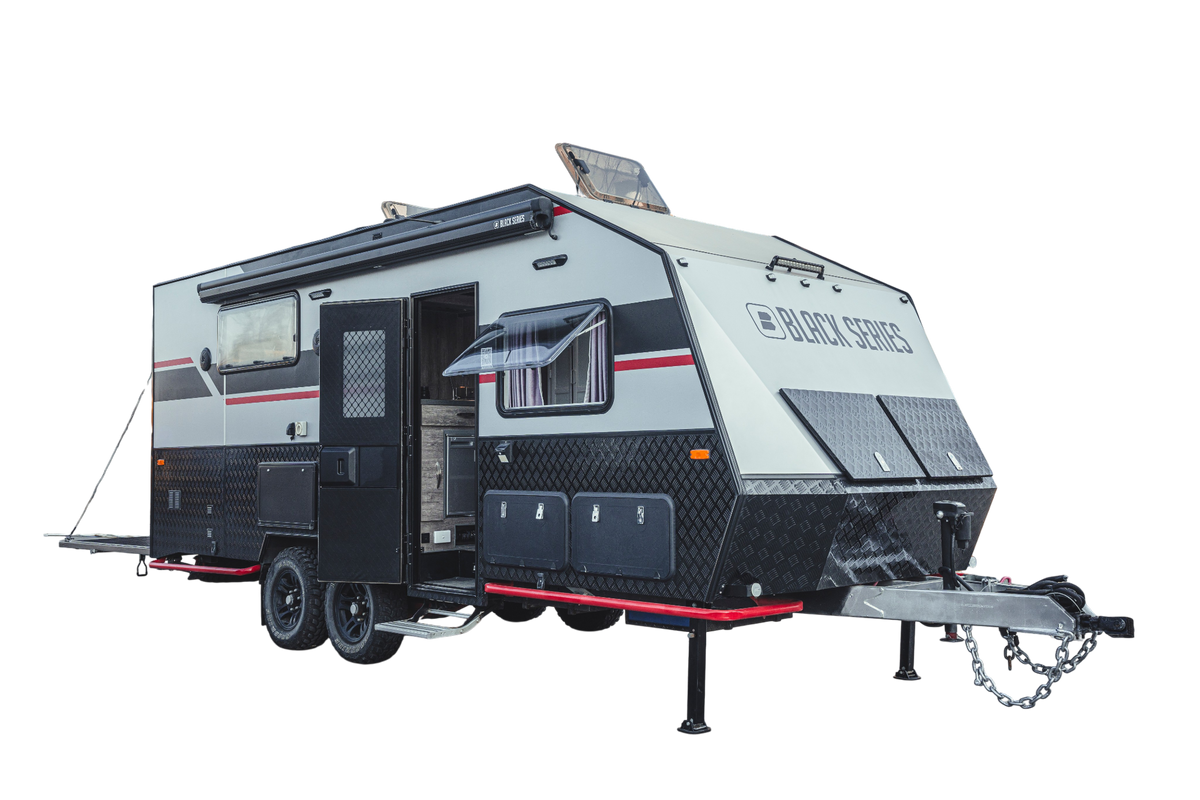

Black Series TH19

TH22 / LARGER PLATFORM

Give the cargo more room.

Start with TH22 when the machines need a 22 ft interior, 8 ft exterior width and the longer tandem-axle footprint.

View TH22 ↗

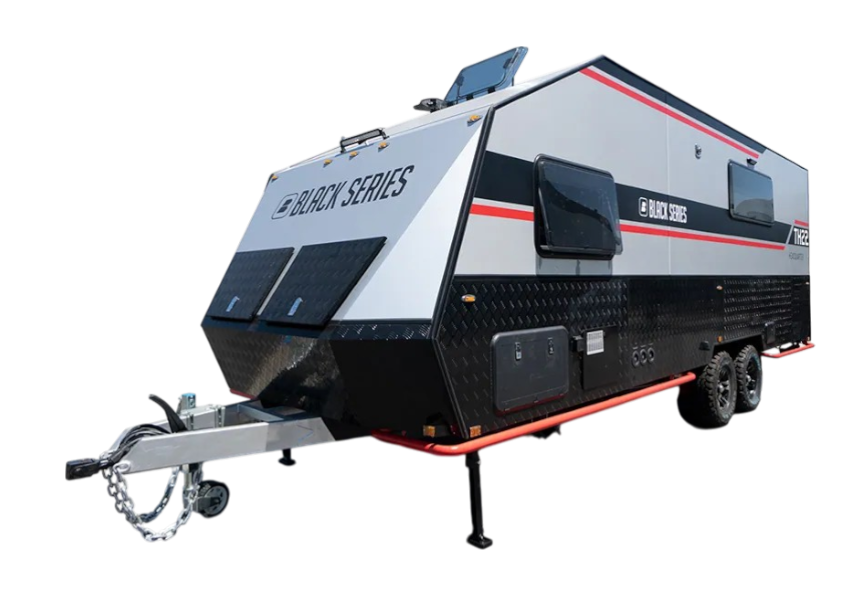

Black Series TH22
Which model is more compact?

TH19 is the shorter option: 22.3 ft overall with a 19 ft interior. TH22 is 28.2 ft overall with a 22 ft interior and 8 ft exterior width.

How many people can the toy haulers sleep?

Both product pages publish sleeping for six with a queen bed and four bunks. Confirm bed dimensions and the current floor plan for your travelers.

Can I choose from dry weight alone?

No. Add machines, water, propane, batteries, food and travel gear. Match the loaded trailer to tow rating, vehicle payload, axle limits, hitch rating and measured tongue weight.

What should I confirm before ordering?

Confirm cargo and ramp dimensions, tie-down locations and ratings, payload, battery bank, bathroom configuration, current floor plan and every item on the final purchase build sheet.

THE NEXT STEP

Fit the machines.
Then fit the trip.

Compare the two layouts, match the fully loaded trailer to the tow vehicle and inspect current inventory before choosing a build.
