Black Series

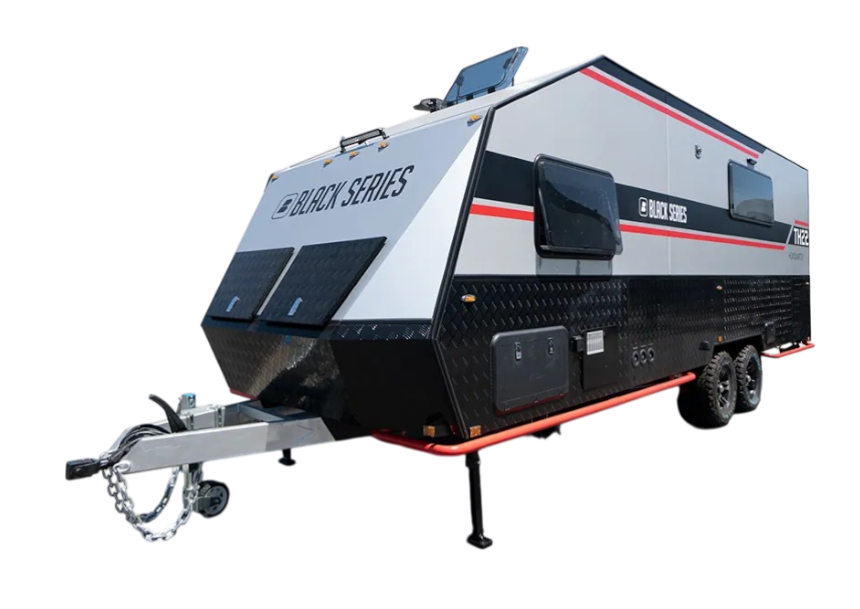

TH22
Off-road toy hauler with queen bed, four bunk beds, wet bath, garage-ready flooring, indoor and outdoor kitchen systems, solar power, water systems, and Black Series chassis configuration.
6
Sleeps
19ft
Internal Length
6,503lbs
Dry Weight
600W
Solar
Measurements
Internal Height6.9ft
Internal Length19ft
External Height10.5ft
External Length28.2ft
External Width8ft
Dry Weight6,503lbs
Tongue Weight900lbs
GVWR10000lbs
Interior

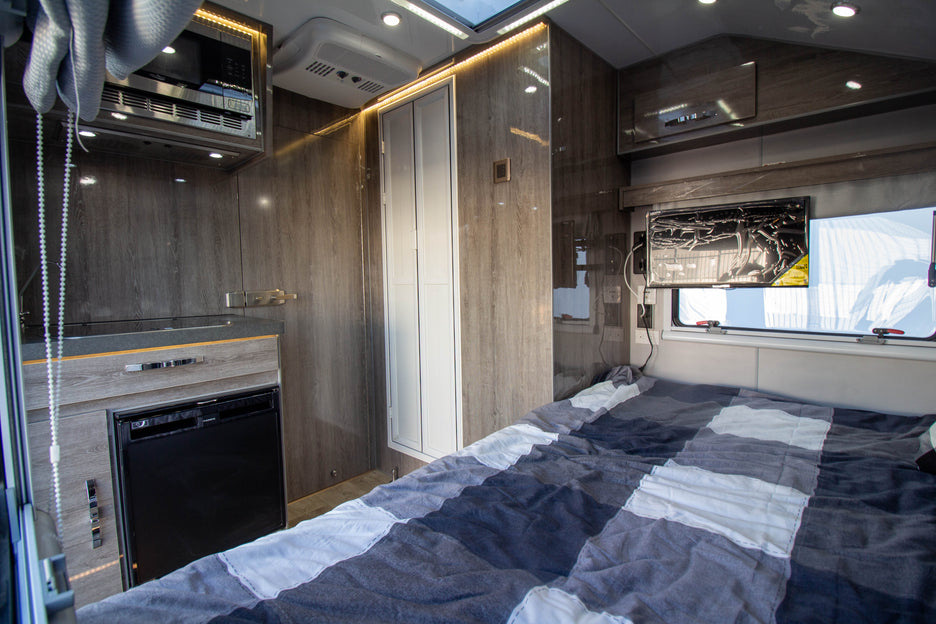

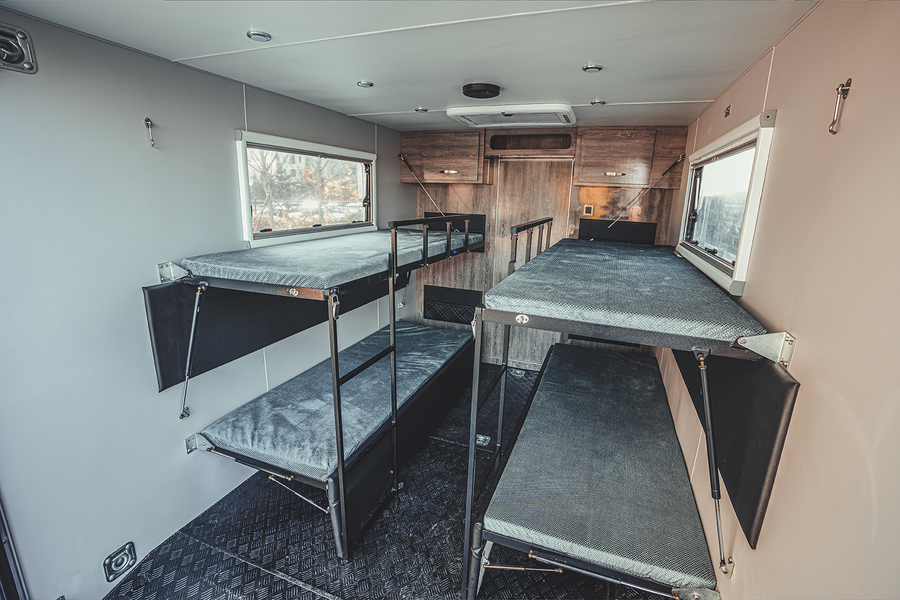

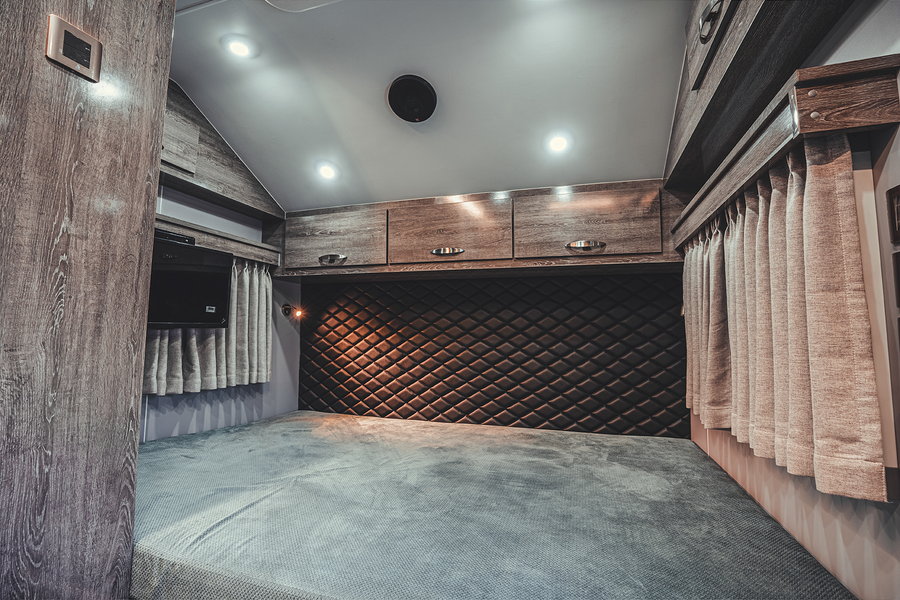

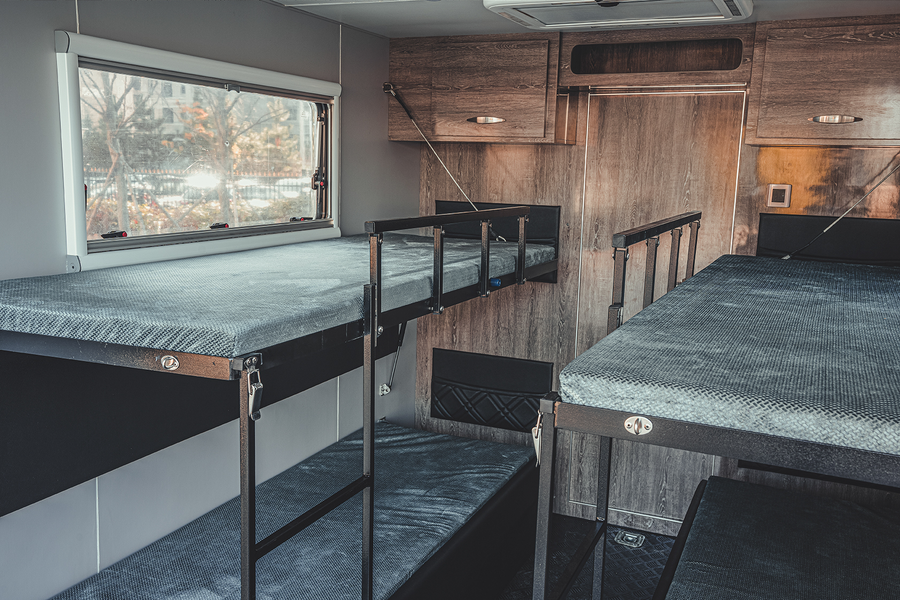

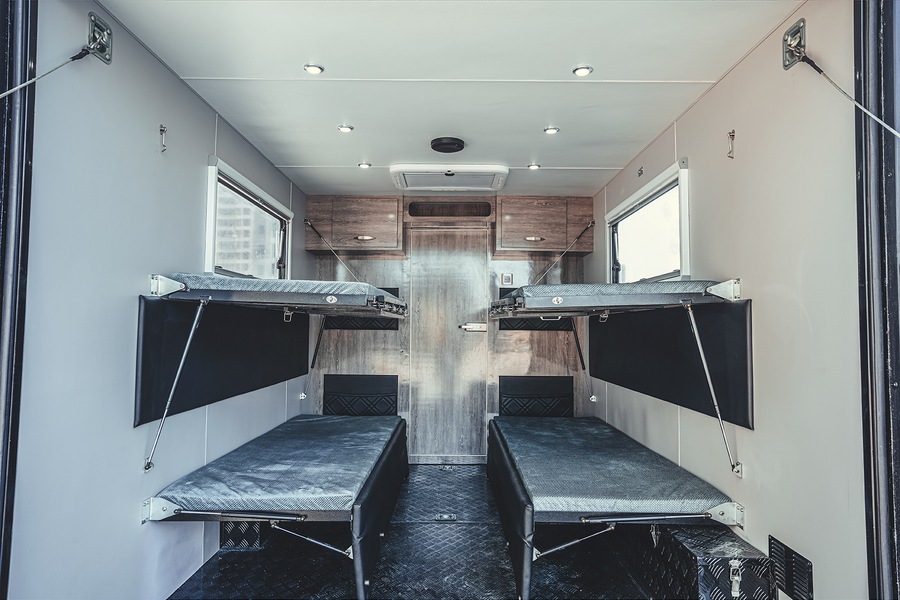

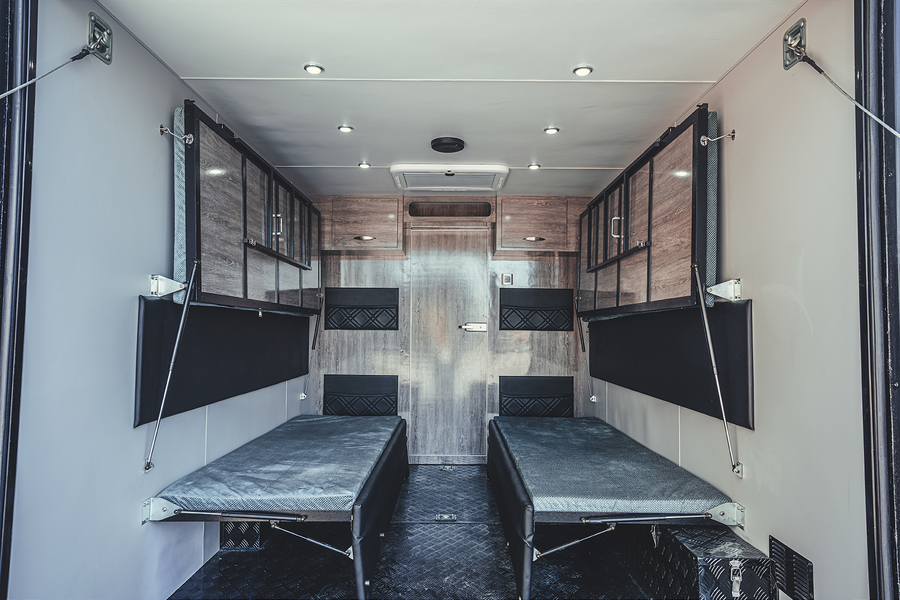

Sleeping Configuration1x Queen Bed and 4x Bunk Beds
BacksplashGrey Acrylic Full Height Splashback

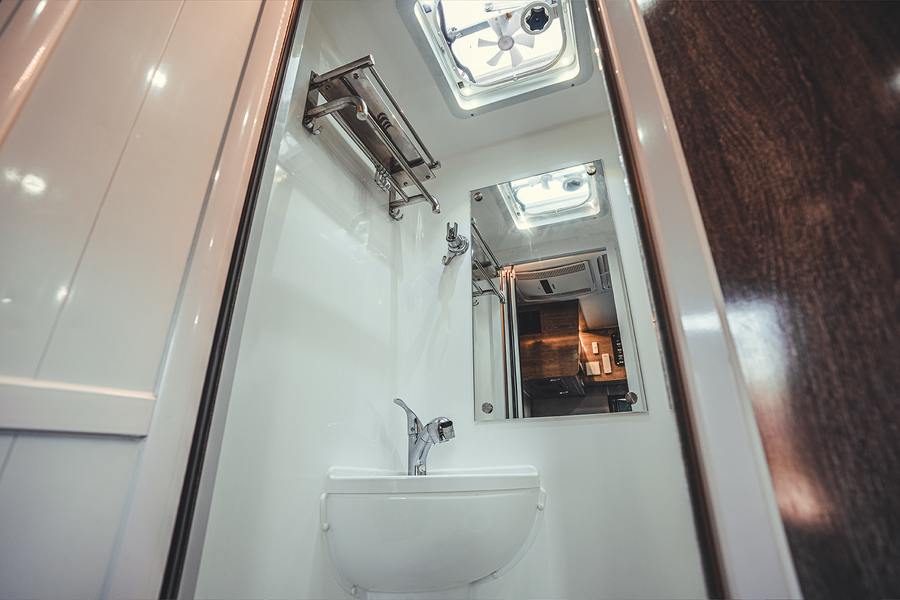

Wet BathFull Fiberglass shower enclosed with ventilation and Toilet

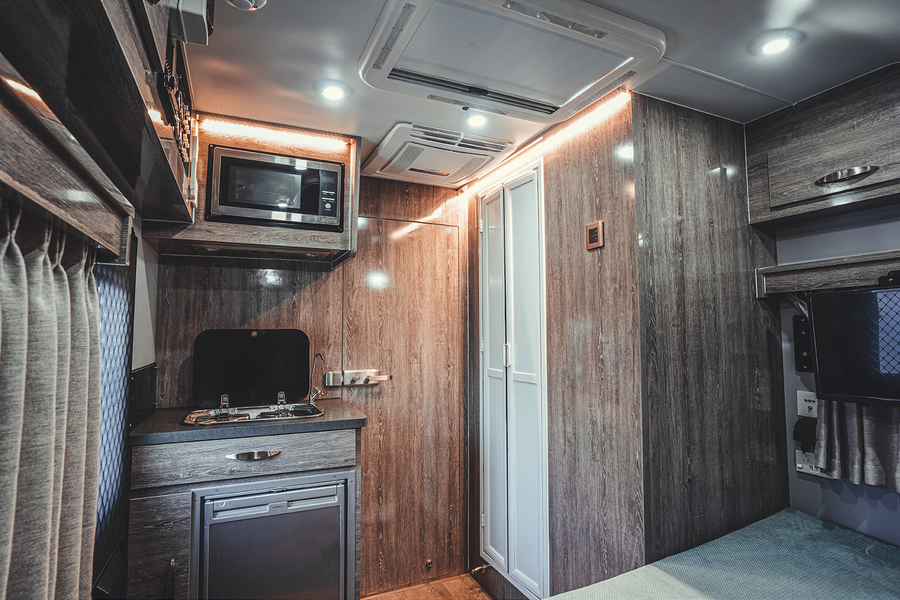

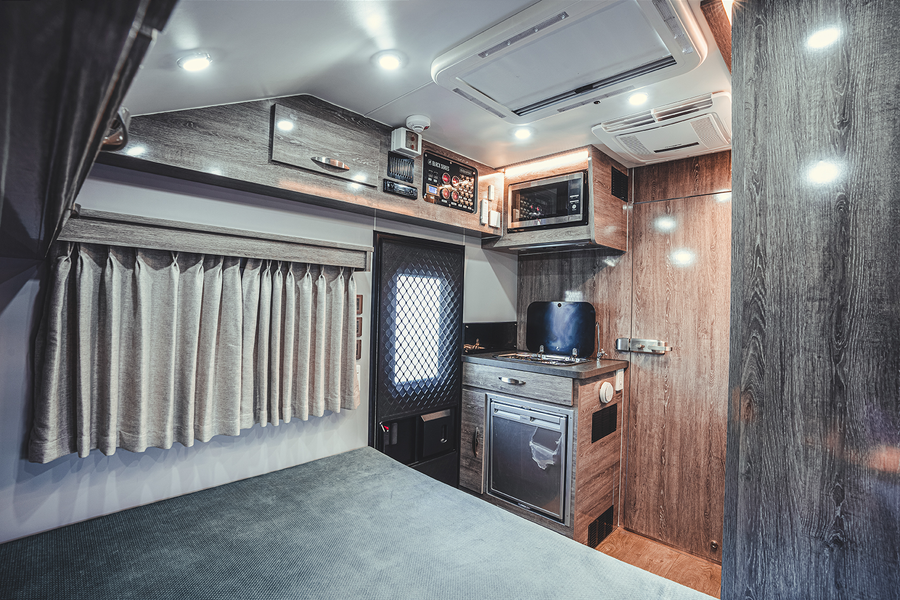

KitchenPropane Stove with Cover for Preparation Area

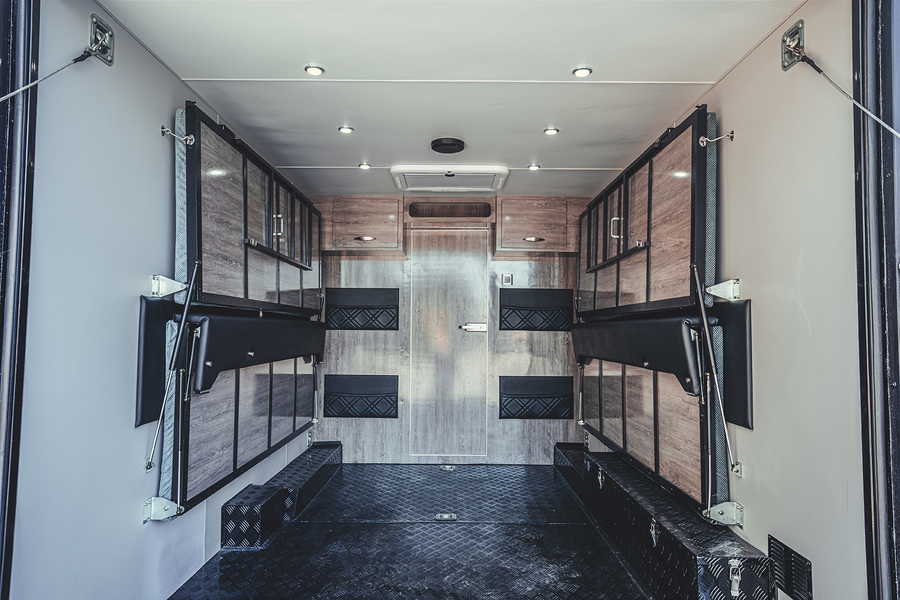

FlooringWood Vinyl Living Area and Aluminum Diamond Plating Flooring in Garage
CabinetryModern 5-Star Timber Finish Veneer; all cabinetry comes equipped with gas strut supports with push open travel-safe locks and soft close drawers
LeatherPremium Leather with a 5-Star Finish

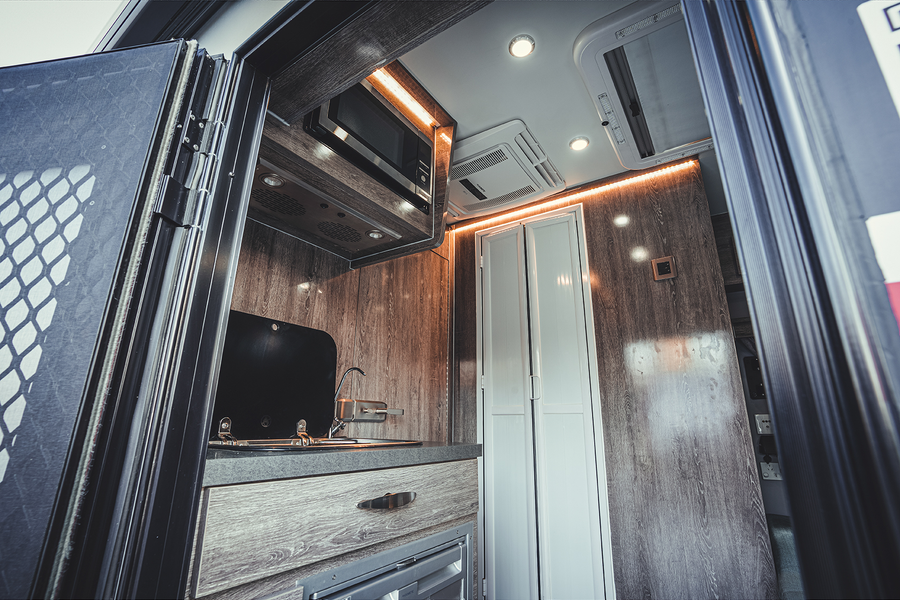

Screen DoorTri-Lock Security Door with locking Fly Screen
Exterior
MaterialsAluminum Composite Panels with added Aluminum Diamond Plating for added strength
Stone Guard / Skid GuardAdds Protection for Bottom Edge of Camper
InsulationSpray Foam R16 Insulation on Full Roof and Walls
RoofOne Piece Aluminum and Roof Hatch with Shade
WindowsEurovision Windows with Fly Screen and Privacy Shades

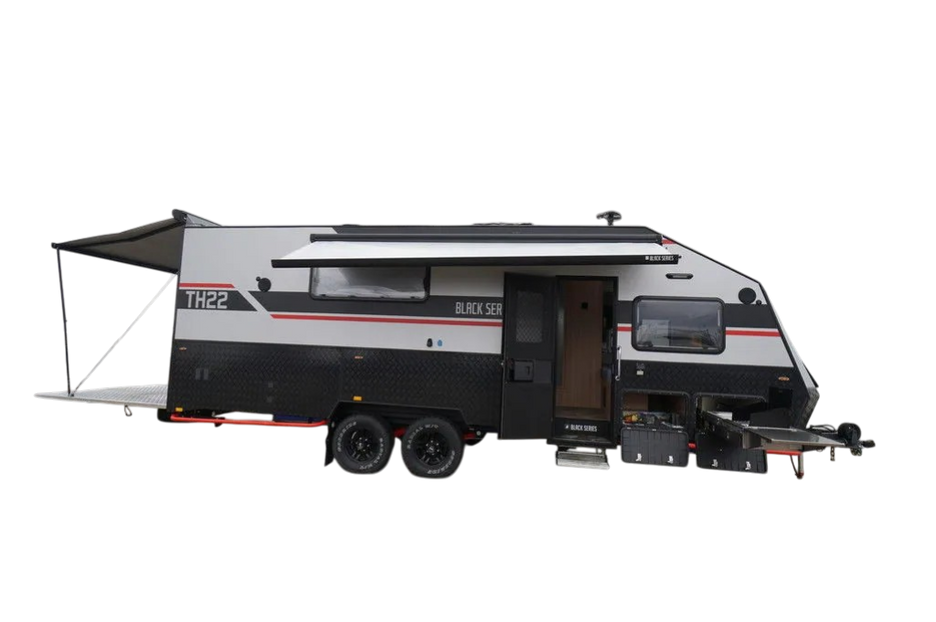

AwningPremium Retractable Awning
StorageLarge Pass-Through Storage; Front Storage for 2x Jerry Cans & 2x Propane Tanks
Prep-TableLockable Fold Down Outdoor Table
Outdoor KitchenStainless Steel Slide Out Sink, Propane Burner Stove and Large Prep-Table
ShowerOutdoor Shower
Appliances / Accessories
Fridge2.6 cu. ft. Fridge/Freezer
StoveGuardOutdoor and Indoor Propane Stove
RangehoodSlim Twin Fan with Light Range Hood

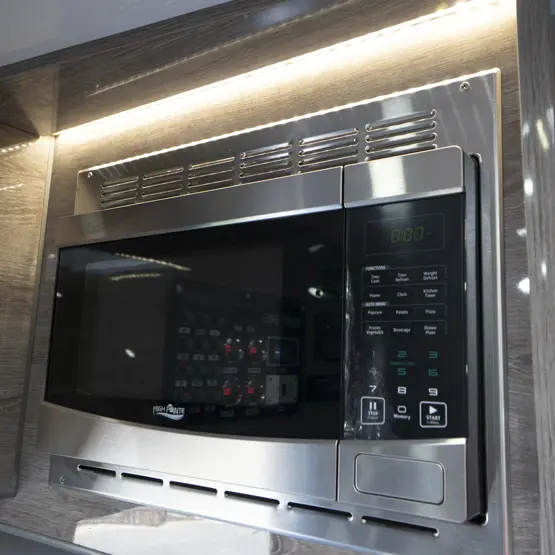

Microwave6 Gal. Electrical Microwave with Four Operating Features
Furnace16,00 BTU Thermostat Control
Air Conditioning13,500 BTU Rooftop Air Conditioning Unit
Entertainment SystemCD/FM/IPOD/Bluetooth/USB Radio, 2x Interior Speakers, 2x Outdoor Marine Grade Speakers, 24" TV with DVD Function
AntennaHD TV over the air antenna with built in sure-lock
SafetyFire Extinguisher, Smoke Alarm and Propane/CO Detector
Plumbing
ShowerOutdoor Shower & Interior Full Fiberglass Shower
SinkLarge Interior Stainless Steel Sink and Outdoor Stainless Steel Drip Sink
ToiletPorcelain Toilet
Filtered Water16 Gal. Triple Filtered System
Fresh Water64 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Grey Water26 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Black Water26 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Hot WaterHot Water System
Electrical
Electrical System12V/110V Electrical System with 2,000 Watts Black Series Pure Sine Wave Inverter with a custom Black Series Camper, Inc. Control Panel.
Battery2x 100AH
Solar4x Roof Mounted 150 Watt Solar Panels
Internal LightingLED Reading Lights in Bedroom and Lounge
External LightingWide Angle Side mounted LED Flood Lights Front & Rear LED Light Bar
PlugsInternal/External 12V USB Plugs
Shore Power30Amps Service

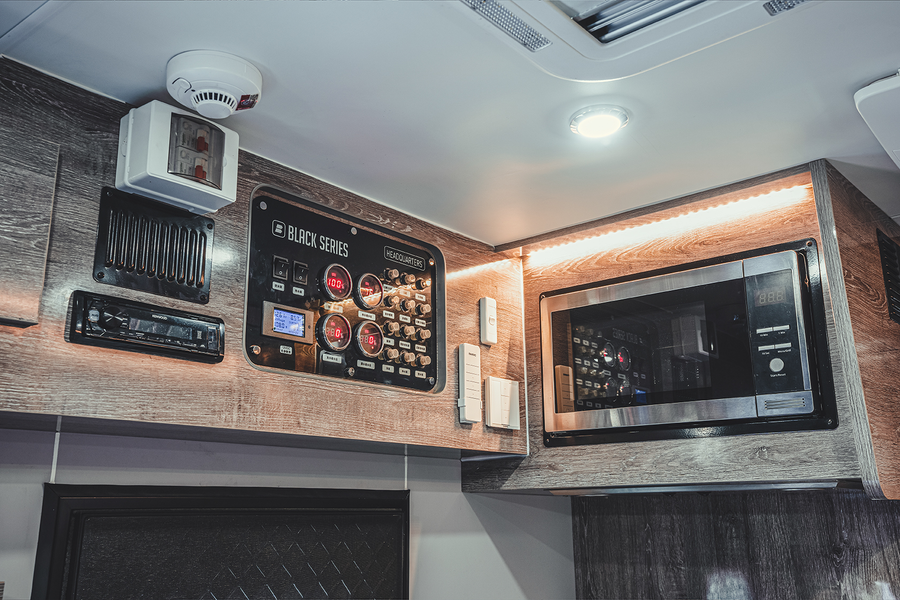

Control PanelBreakers, Digital Gages, & Electrical Power Readout
Chassis
Drawbar / ChassisHot Dipped Galvanized Tubular Steel made from RHS 4"x2", 0.15 Wall Thickness, 0.24" Supporting Plates for extra Strength & Durability
Independent SuspensionControl Arm with Dual Shock Absorbers and Coil Springs
Tires235x75xR15 Off-Road Tires with Two Spare Tires
Wheels15" Alloy Wheels with a Black Powder Coated Finish
Brakes12" Electric Tow Brake with Mechanical Handbrake Breakaway System Include 2x Safety Chains
Connector7 Pin Flat Plug
Anderson Plug50Amp Anderson Plug
HitchBlack Series Camper, Inc. ADR Approved Off-Road Poly Block Hitch
Recovery Hooks2x Rear Facing Recovery Shackles
TH22 Sleeps 6 | Dry Weight 6,503 lbs
Built for rugged adventures with an independent suspension featuring dual shock absorbers, a hot-dipped galvanized steel chassis, 16″ off-road tires, and a stone guard. It sleeps up to 6 with a queen bed and a convertible lounge, all finished with premium faux leather and modern timber finish cabinetry.
Designed for off-grid freedom with a 31.7 gal fresh water tank, 13.2 gal grey and 13.2 gal black water tanks, an instant hot water system, and a convenient full fiberglass wet bath.
A powerful off-grid electrical system keeps you running with a 2,000W Pure Sine Wave Inverter, dual 100Ah batteries, and two 150W
Dimensions & Weight
- External Dimensions (Closed): 8.3 ft height; 20 ft length; 7.3 ft width.
- External Dimensions (Open): 9.8 ft height; 20 ft length; 7.3 ft width.
- Weight Details: Dry Weight: 3,924 lbs; Tongue Weight: 462 lbs; GVWR: 6,000 lbs.
Appliances & Accessories
- Equipped with a 1.8 cu. ft. Dometic fridge/freezer, an outdoor and indoor propane stove, a microwave, a 16,000 BTU furnace, and a 13,500 BTU rooftop air conditioning unit.
- Entertainment System: Includes a CD/FM/iPod/Bluetooth/USB Radio with 2x interior and 2x outdoor speakers, plus a 24″ SMART TV with an HD antenna.
Plumbing & Sanitation
- Wet Bath: Features a full fiberglass shower with ventilation and a toilet.
- Water Systems: 31.7-gallon fresh water tank, 13.2-gallon grey water tank, 13.2-gallon black water tank, and an instant hot water system.
Interior & Furnishings
- Configuration: Sleeps 3 with one Queen Bed and a convertible lounge.
- Kitchen & Dining: Includes an internal sink, propane stove, microwave, and fridge, with a dinette featuring premium faux leather seating.
- Finishes: Modern timber finish veneer cabinetry, wood vinyl flooring, and a tri-lock security door with a locking fly screen.
Exterior Design & Storage
- Materials: Built with an aluminum composite body with added aluminum diamond plating and a Stone Guard for protection. The roof and walls are insulated with Spray Foam R16 Insulation.
- Outdoor Features: Includes a large pass-through storage area, front storage for 2x Jerry Cans & 2x Propane Tanks, an electrical awning, an outdoor shower, and a stainless steel slide-out kitchen with a sink, propane burner, and prep table.
Chassis & Suspension
- Chassis: Built on a hot-dipped galvanized tubular steel frame. It features a robust independent suspension with dual shock absorbers and coil springs.
- Tires & Wheels: Comes with 265/75R16 off-road tires and 16″ alloy wheels with a black powder-coated finish. Includes two spare tires.
- Towing Features: 12″ electric tow brake with mechanical handbrake, a 7-pin flat plug, a 50Amp Anderson plug, and 2x rear-facing recovery shackles.
Electrical System & Power
- System: A powerful 12V/110V electrical system featuring a 2,000 Watt Black Series Pure Sine Wave Inverter.
- Power Source: Includes a bank of 2 x 100AH batteries and 2 x 150W roof-mounted solar panels.
- Connectivity: Features internal/external 12V/USB plugs and a 30Amps shore power connection. A central control panel provides monitoring with breakers and digital gauges.
