Plan both cargo and camp modes.
Black Series
TH19
Off-road toy hauler with queen bed, four bunk beds, wet bath, garage-ready flooring, indoor and outdoor kitchen systems, solar power, water systems, and Black Series chassis configuration.
6
Sleeps
19ft
Internal Length
6,172lbs
Dry Weight
600W
Solar
Measurements
Internal Height6.7ft
Internal Length19ft
External Height10.5ft
External Length22.3ft
External Width7.8ft
Dry Weight6,172lbs
Tongue Weight900lbs
GVWR10,000lbs
Interior
Sleeping Configuration1x Queen Bed and 4x Bunk Beds
BacksplashGrey Acrylic Full Height Splashback
Wet BathFull Fiberglass shower enclosed with ventilation and Toilet
KitchenPropane Stove with Cover for Preparation Area
FlooringWood Vinyl Living Area and Aluminum Diamond Plating Flooring in Garage
CabinetryModern 5-Star Timber Finish Veneer; all cabinetry comes equipped with gas strut supports with push open travel-safe locks and soft close drawers
LeatherPremium Leather with a 5-Star Finish
Screen DoorTri-Lock Security Door with locking Fly Screen
Exterior
MaterialsAluminum Composite Panels with added Aluminum Diamond Plating for added strength
Stone Guard / Skid GuardAdded Protection for Bottom Edge of Camper
InsulationSpray Foam R16 Insulation on Full Roof and Walls
RoofOne Piece Aluminum and Roof Hatch with Shade
WindowsEurovision Windows with Fly Screen and Privacy Shades
AwningPremium Retractable Awning
StorageLarge Pass-Through Storage; Front Storage for 2x Jerry Cans & 2x Propane Tanks
Prep-TableLockable Fold Down Outdoor Table
Outdoor KitchenStainless Steel Slide Out Sink, Propane Burner Stove and Large Prep-Table
ShowerOutdoor Shower
Appliances / Accessories
Fridge2.6 cu. ft. Fridge/Freezer
StoveGuardOutdoor and Indoor Propane Stove
RangehoodSlim Twin Fan with Light Range Hood
Microwave6 Gal. Electrical Microwave with Four Operating Features
Furnace16,000 BTU Thermostat Control
Air Conditioning13,500 BTU Rooftop Air Conditioning Unit
Entertainment SystemCD/FM/IPOD/Bluetooth/USB Radio, 2x Interior Speakers, 2x Outdoor Marine Grade Speakers, 24" TV with DVD Function
AntennaHD TV over the air antenna with built in sure-lock
SafetyFire Extinguisher, Smoke Alarm and Propane/CO Detector
Plumbing
ShowerOutdoor Shower & Interior Full Fiberglass Shower
SinkLarge Interior Stainless Steel Sink and Outdoor Stainless Steel Drip Sink
ToiletPorcelain Toilet
Filtered Water16 Gal. Triple Filtered System
Fresh Water64 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Grey Water26 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Black Water26 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Hot WaterHot Water System
Electrical
Electrical System12V/110V Electrical System with 2,000 Watts Black Series Pure Sine Wave Inverter with a custom Black Series Camper, Inc. Control Panel.
Battery2x 100AH
Solar4x Roof Mounted 150 Watt Solar Panels
Internal LightingLED Reading Lights in Bedroom and Lounge
External LightingWide Angle Side mounted LED Flood Lights Front & Rear LED Light Bar
PlugsInternal/External 12V USB Plugs
Shore Power30Amps Service
Control PanelBreakers, Digital Gages, & Electrical Power Readout
Chassis
Drawbar / ChassisHot Dipped Galvanized Tubular Steel made from RHS 4"x2", 0.15 Wall Thickness, 0.24" Supporting Plates for extra Strength & Durability
Independent SuspensionControl Arm with Dual Shock Absorbers and Coil Springs
Tires235x75xR15 Off-Road Tires with Two Spare Tires
WheelsNot specified in PDF
Brakes12" Electric Tow Brake with Mechanical Handbrake Breakaway System Include 2x Safety Chains
Connector7 Pin Flat Plug
Anderson Plug50Amp Anderson Plug
HitchBlack Series Camper, Inc. ADR Approved Off-Road Poly Block Hitch
Recovery Hooks2x Rear Facing Recovery Shackles

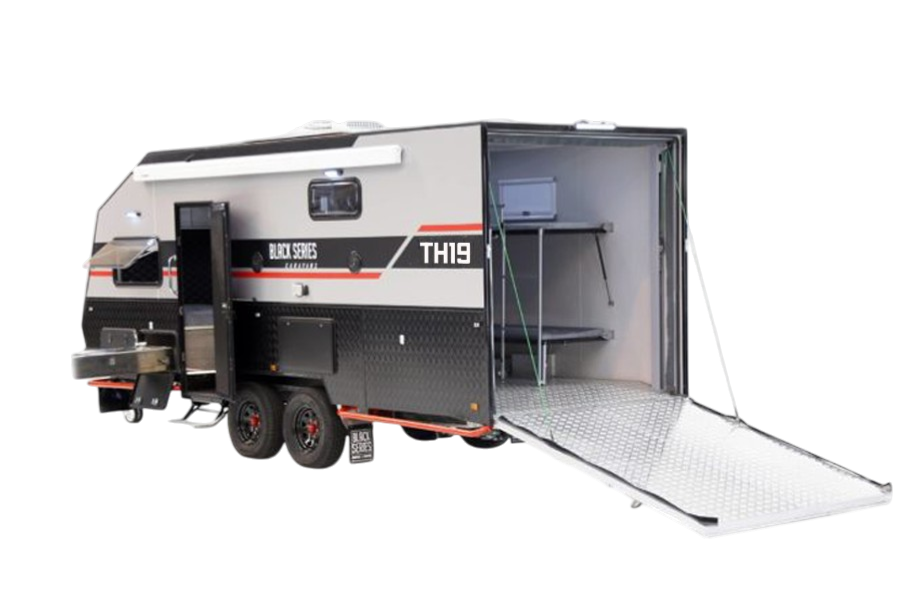

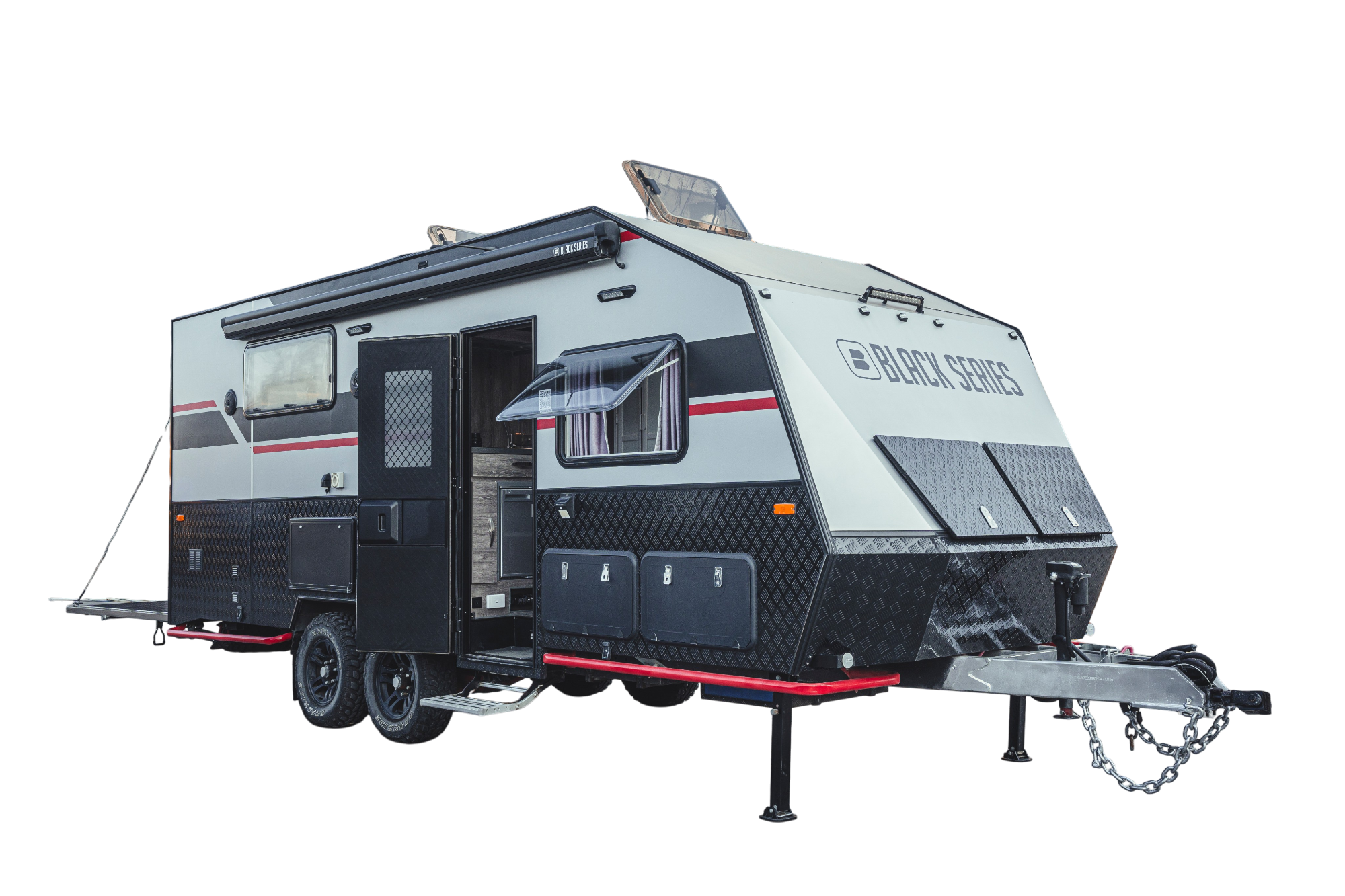

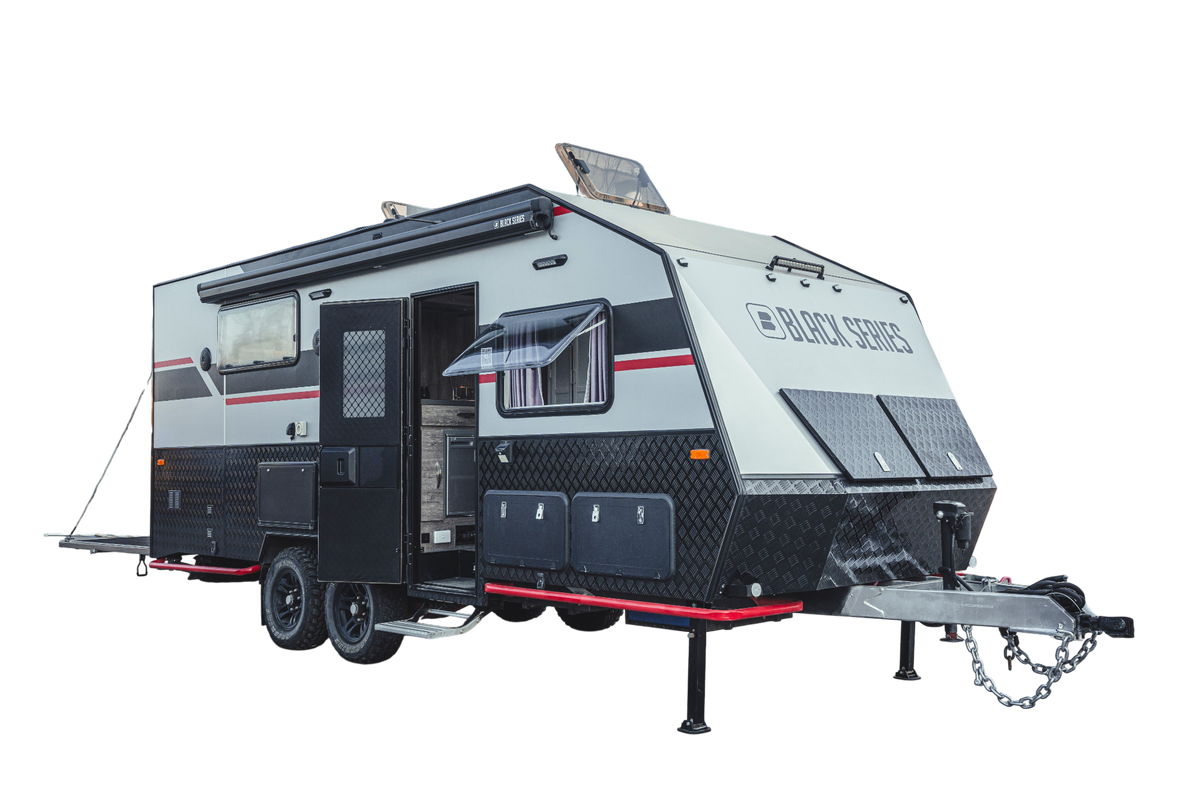

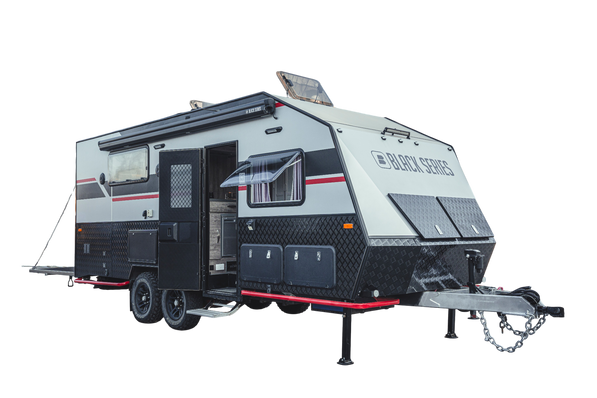

COMPACT OFF-ROAD TOY HAULER

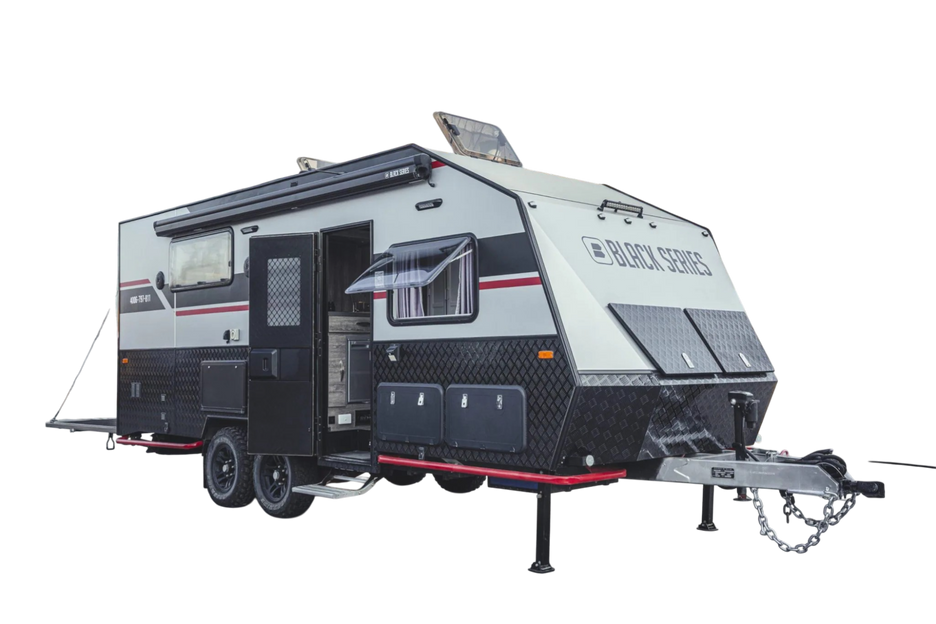

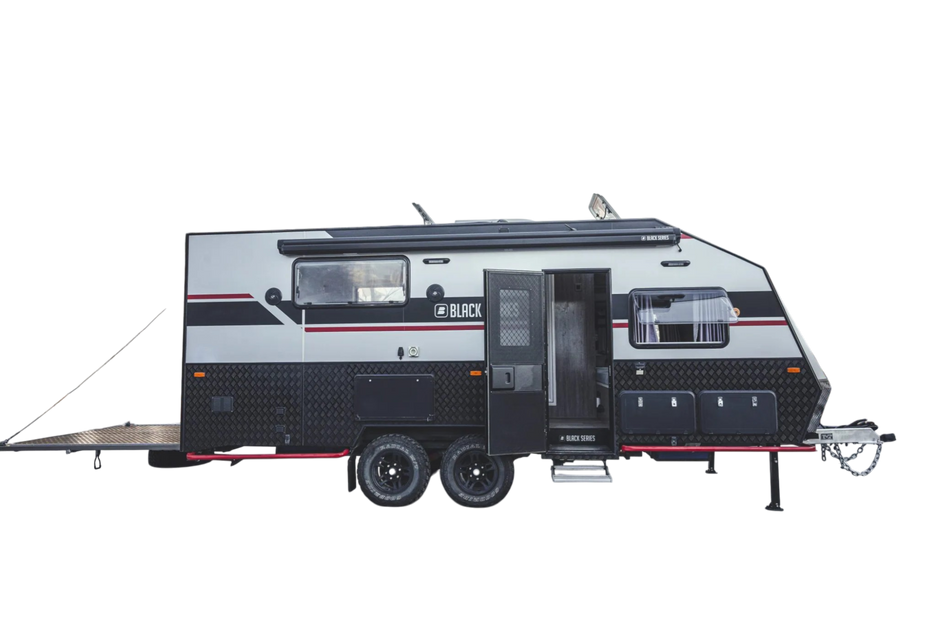

01 / EXTERIORBASE MODEL REFERENCE
COMPACT OFF-ROAD TOY HAULER
Carry the machines.
Sleep the crew.
A 22.3 ft toy hauler with garage-ready diamond-plate flooring, a queen bed, four bunks, wet bath and indoor/outdoor cooking for six published sleepers.
BEST STARTING POINT FORActive families and riding crews
The garage and ramp support gear-heavy trips while permanent sleeping zones keep the trailer useful after unloading.
SLEEPINGUp to 6
BATHROOMWet bath
INTERIOR19 ft
COOKINGInside + outside
6Published sleeps
22.3 ftOverall length
6,172 lbDry weight
10,000 lbGVWR
600 WRoof solar
64 galFresh water
Published base-model figures. Dry weight excludes cargo, water and travel supplies. Verify the selected unit and purchase build sheet.
01 / WHO IT FITS
Choose it for the way
you actually travel.
Buyers who need a compact toy garage and six published sleeping places.
Published total is six.
Compact shared washroom.
Small for a six-person group.
Payload matters immediately.
Use the selected unit build sheet.
RIDING CREW
A shorter hauler
for gear-first trips.
Use the garage for machines and equipment, then reset the space after unloading at camp.
- Garage-ready floor
- Rear loading access
- Pass-through storage
Think about: Confirm cargo dimensions, tie-down ratings and actual payload before loading.

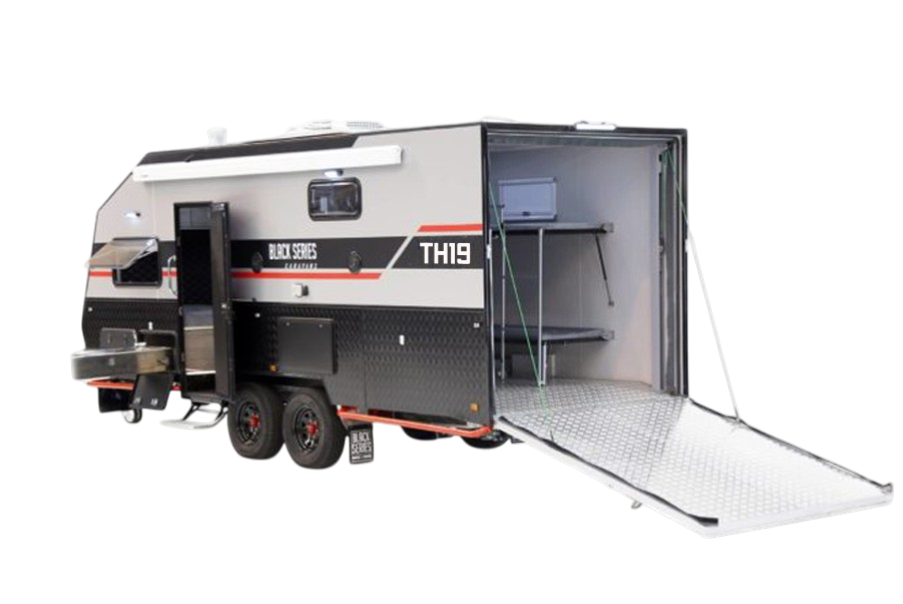

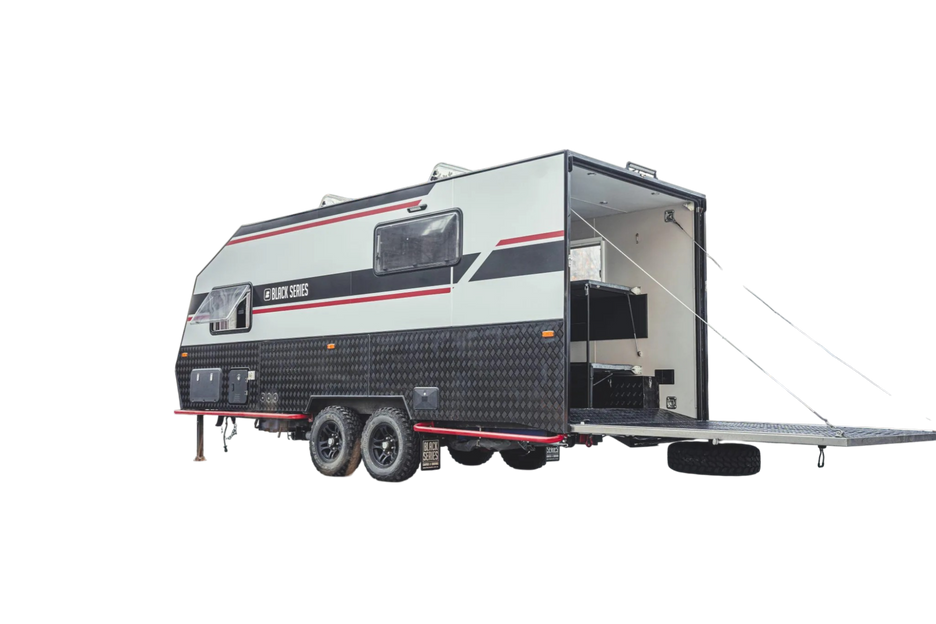

THE COMPACT GARAGE
Unload first.
Then reset the room.
TH19 trades conventional lounge space for a shorter toy-hauler footprint. Diamond-plate garage flooring handles cargo; sleeping and living arrangements depend on how the gear is loaded.
19 ftInterior length
900 lbPublished tongue
6Published sleeps

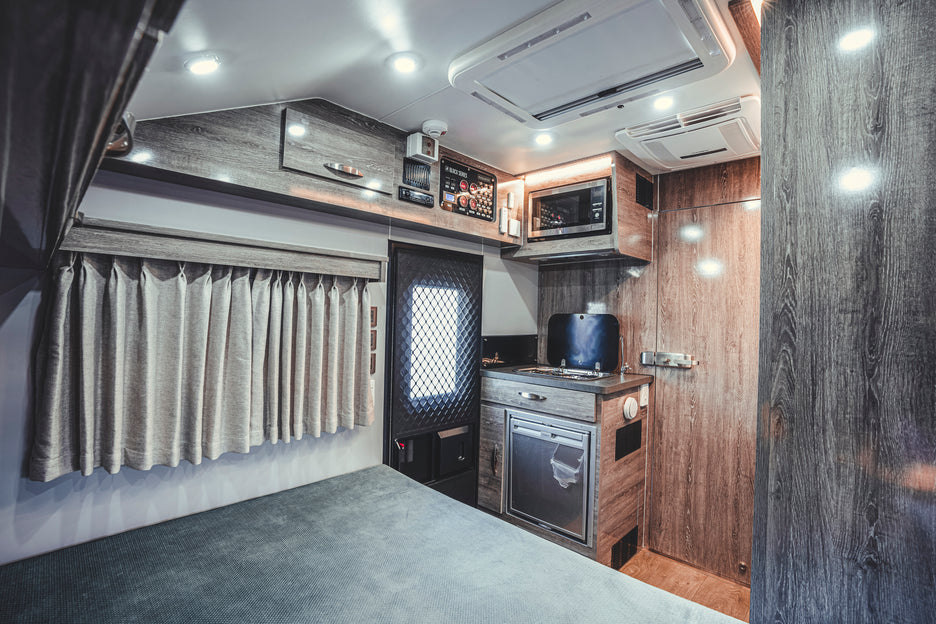

02 / LIFE INSIDE
Every zone
earns its space.

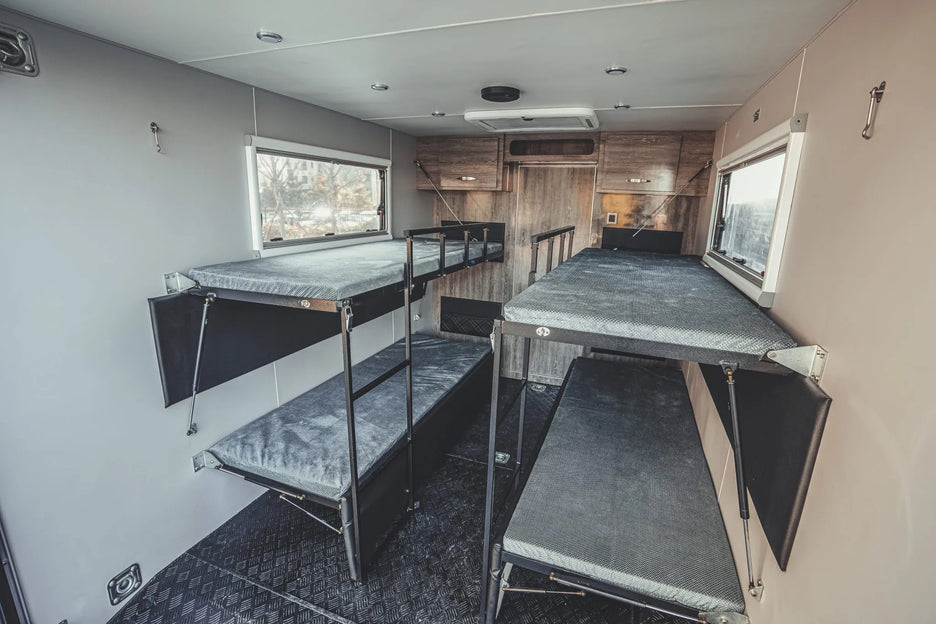

Queen bed + 4 bunks. Full fiberglass wet bath.
WHAT MATTERS INSIDE
Garage floorAluminum diamond plate
Four bunksCrew sleeping
Wet bathCompact washroom
2.6 cu ft fridgePlan food storage

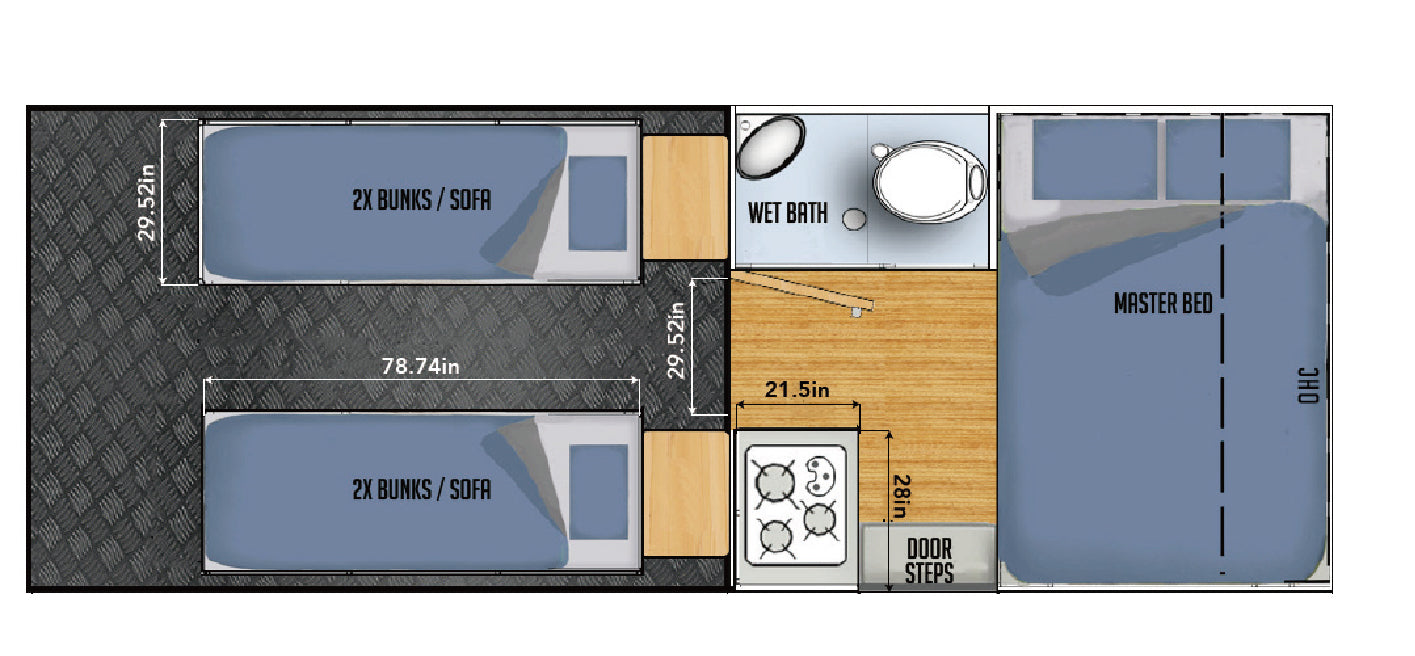

INTERACTIVE FLOOR PLAN
Garage
Cargo + living conversion
Queen bed + 4 bunks. Review the published plan and confirm dimensions on the selected unit.
Cargo + living conversion19 ft interior
Floor plans and finishes can change by production year and package.
INTERIOR / MODEL-SPECIFIC REFERENCE
COMFORT SYSTEMS
Live inside.
Cook outside too.

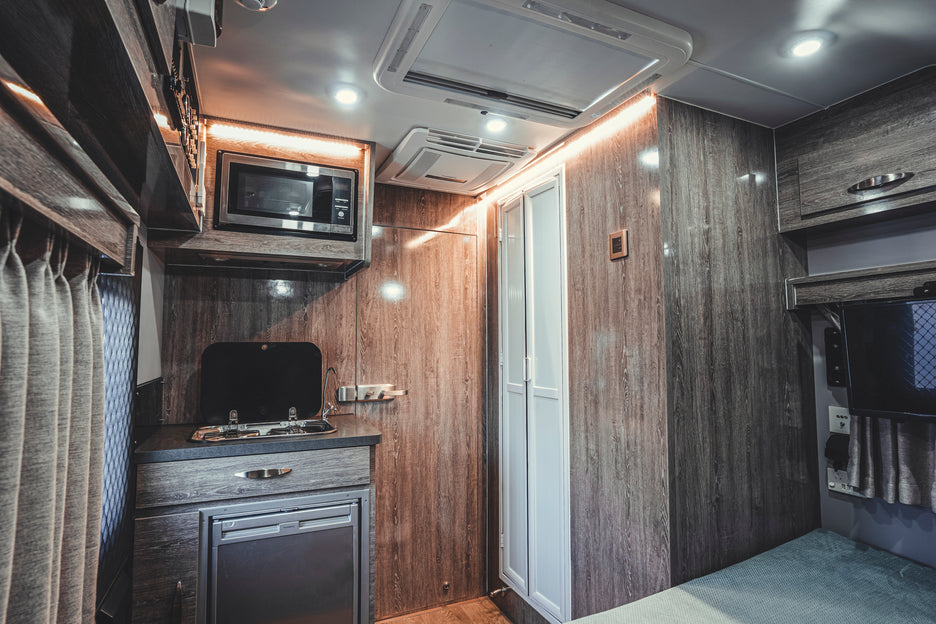

Indoor and slide-out outdoor propane kitchens. The listed 2.6 cu ft fridge, 16,000 BTU furnace and 13,500 BTU rooftop air conditioner define the everyday comfort envelope.
2.6cu ft fridge / freezer
2Cooking locations
Premium retractableAwning
13,500BTU air conditioning
03 / OFF-GRID SYSTEMS
Know what supports
your stay.
Capacity helps only when matched to weather, group size, appliance load and water habits.
POWER ARCHITECTURE
600 W solar.
200 Ah / 2 × 100 Ah.
The listed system combines roof solar, onboard batteries and a pure sine inverter. Runtime depends on battery chemistry, sunlight and loads.
01 / COLLECT600 WRoof solar
→02 / STORE200 Ah / 2 × 100 AhListed battery bank
→03 / CONVERT2,000 WPure sine inverter
30 AShore power12 V / 110 VElectrical system12 V + USBDevice outlets
BUILT FOR THE ROAD BEYOND
The structure
under the finish.
START WITH THE NUMBERS
Match the vehicle
to the loaded trailer.
Published dry weight6,172 lb
GVWR / maximum loaded rating10,000 lb
Published tongue weight900 lb
04 / COMPLETE SPECIFICATION
Every decision point.
Easy to search.
Base-model information checked against current Black Series pages. Options and production updates can change equipment.
01Measurements & weights8 details
Interior height6.7 ft
Published cabin height.
Interior length19 ft
Useable published cabin length.
Exterior height10.5 ft
Confirm roof equipment and clearance.
Overall length22.3 ft
Use for storage and campsite planning.
Exterior width7.8 ft
Check routes and storage openings.
Dry weight6,172 lb
Before cargo, water and travel supplies.
Tongue weight900 lb
Measure again when fully loaded.
GVWR10,000 lb
Maximum loaded trailer rating.
02Sleeping & interior8 details
Published capacityUp to 6 people
Comfort depends on bed dimensions and traveler size.
Sleeping layoutQueen bed + 4 bunks
Confirm every sleeping surface.
BathroomFull fiberglass wet bath
Verify the selected production unit.
LoungeGarage converts between cargo and living use
Daily seating and conversion function.

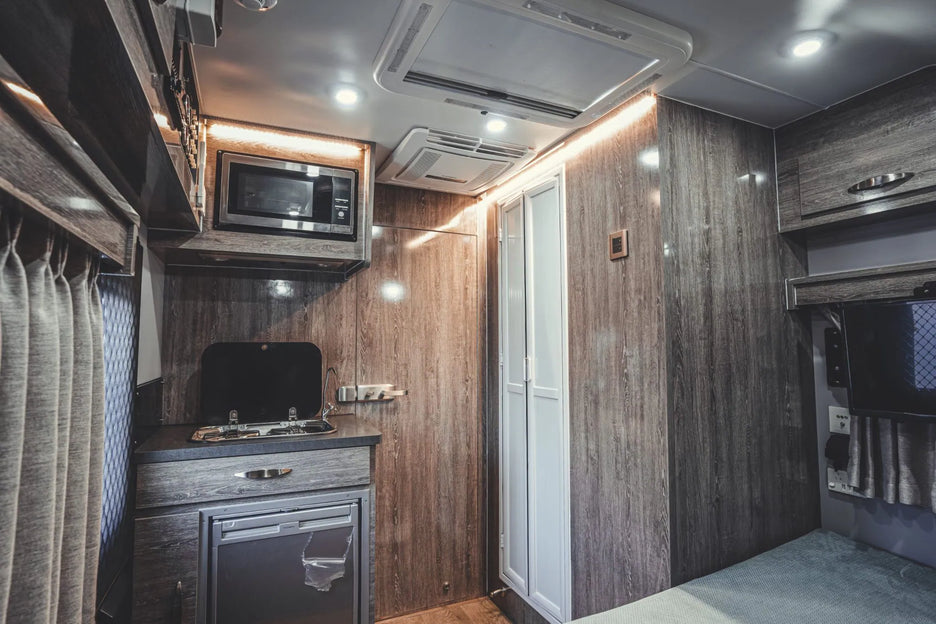

Interior kitchenPropane stove, sink, microwave and fridge
Core meal preparation inside.
CabinetryTimber or model-specific veneer; soft-close drawers
Gas struts and travel-safe locks.
FlooringWood-look vinyl + garage diamond plate
Practical travel finish.
EntryScreened security door
Ventilation and insect screening.
03Kitchen & comfort9 details
Fridge / freezer2.6 cu ft
Plan food storage around actual capacity.
CookingIndoor and slide-out outdoor propane kitchens
Two cooking locations.
Outdoor kitchenSlide-out sink, burner and prep table
Campsite meal preparation.
Range hoodSlim twin-fan hood + light
Task light and ventilation.
MicrowaveElectrical microwave
Confirm shore/inverter requirements.
Furnace16,000 BTU
Thermostat controlled.
Air conditioning13,500 BTU
Confirm power requirements off grid.
Entertainment24 in TV + multi-source audio
Model equipment can vary.
SafetyFire extinguisher, smoke alarm and propane/CO detector
Inspect and maintain every device.
04Water & bathroom8 details
Fresh water64 gal
Protected onboard tank.
Filtered water16 gal
Separate drinking-water supply.
Grey water26 gal
Protected holding tank.
Black water26 gal
Protected holding tank.
Hot waterHot-water system
Confirm fitted heater.
Interior bathroomWet bath
Review layout before ordering.
Outdoor showerExterior connection
Useful for gear and shoes.
ToiletPorcelain or model-specific RV toilet
Confirm fitted unit.
05Electrical & solar9 details
Electrical system12 V / 110 V
Control panel with power readout.
Solar array600 W / 4 × 150 W
Roof-mounted array.
Battery bank200 Ah / 2 × 100 Ah
Nominal published capacity.
Inverter2,000 W pure sine wave
Check continuous and startup loads.
Shore power30 A
Campground connection.
Tow charging50 A Anderson plug
Verify tow-vehicle installation.
Device outletsInterior / exterior 12 V + USB
For compatible devices.
Interior lightingLED reading lights
Bedroom and living zones.
Exterior lightingFlood lights + light bars
Campsite and work lighting.
06Chassis & running gear9 details
ChassisHot-dip galvanized tubular steel
Structural trailer foundation.
SuspensionIndependent control arms, coil springs and dual shocks
Independent wheel movement.
Tires235/75R15
Check pressure, condition and load rating.
WheelsConfirm current build
Confirm current build.
Spare tires2
Published spare count.
Brakes12 in electric
Mechanical handbrake and breakaway system.
Connector7-pin flat plug
Confirm vehicle compatibility.
HitchADR-approved off-road poly-block
Articulating off-road coupling.
Rear fittings2 recovery shackles
Use only under manufacturer procedures.
07Exterior & construction8 details
BodyAluminum composite panels + diamond plate
Exterior shell and lower protection.
Stone / skid guardAdded lower protection
Protects vulnerable areas.
InsulationR16 roof and wall insulation
Manufacturer-listed insulation.
RoofOne-piece aluminum with roof hatch
Confirm fitted roof equipment.
WindowsFly screens + privacy shades
Ventilation and privacy.
AwningPremium retractable
Deploy only in suitable conditions.
StoragePass-through + front storage
For tanks, cans and camp gear.
Exterior tableLockable fold-down table
Extra preparation surface.
No matching specifications.
Checked September 29, 2026. Where official pages conflict or omit a figure, the page says to verify the selected unit and purchase build sheet.
