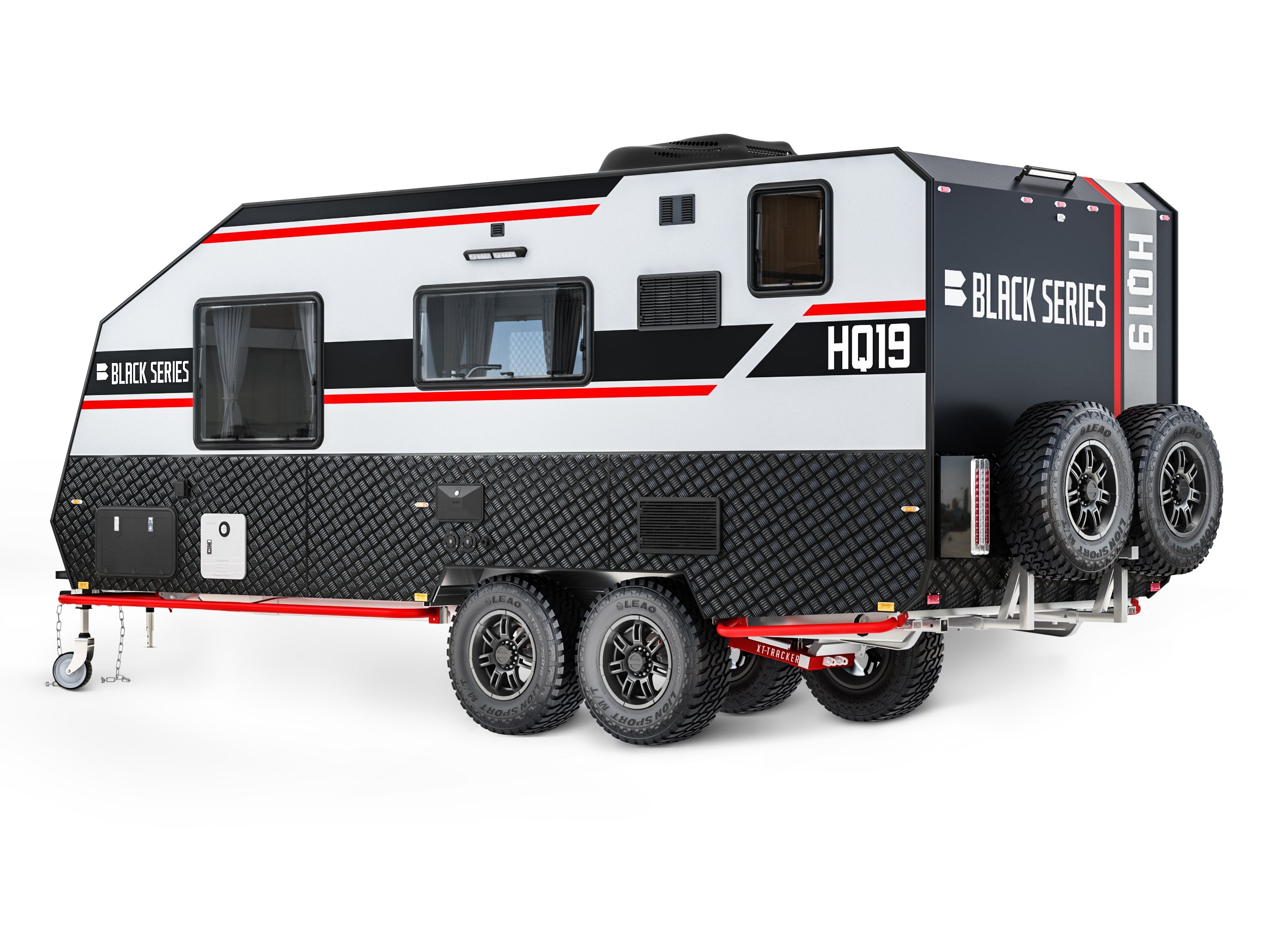

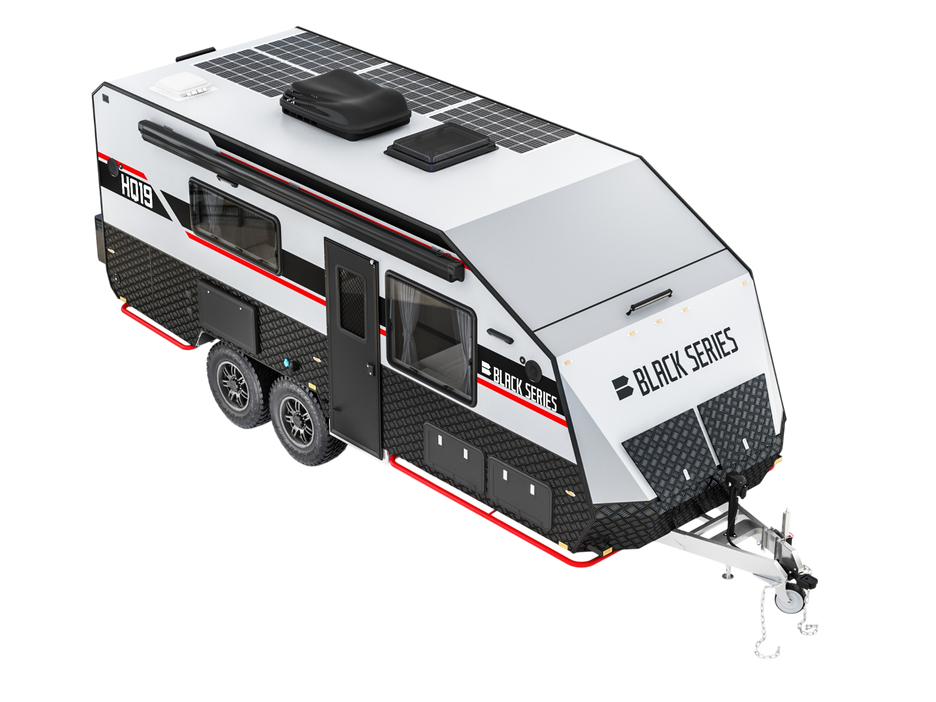

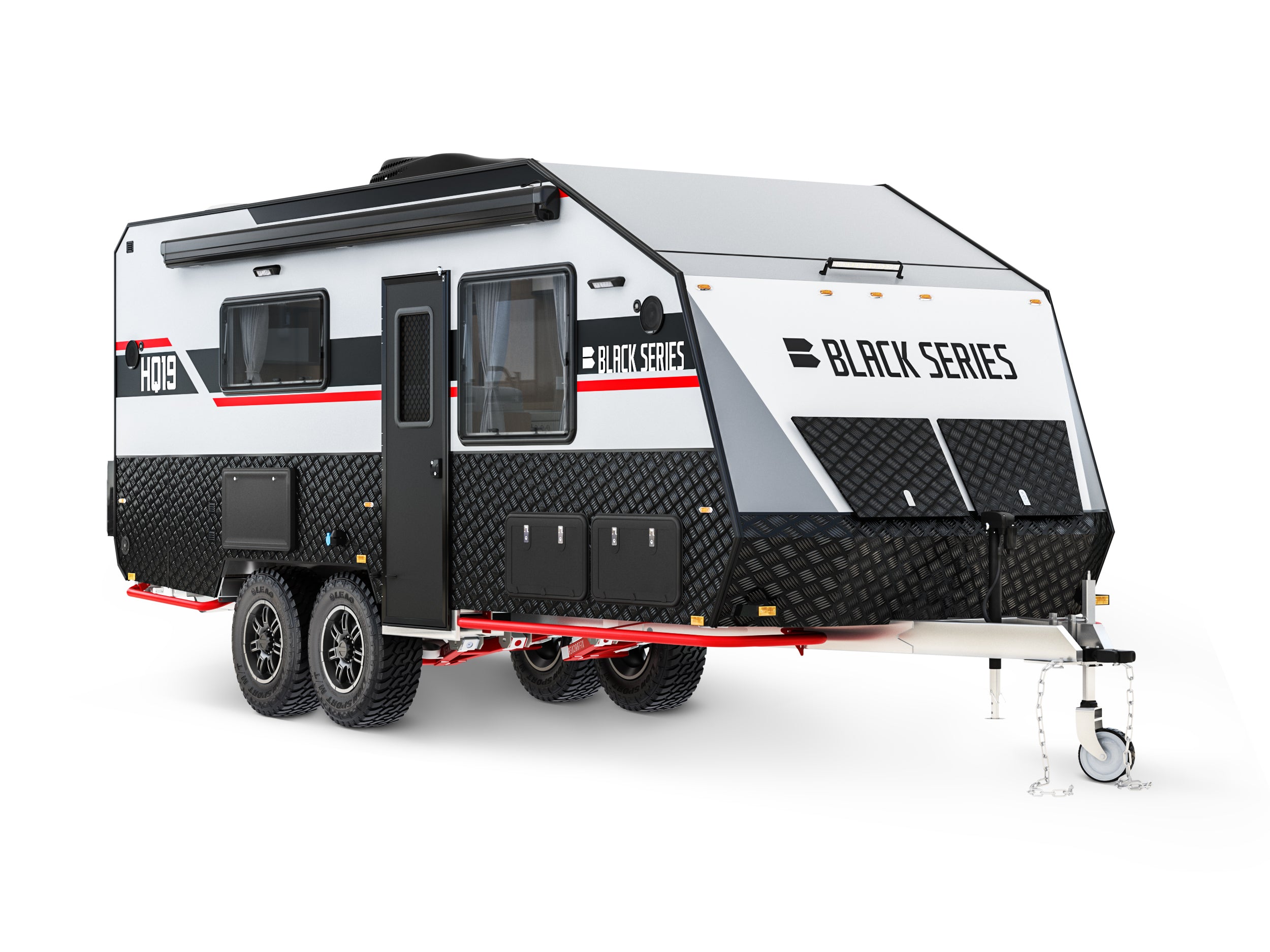

Black Series
HQ19
Off-road travel trailer with queen bed, convertible lounge, separate private bathroom and shower, washing machine, indoor and outdoor kitchen systems, solar power, water systems, and Black Series chassis configuration.
3
Sleeps
19ft
Internal Length
6,525lbs
Dry Weight
600W
Solar
Measurements
Internal Height7ft
Internal Length19ft
External Height10ft
External Length25ft
External Width7ft
Dry Weight6,525lbs
Tongue Weight652lbs
GVWR7600lbs
Interior
Sleeping Configuration1x Queen Bed and convertible lounge
En-Suite BathroomSeparate private bathroom and shower with vanity and washing machine
LoungeDinette with premium faux leather seating and adjustable table convertible to sleeper
KitchenPropane stove, sink, microwave, and fridge
FlooringWood vinyl
CabinetryModern 5-star timber finish veneer, gas strut supports, push-open travel-safe locks, and soft-close drawers
LeatherPremium leather with a 5-star finish
Screen DoorTri-lock security door with locking fly screen
Exterior
MaterialsAluminum composite panels with added aluminum diamond plating for added strength
Stone Guard / Skid GuardAdds protection for bottom edge of camper
InsulationSpray foam R16 insulation on full roof and walls
RoofOne-piece aluminum and roof hatch with shade
WindowsEurovision windows with fly screen and privacy shades
Awning4m electrical awning
StorageLarge pass-through storage; front storage for 2x jerry cans and 2x propane tanks
Prep TableLockable fold-down outdoor table
Outdoor KitchenStainless steel slide-out sink, propane burner stove, and large prep table
ShowerOutdoor shower
Appliances / Accessories
Fridge6 cu. ft. fridge / freezer
StoveOutdoor and indoor propane stove
RangehoodSlim twin fan with light range hood
Microwave6 gal. electrical microwave with four operating features
Furnace16,000 BTU thermostat control
Air Conditioning13,500 BTU rooftop air conditioning unit
EntertainmentCD / FM / iPod / Bluetooth / USB radio, 2x interior speakers, 2x outdoor marine-grade speakers, 24” Smart TV
AntennaHD TV over-the-air antenna with built-in Sure-Lock
SafetyFire extinguisher, smoke alarm, and propane / CO detector
Plumbing
ShowerOutdoor shower and interior full fiberglass shower
SinkLarge interior stainless steel sink and outdoor stainless steel drip sink
ToiletPorcelain toilet
Filtered Water15.85 gal. triple filtered system
Fresh Water64 gal. polyurethane water tank with 0.12” aluminum bash cover
Grey Water26 gal. polyurethane water tank with 0.12” aluminum bash cover
Black WaterNot specified in PDF
Hot WaterHot water system
Electrical
Electrical System12V / 110V electrical system with 2,000W Black Series pure sine wave inverter and custom Black Series Camper, Inc. control panel
Battery4x 100AH

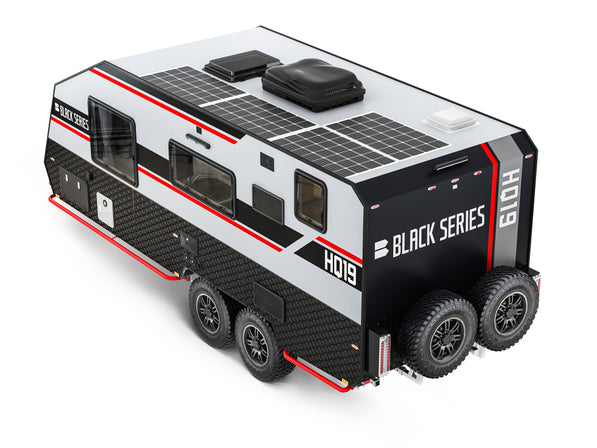

Solar4x roof-mounted 150W solar panels
Internal LightingLED reading lights in bedroom and lounge
External LightingWide-angle side-mounted LED flood lights, front and rear LED light bar
PlugsInternal / external 12V / USB plugs
Shore Power30 amp service
Control PanelBreakers, digital gauges, and electrical power readout
Chassis
Drawbar / ChassisHot-dipped galvanized tubular steel made from RHS 4” x 2”, 0.15 wall thickness, with 0.24” supporting plates for extra strength and durability
Independent SuspensionControl arm with dual shock absorbers and coil springs
Tires265x75xR16 off-road tires with two spare tires
Wheels16” alloy wheels with black powder-coated finish
Brakes12” electric tow brake with mechanical handbrake breakaway system and 2x safety chains
Connector7-pin flat plug
Anderson Plug50 amp Anderson plug
HitchBlack Series Camper, Inc. ADR-approved off-road poly block hitch
Recovery Hooks2x rear-facing recovery shackles
HQ19 Sleeps 3 | Dry Weight 6,525 lbs
Engineered for rugged adventures with an independent suspension featuring dual shock absorbers, a hot-dipped galvanized steel chassis, and 16″ off-road wheels. It sleeps up to 3 with a queen bed and a convertible dinette, complemented by premium faux leather seating and modern timber finish cabinetry.
Designed for extended off-grid stays with large water capacities: 64 gal of fresh water, 15.85 gal of triple-filtered water, a 26 gal grey tank, and a 26 gal black tank, complete
Dimensions & Weight
- Internal Dimensions: 7 ft height; 19 ft length.
- External Dimensions: 10 ft height; 25 ft length; 7 ft width.
- Weight Details: Dry Weight: 6,525 lbs; Tongue Weight: 652 lbs; GVWR: 7,600 lbs.
Appliances & Accessories
- Equipped with a 6 cu. ft. fridge/freezer, an outdoor and indoor propane stove, a microwave with four operating features, a 16,000 BTU furnace, and a 13,500 BTU rooftop air conditioning unit.
- Entertainment System: Comes with a CD/FM/iPod/Bluetooth/USB Radio with 2x interior and 2x outdoor marine-grade speakers, plus a 24″ SMART TV with an HD antenna.
Plumbing & Sanitation
- Bathroom: Features an En-suite with a separate private bathroom, shower, vanity, and a washing machine. Includes a porcelain toilet.
- Water Systems: 64-gallon fresh water tank, 26-gallon grey water tank, and 26-gallon black water tank, plus a 15.85-gallon triple-filtered water system and a hot water system.

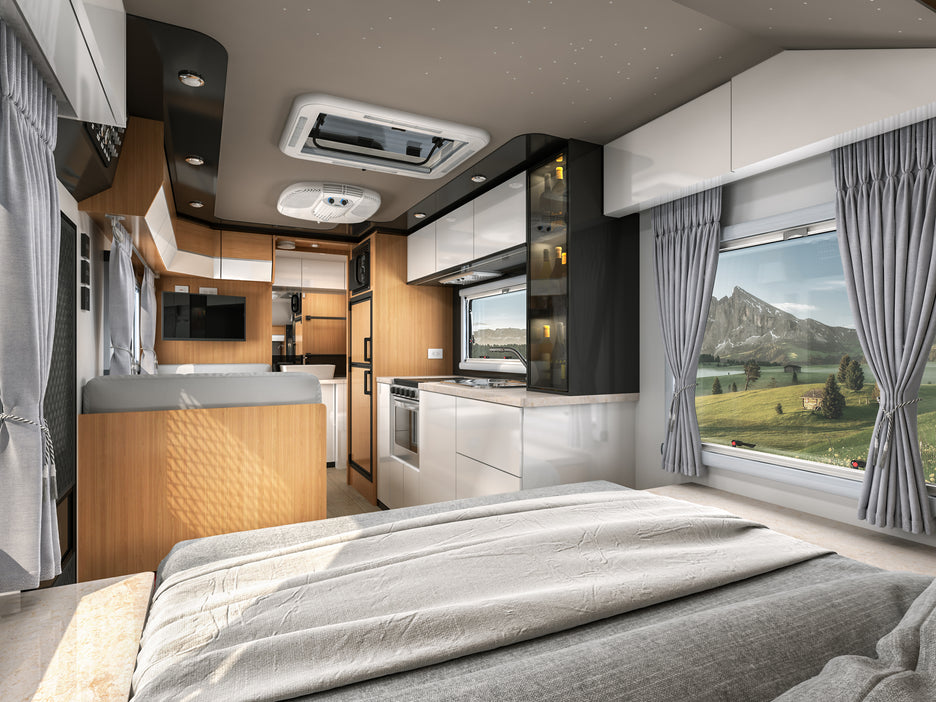

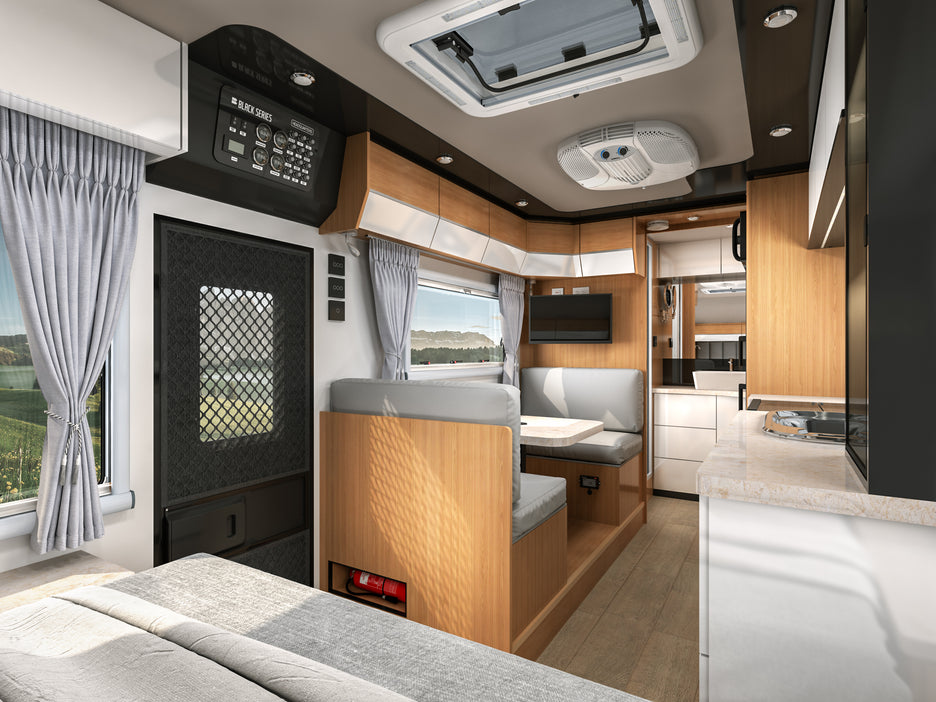

Interior & Furnishings
- Configuration: Sleeps 3 with one Queen Bed and a convertible lounge.
- Kitchen: Includes a large interior stainless steel sink, propane stove, microwave, and fridge.
- Finishes: Modern 5-Star timber finish veneer cabinetry with gas strut supports and soft-close drawers, premium leather with a 5-Star finish, and wood vinyl flooring. Comes with a tri-lock security door with a locking fly screen.
Exterior Design & Storage
- Materials: Aluminum composite panels with added aluminum diamond plating and Stone Guard for strength and protection. Features Spray Foam R16 Insulation on the full roof and walls.
- Outdoor Features: Includes a large pass-through storage area, front storage for 2x Jerry Cans & 2x Propane Tanks, a 4m electrical awning, an outdoor shower, and a stainless steel slide-out kitchen with a sink and propane burner stove.
Chassis & Suspension
- Chassis: Built on a hot-dipped galvanized tubular steel frame. Features an independent suspension with dual shock absorbers and coil springs.
- Tires & Wheels: Comes with 265x75R16 off-road tires and 16″ alloy wheels with a black powder-coated finish. Includes two spare tires.
- Towing Features: 12″ electric tow brake with mechanical handbrake, a 7-pin flat plug, a 50Amp Anderson plug, and 2x rear-facing recovery shackles.
Electrical System & Power
- System: A robust 12V/110V electrical system powered by a 2,000 Watt Black Series Pure Sine Wave Inverter.
- Power Source: Includes 4 x 100AH batteries and 4 x 150W roof-mounted solar panels.
- Connectivity: Features internal/external 12V/USB plugs and a 30Amps shore power connection. A central control panel provides breakers, digital gauges, and an electrical readout.
