Keep the queen bed fixed and the lounge free.
Black Series
HQ12

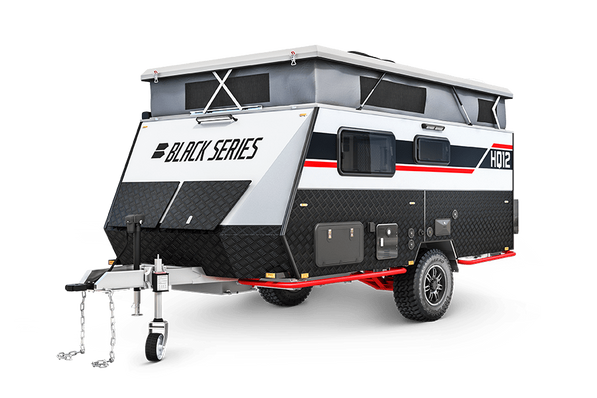

Compact off-road pop-top camper with full interior, exterior kitchen, solar power, water systems, and Black Series chassis configuration.
4
Sleeps
12ft
Internal Length
5,080lbs
Dry Weight
600W
Solar
Measurements
Internal Height7ft Open / 5.4ft Closed
Internal Length12ft
External Height9.6ft Open / 8ft Closed
External Length19ft
External Width7.55ft
Pop Top+1.6ft
Dry Weight5,080lbs
Tongue Weight508lbs
GVWR7,500lbs
Interior
Sleeping Configuration1x Queen Bed, bunk bed, and convertible lounge
Wet BathFull fiberglass shower with ventilation and toilet

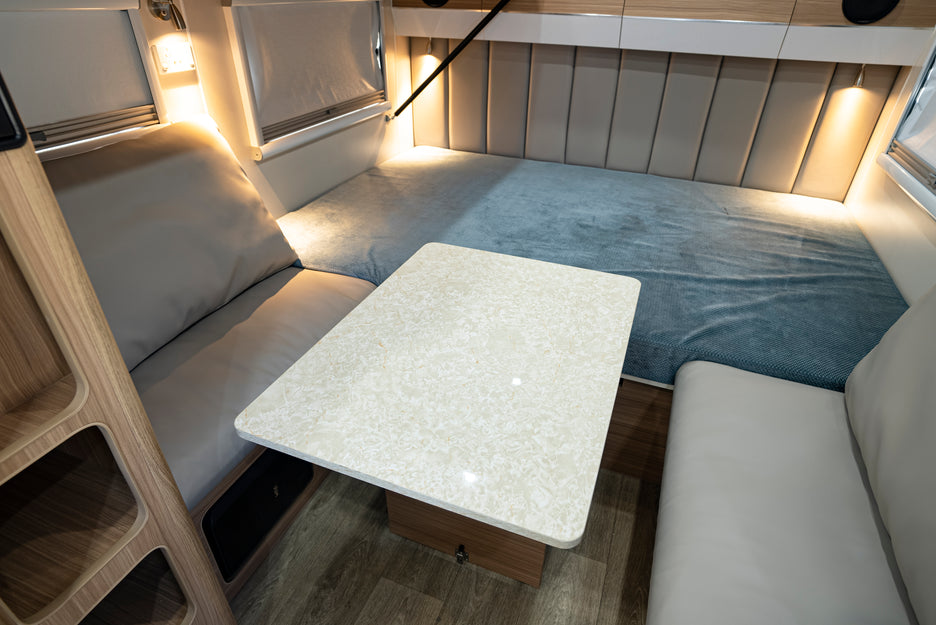

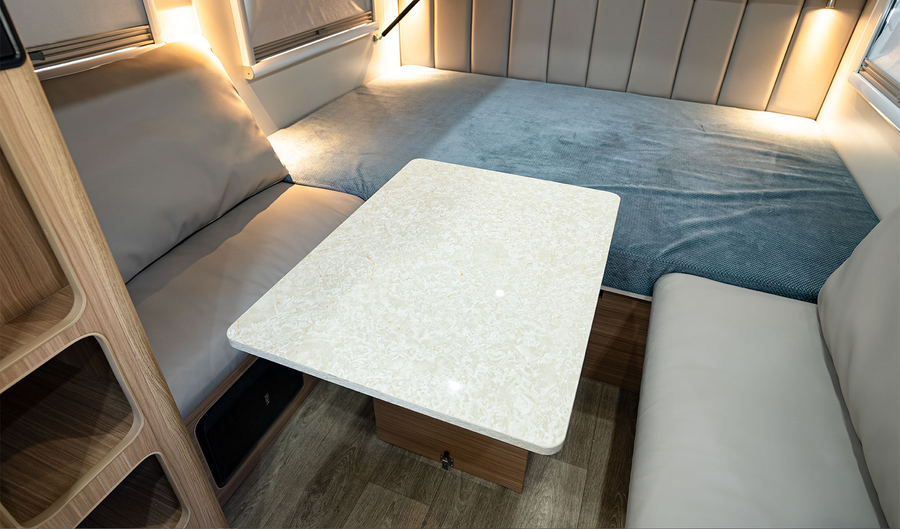

LoungeDinette with premium faux leather seating and adjustable table convertible to sleeper
KitchenPropane stove, sink, microwave, and fridge
FlooringWood vinyl
CabinetryModern timber finish veneer, gas strut supports, push-open travel-safe locks, and soft-close drawers
LeatherPremium leather with 5-star finish
Screen DoorTri-lock security door with locking fly screen
Exterior
MaterialsAluminum composite panels with aluminum diamond plating
Stone Guard / Skid GuardAdded bottom protection
InsulationSpray foam R16 insulation on roof and walls
RoofOne-piece aluminum roof and roof hatch with shade
DesignEasy two-step pop-top
Pop-Top WindowsPolymer-coated embedded canvas with mesh screen windows
Awning10ft electric awning
StorageLarge pass-through storage; front storage for jerry cans and propane tanks

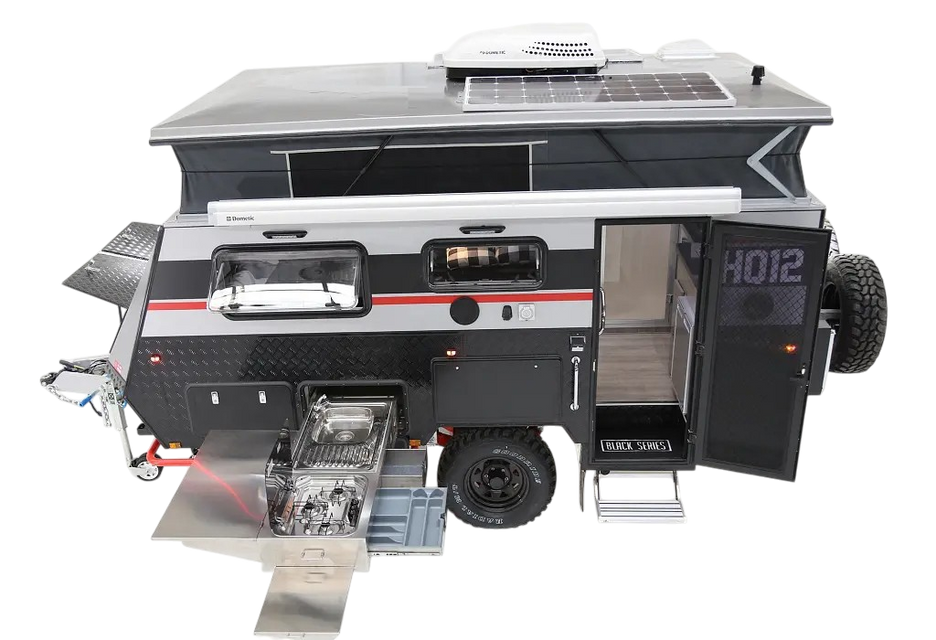

Outdoor KitchenStainless steel slide-out sink, propane burner stove, and prep table
ShowerOutdoor shower
Appliances / Accessories
Fridge2.8 cu. ft. fridge / freezer
StoveOutdoor and indoor propane stove
RangehoodSlim twin fan with light range hood
MicrowaveElectrical microwave with four operating features
Furnace16,000 BTU thermostat control

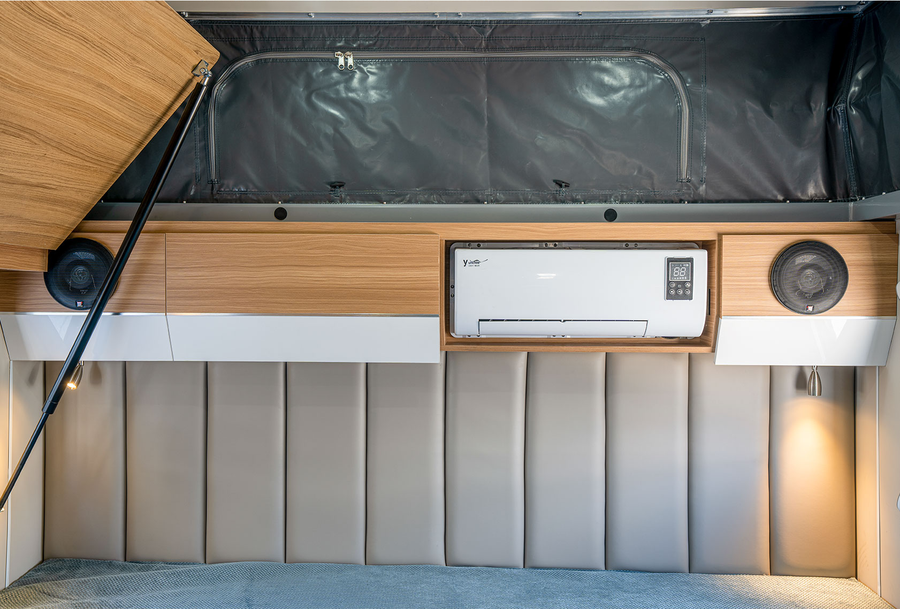

Air Conditioning13,500 BTU rooftop air conditioning unit
EntertainmentCD / FM / iPod / Bluetooth / USB radio, interior speakers, outdoor marine-grade speakers, 24” Smart TV
AntennaHD TV over-the-air antenna with built-in Sure-Lock
SafetyFire extinguisher, smoke alarm, and propane / CO detector
Plumbing
ShowerOutdoor shower and interior full fiberglass shower
SinkLarge interior stainless steel sink and outdoor stainless steel drip sink
ToiletPorcelain toilet
Filtered Water16 gal. triple filtered system
Fresh Water64 gal. polyurethane water tank with aluminum bash cover
Grey Water26 gal. polyurethane water tank with aluminum bash cover
Black Water26 gal. polyurethane water tank with aluminum bash cover
Hot WaterInstant water heater
Electrical
Electrical System12V / 110V system with 2,000W pure sine wave inverter and control panel
Battery2x 100AH
Solar4x roof-mounted 150W solar panels
Internal LightingLED reading lights in bedroom and lounge
External LightingWide-angle side-mounted LED flood lights, front and rear LED light bar
PlugsInternal / external 12V / USB plugs
Shore Power30 amp service
Control PanelBreakers, digital gauges, and electrical power readout
Chassis
Drawbar / ChassisHot-dipped galvanized tubular steel chassis
Independent SuspensionControl arm with dual shock absorbers and coil springs
Tires265/75R16 off-road tires with two spare tires
Wheels16” alloy wheels with black powder-coated finish
Brakes12” electric brake with mechanical handbrake breakaway system
Connector7-pin flat plug
Anderson Plug50 amp Anderson plug
HitchBlack Series Camper ADR-approved off-road poly block hitch
Recovery Hooks2x rear-facing recovery shackles

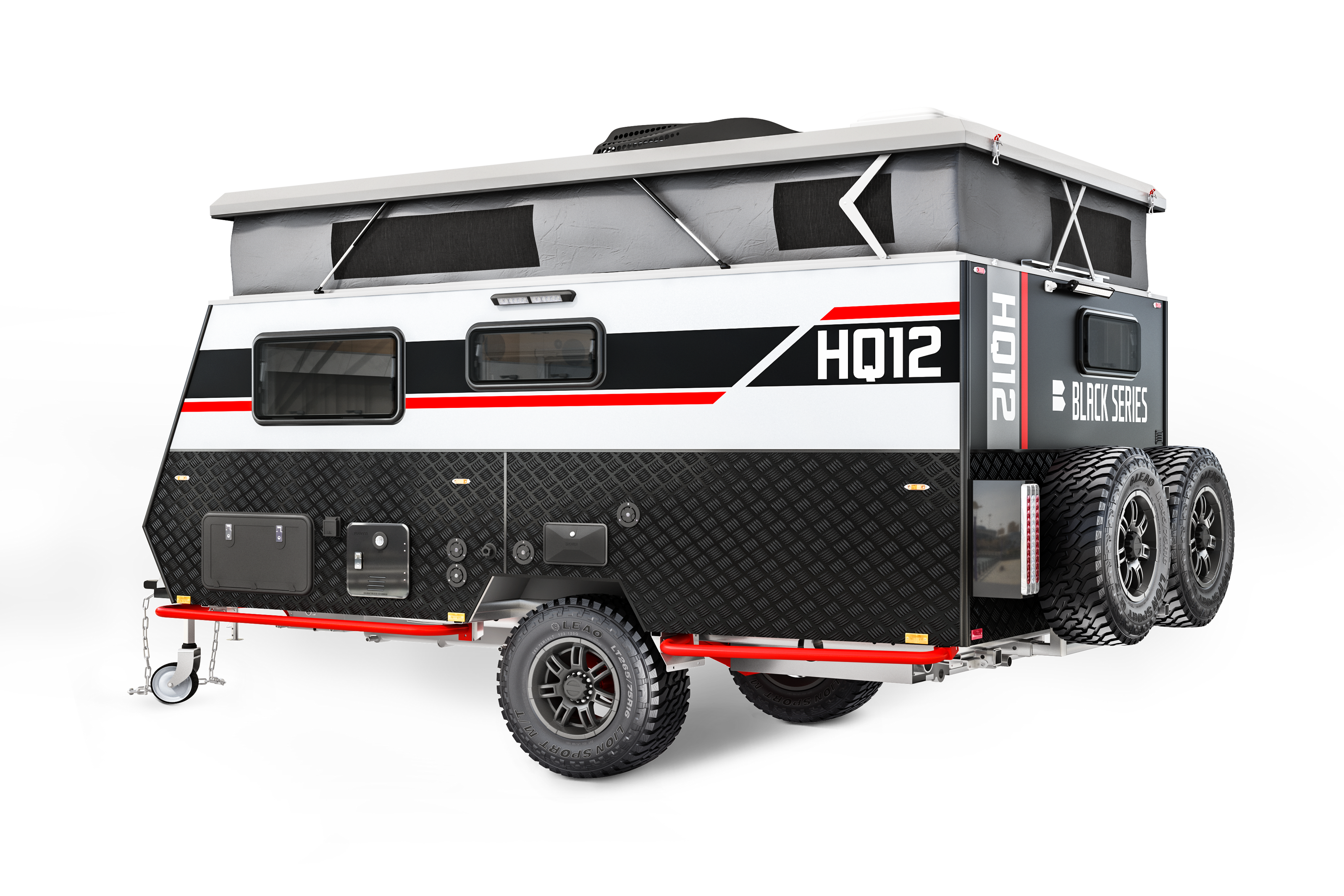

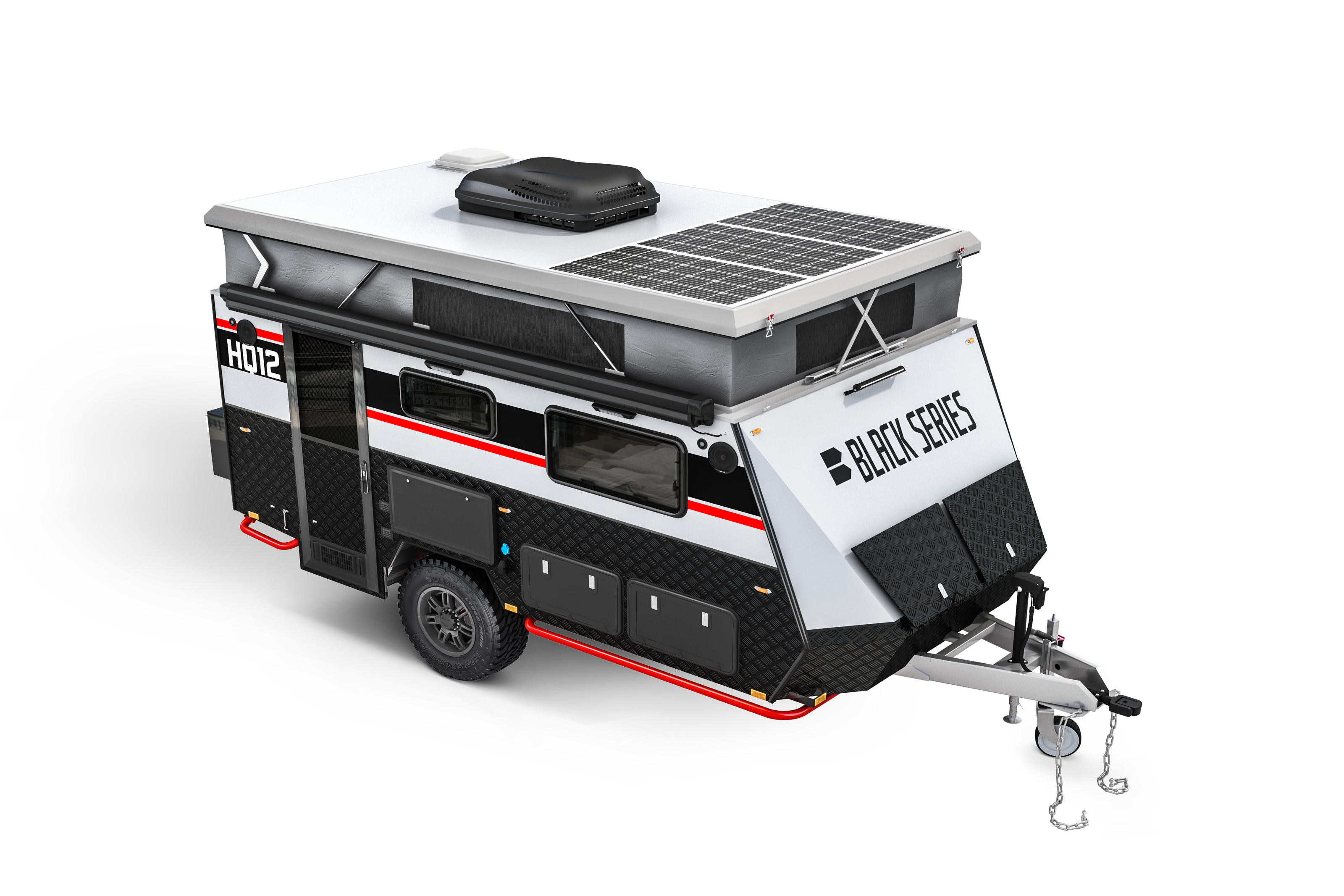

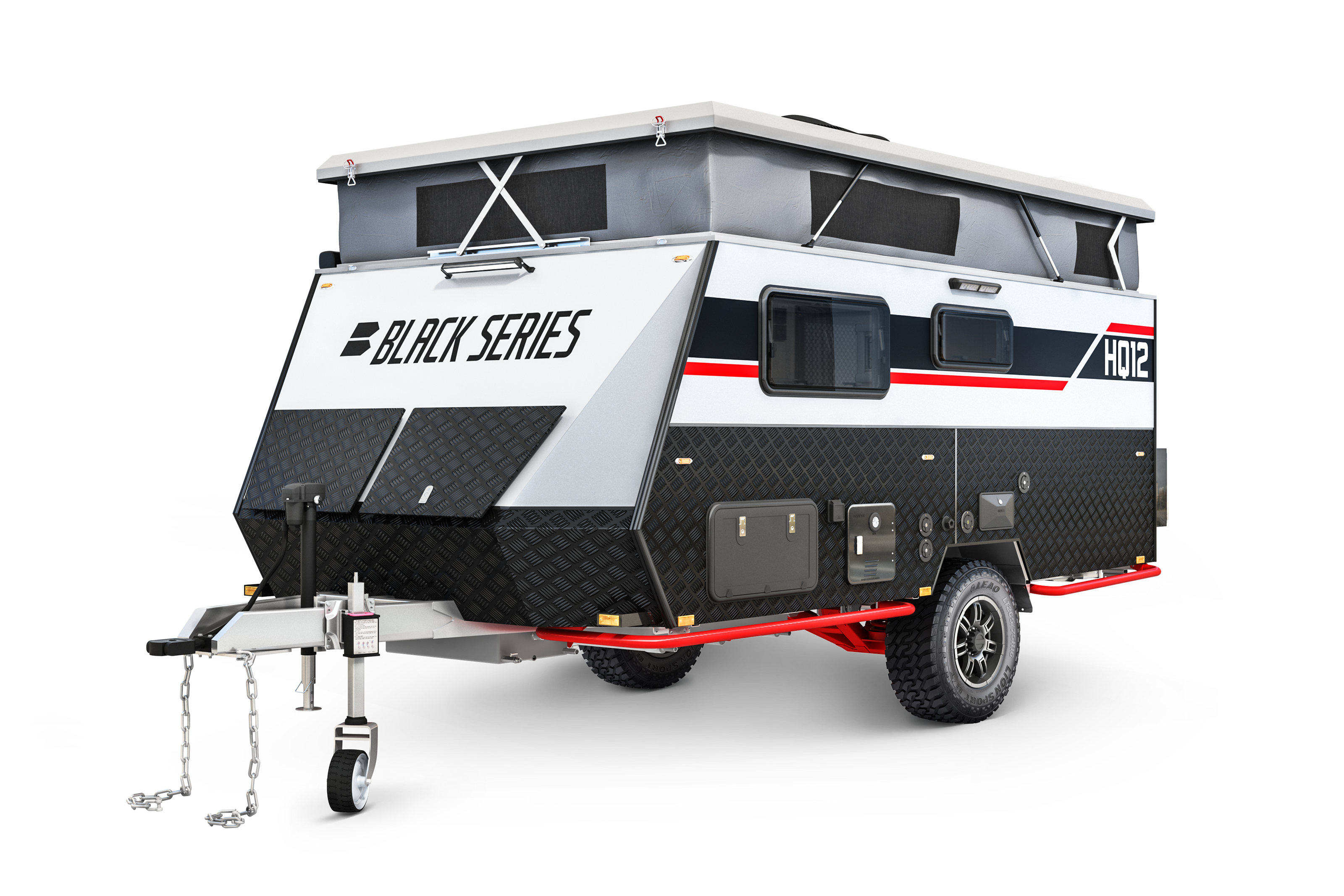

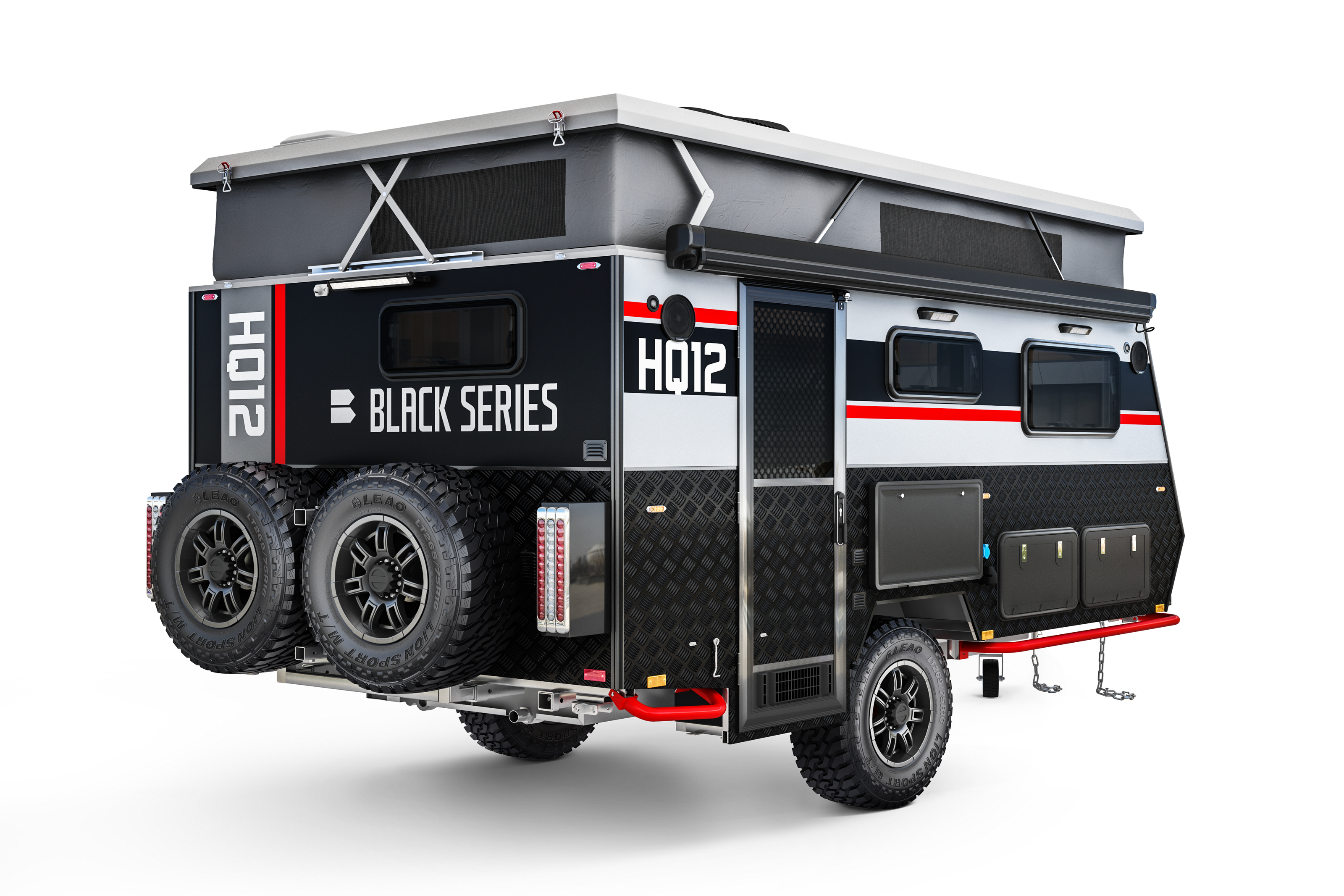

COMPACT OFF-ROAD POP-TOP
01 / EXTERIORPOP-TOP OPEN
THE COMPACT EXPLORER
Small footprint.
Full basecamp.
A 19 ft pop-top basecamp with a fixed queen bed, bunk, wet bath and indoor kitchen. Raise the roof at camp; lower it to an 8 ft travel height.
BEST STARTING POINT FOR
Two adults
Queen bed for the everyday setup. Bunk and convertible lounge add flexibility for one or two more sleepers.
SLEEPING2 everyday
up to 4
up to 4
BATHROOMCompact
wet bath
wet bath
TRAVEL MODE8 ft
closed height
closed height
COOKINGInside
and outside
and outside
4Published sleeps
19ftOverall length
5,080lbDry weight
7,500lbGVWR
600WRoof solar
64galFresh water
Published base-model figures. Dry weight excludes cargo, water and travel supplies. Verify the specifications and fitted equipment of the selected unit.
01 / WHO IT FITS
Choose it for the way
you actually travel.
Capacity says four. Comfort starts with how many people, how often you move and which compromises you accept.
Confirm dimensions for children or adults.
Shower and toilet share one waterproof room.
Plan groceries around a compact fridge.
Two-step pop-top creates standing height.
Cargo, water and options increase weight.
BEST FOR TWO
Your own bed.
Your own routine.
Keep the queen bed ready and the lounge open for meals. The bunk can carry gear or host an occasional third sleeper.
- Fixed queen bed as the primary sleeping zone
- Wet bath inside; outdoor shower for camp cleanup
- Indoor and slide-out outdoor cooking options
Think about: The bathroom is a combined wet bath and the fridge is 2.8 cu ft. Both favor compact travel habits.
THE POP-TOP ADVANTAGE
Low on the road.
Open at camp.
The two-step pop-top adds 1.6 ft of height when raised. It changes the trailer from an 8 ft travel profile to 9.6 ft overall at camp, with 7 ft of published interior standing height.
9.6 ft exterior
7 ftInterior height
12 ftInterior length
7.55 ftExterior width
02 / LIFE INSIDE
Every square foot
has a job.

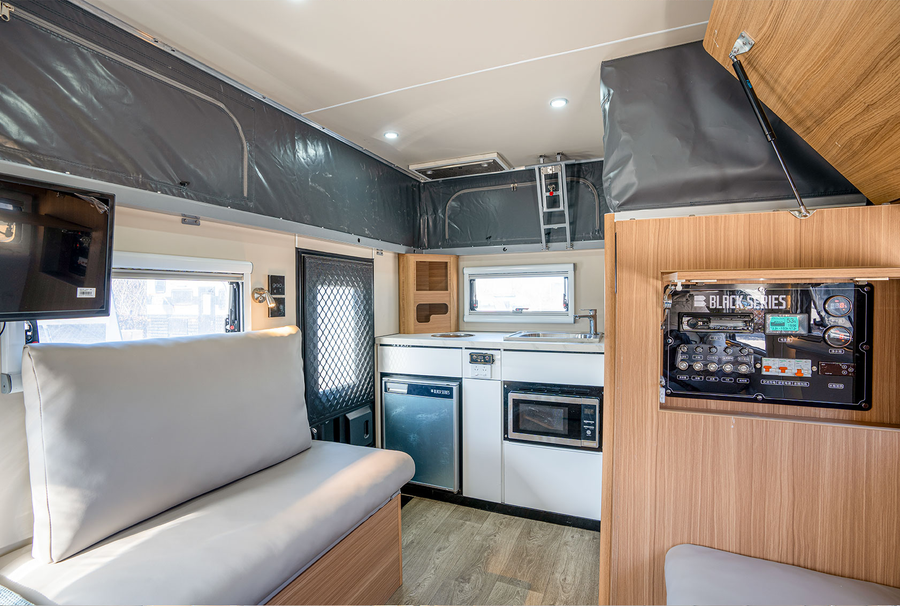

A fixed bed for everyday comfort. A bunk and lounge for flexibility. Cooking and washing stay inside when weather closes in.
WHAT YOU NOTICE INSIDE
Fixed queenMain bed stays ready
Soft-closeTravel-safe drawers
Screen doorVentilation with privacy
24 in TVIndoor entertainment
INTERACTIVE FLOOR PLAN

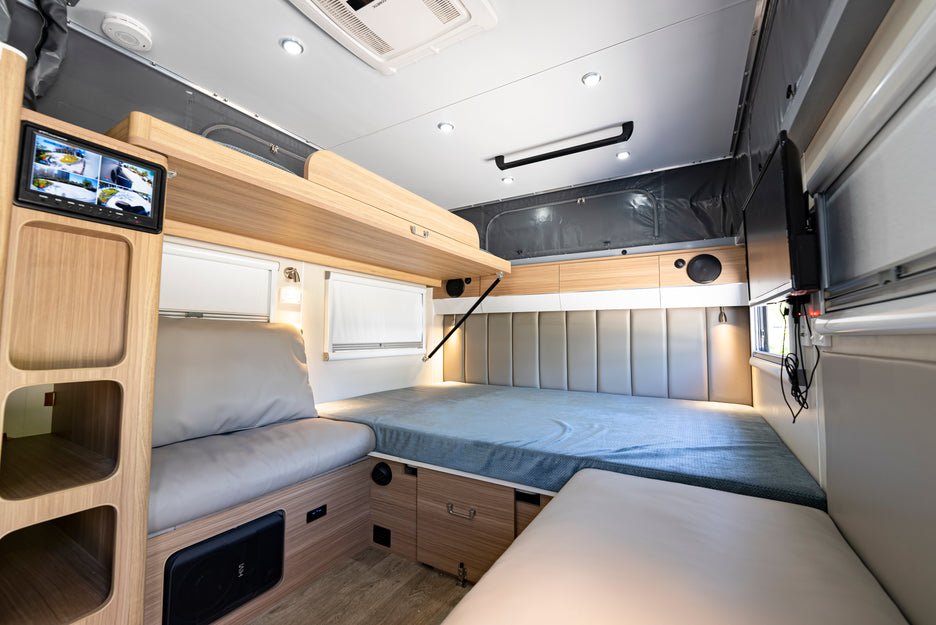

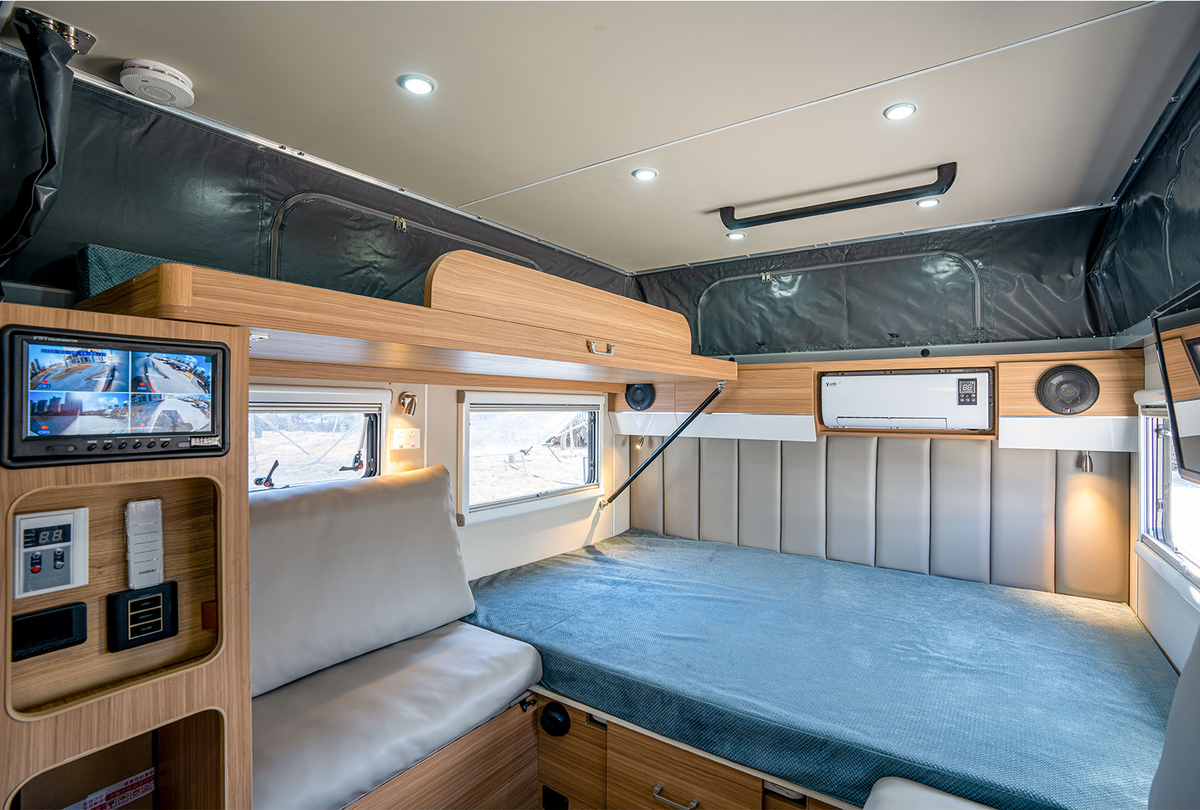

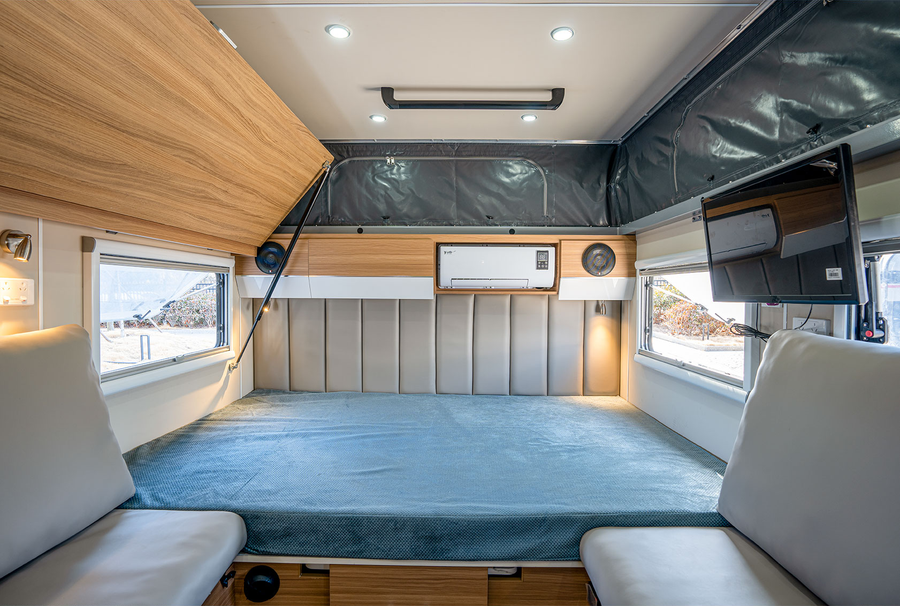

SLEEPING ZONE
Keep the main bed ready.
The queen bed anchors the sleeping area. A separate bunk and a lounge that converts to a sleeper bring the published capacity to four without asking you to rebuild the main bed each evening.
Queen bedBunk bedConvertible lounge
Bed dimensions and suitability vary by traveler. Confirm the current layout before ordering.

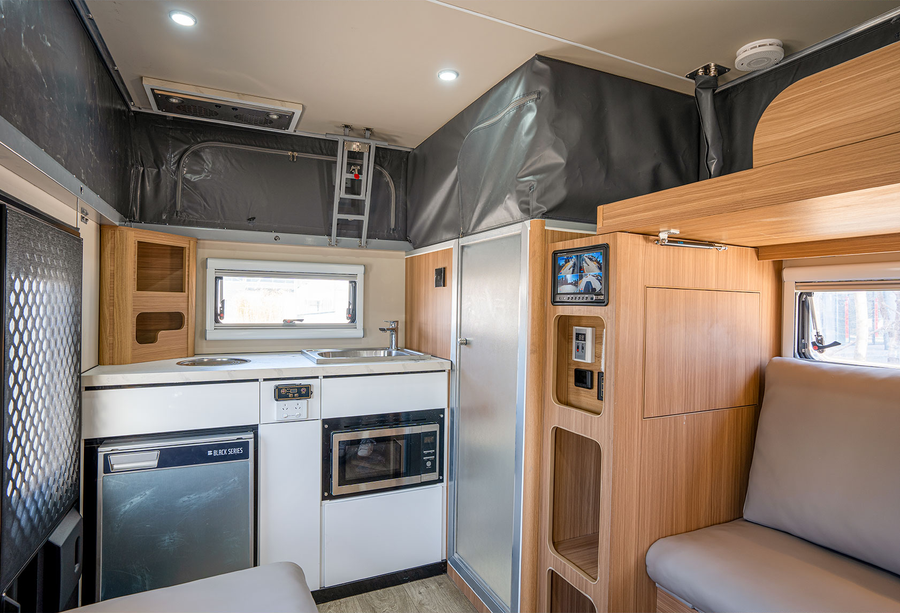

INDOOR KITCHEN / WEATHER-READY MEALS
COOK WHERE THE DAY TAKES YOU
Inside when needed.
Outside when wanted.

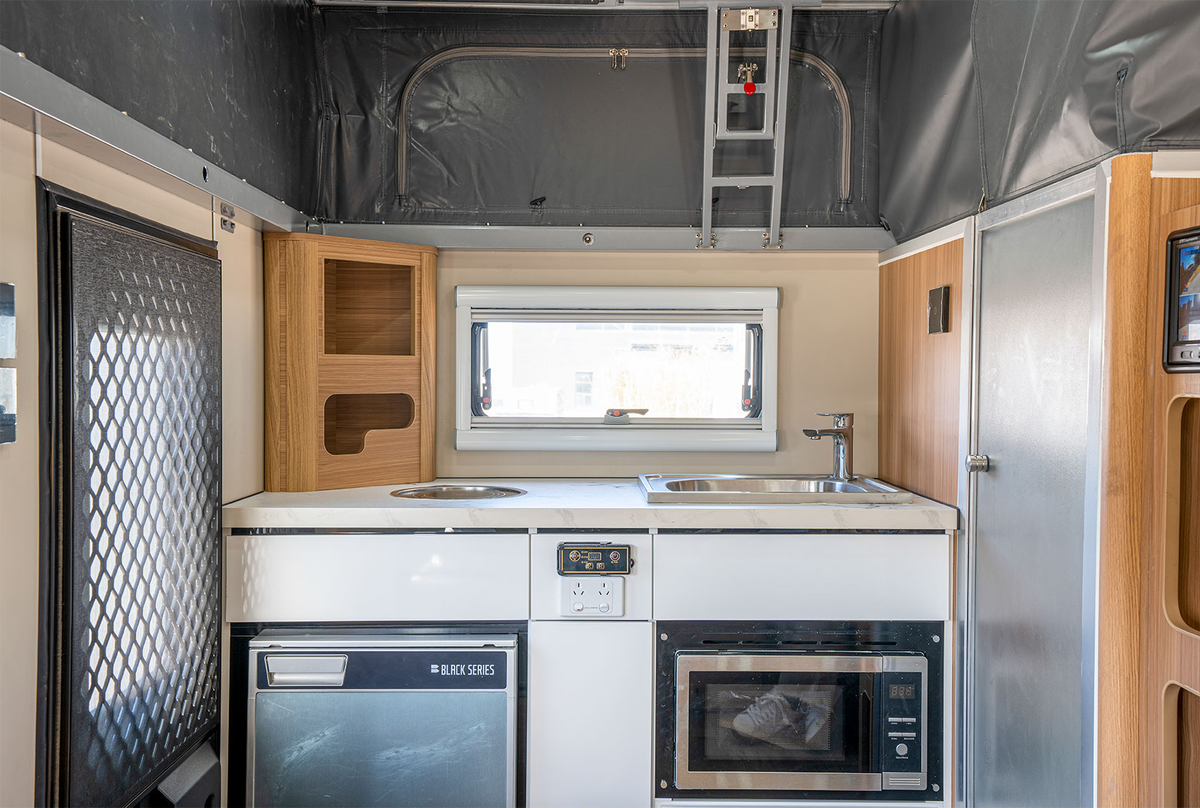

The interior combines a propane stove, stainless-steel sink, microwave and 2.8 cu ft fridge/freezer. At camp, a stainless slide-out sink, propane burner and prep table move the cooking routine outdoors.
2.8cu ftFridge / freezer
2Cooking locations
10ftElectric awning
16,000BTUThermostat furnace
03 / OFF-GRID SYSTEMS
Know what supports
your stay.
Capacity is useful when you understand what each component does. Runtime and days at camp still depend on weather, usage and the selected configuration.
FROM SUNLIGHT TO EVERYDAY POWER

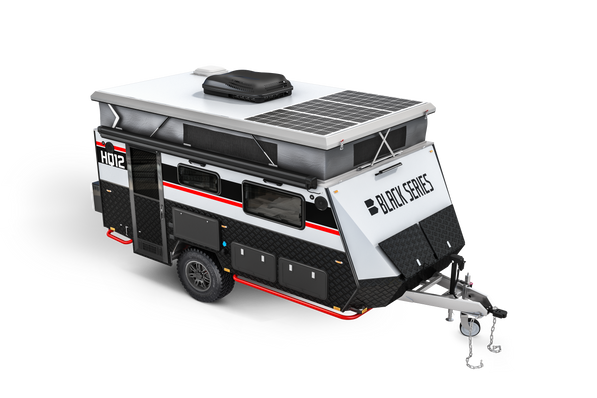

600 W on the roof.
200 Ah in the bank.
Four 150 W panels feed the listed dual 100 Ah battery bank. A 2,000 W pure sine wave inverter supports compatible 110 V loads; actual energy availability depends on battery chemistry, sunlight and appliance demand.
01 / COLLECT4 × 150 WRoof solar panels
→
02 / STORE2 × 100 AhListed batteries
→
03 / CONVERT2,000 WPure sine inverter
30 A Shore power12 V / 110 V Electrical system12 V + USB Inside / outside
04 / CHOOSE YOUR EDITION
Build for the trips
you will actually take.
Start with the standard HQ12, add long-range off-grid comfort, or step up to the expedition package. Click each edition to compare it without an auto-playing carousel.
BASE MODEL / FACTORY STANDARD
The core HQ12.
Ready for real travel.
The standard configuration already combines the pop-top cabin, wet bath, indoor and outdoor kitchens, solar, inverter and independent suspension.
- 600 W roof solar
- 2 × 100 Ah listed batteries
- 2,000 W pure sine inverter
- Independent coil suspension
Best fit: travelers who want the complete HQ12 layout and will use hookups or manage energy carefully.
600 WSOLAR
200 AhBATTERY
2,000 WINVERTER
BUILT FROM THE GROUND UP
The parts beneath
the promise.
BEFORE YOU HITCH UP
Start with the numbers.
Finish with your loaded trailer.
Published dry weight5,080 lb
GVWR / maximum loaded rating7,500 lb
Published tongue weight508 lb
05 / COMPLETE SPECIFICATION
Every published detail.
Easy to search.
Values below describe the base HQ12 information published by Black Series. Optional packages and production updates can change equipment.
01Measurements & weights8 details
Interior height7 ft open / 5.4 ft closed
Standing height changes with the pop-top position.
Interior length12 ft
Published cabin length.
Exterior height9.6 ft open / 8 ft closed
Confirm clearance including fitted roof equipment.
Overall length19 ft
Use for storage and campsite planning.
Exterior width7.55 ft
Confirm route and storage clearances.
Dry weight5,080 lb
Before fluids, cargo and travel supplies.
Tongue weight508 lb
Published figure; measure the loaded trailer.
GVWR7,500 lb
Maximum loaded trailer weight rating.
02Sleeping & interior8 details
Published capacityUp to 4 people
Confirm sleeping dimensions for your group.
Sleeping layoutQueen bed, bunk, convertible lounge
Three sleeping zones.
Wet bathFiberglass shower + toilet
Combined shower and toilet with ventilation.
LoungeFaux leather convertible dinette
Adjustable table and sleeper conversion.
Interior kitchenStove, sink, microwave, fridge
Core meal preparation inside.
CabinetryTimber veneer; soft-close drawers
Gas struts and push-open travel locks.
FlooringWood-look vinyl
Practical everyday finish.
EntryTri-lock door + locking fly screen
Screened ventilation at camp.
03Kitchen & comfort9 details
Fridge / freezer2.8 cu ft
Compact food storage.
CookingIndoor + outdoor propane stoves
Two cooking locations.
Outdoor kitchenSink, burner and prep table
Stainless slide-out unit.
Range hoodSlim twin-fan hood + light
Task light and cooking ventilation.
MicrowaveElectrical microwave
Four operating features are listed.
Furnace16,000 BTU
Thermostat controlled.
Air conditioning13,500 BTU rooftop unit
Confirm power requirements before off-grid use.
Entertainment24 in Smart TV + multi-source audio
Interior and marine-grade outdoor speakers.
SafetyFire, smoke and propane/CO protection
Check and maintain each safety device.
04Water & bathroom8 details
Fresh water64 US gal
Polyurethane tank with aluminum bash cover.
Filtered water16 US gal
Triple-filtered system.
Grey water26 US gal
Protected polyurethane tank.
Black water26 US gal
Protected polyurethane tank.
Hot waterInstant water heater
Confirm the fitted heater on the selected unit.

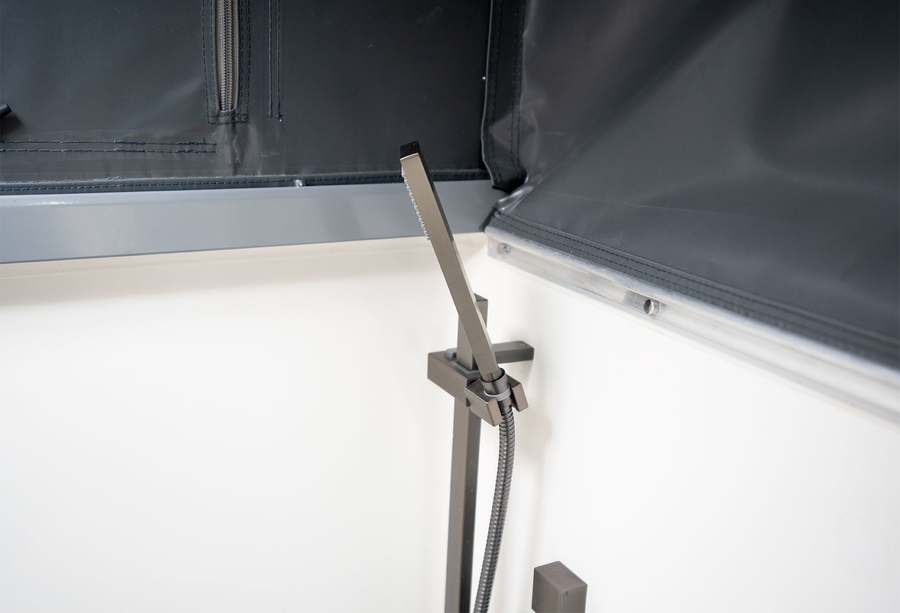

Interior showerFull fiberglass wet bath
Shared shower and toilet room.
Outdoor showerExterior connection
Useful for rinsing gear and shoes.
ToiletPorcelain toilet
Integrated with the onboard black-water system.
05Electrical & solar9 details
Electrical system12 V / 110 V
Control panel with power readout.
Solar array600 W / 4 × 150 W
Roof-mounted panels.
Battery bank2 × 100 Ah
Nominal published capacity.
Inverter2,000 W pure sine wave
Check continuous and startup appliance loads.
Shore power30 A
Compatible campground connection.
Charging connection50 A Anderson plug
Verify tow-vehicle installation.
Device outletsInterior / exterior 12 V + USB
For compatible devices.
Interior lightingLED reading lights
Bedroom and lounge.
Exterior lightingFlood lights + front/rear bars
Wide-angle campsite lighting.
06Chassis & running gear9 details
ChassisHot-dip galvanized tubular steel
Structural trailer foundation.
SuspensionIndependent control arms
Coil springs and dual shock absorbers.
Tires265/75R16 off-road
Check pressure, condition and load rating.
Wheels16 in black alloy
Powder-coated finish.
Spare tires2
Published spare count.
Brakes12 in electric
Mechanical handbrake and breakaway system.
Connector7-pin flat plug
Confirm vehicle compatibility.
HitchOff-road poly-block
ADR-approved Black Series coupling.
Rear fittings2 recovery shackles
Use only under manufacturer procedures.
07Exterior & construction9 details
BodyAluminum composite + diamond plate
Exterior shell and lower-body protection.
Stone / skid guardAdded lower protection
Protects vulnerable underbody areas.
InsulationR16 spray foam
Manufacturer-listed for roof and walls.
RoofOne-piece aluminum
Roof hatch with shade.
Pop-topEasy two-step design
Polymer-coated canvas with mesh windows.
WindowsEurovision privacy + fly screens
Ventilation, screening and privacy.
Awning10 ft electric
Deploy only in suitable conditions.
StoragePass-through + front storage
Space for jerry cans, propane and camp gear.
Exterior tableLockable fold-down table
Extra outdoor preparation surface.
No matching specifications. Try “solar”, “water”, “bed”, “brakes” or “weight”.
Specifications are based on the HQ12 product page and official one-page specification sheet. Equipment can change by package or production batch.
Open official HQ12 PDF ↗YOUR NEXT COMPACT BASECAMP
Make less trailer
feel like more freedom.
The HQ12 makes the clearest case for itself when shorter overall length and a lower travel profile matter, but a fixed bed, onboard bathroom and real off-grid systems still belong on your list.
