Queen plus two bunks.
Black Series
HQ17

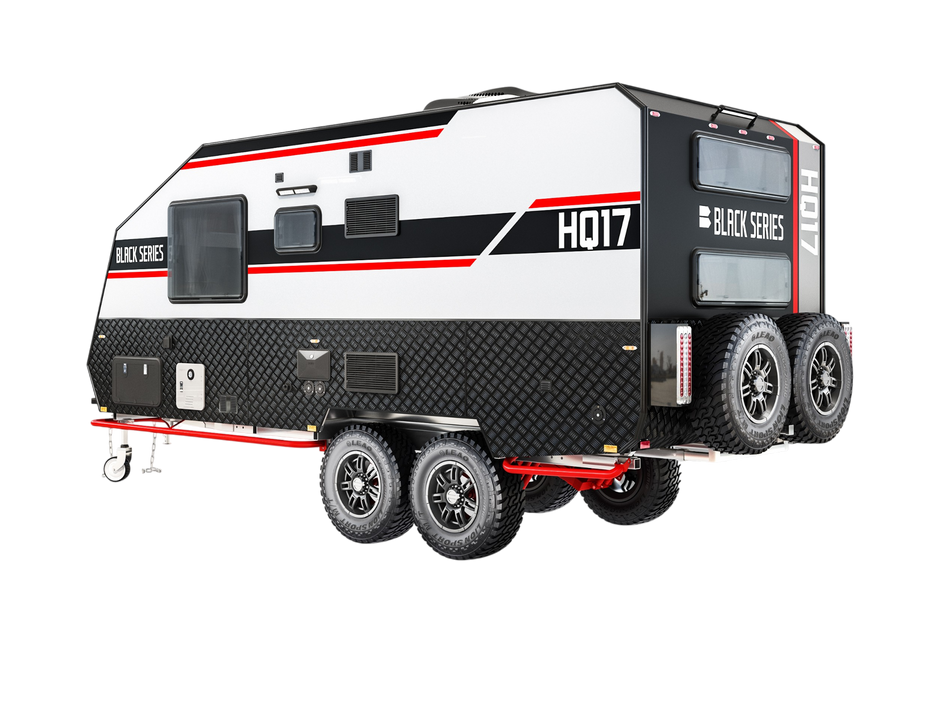

Off-road travel trailer with queen bed, bunk beds, convertible lounge, full fiberglass wet bath, indoor and outdoor kitchen systems, solar power, water systems, and Black Series chassis configuration.
5
Sleeps
17ft
Internal Length
6,000lbs
Dry Weight
600W
Solar
Measurements
Internal Height7ft
Internal Length17ft
External Height9ft
External Length24ft
External Width7ft
Dry Weight6,000lbs
Tongue Weight600lbs
GVWR10,000lbs
Interior
Sleeping Configuration1x Queen Bed, 2x Bunk Beds, and convertible lounge
Wet BathFull fiberglass shower enclosed with ventilation and toilet
LoungeDinette with premium faux leather seating and adjustable table convertible to sleeper
KitchenPropane stove, sink, microwave, and fridge
FlooringWood vinyl
CabinetryModern 5-star timber finish veneer, gas strut supports, push-open travel-safe locks, and soft-close drawers
LeatherPremium leather with a 5-star finish
Screen DoorTri-lock security door with locking fly screen
Exterior
MaterialsAluminum composite panels with added aluminum diamond plating for added strength
Stone Guard / Skid GuardAdds protection for bottom
InsulationSpray foam R16 insulation on full roof and walls
RoofOne-piece aluminum and roof hatch with shade

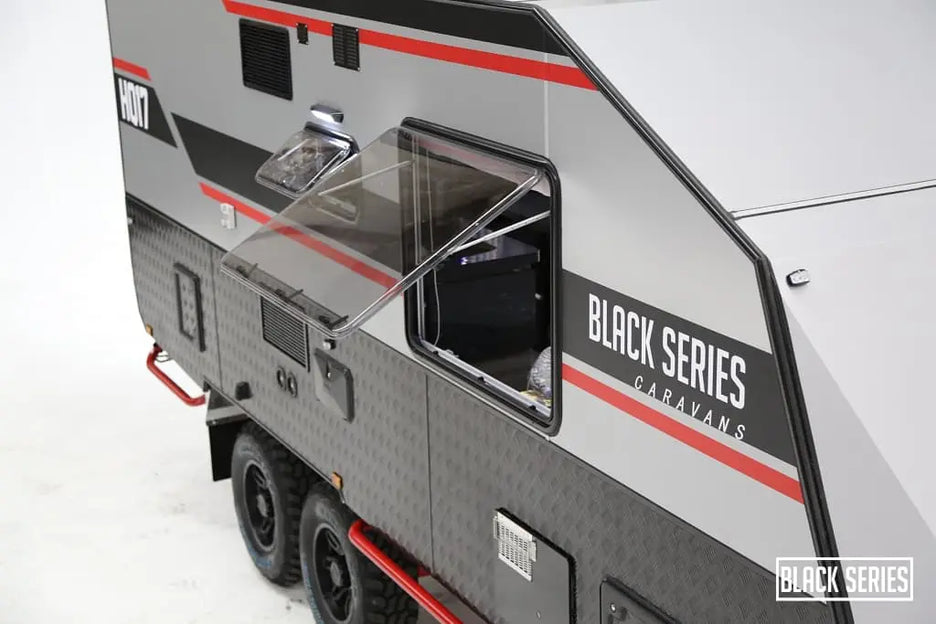

WindowsEurovision windows with fly screen and privacy shades
Awning13ft electrical awning
StorageLarge pass-through storage; front storage for 2x jerry cans and 2x propane tanks
Prep TableLockable fold-down outdoor table
Outdoor KitchenStainless steel slide-out sink, propane burner stove, and large prep table
ShowerOutdoor shower
Appliances / Accessories
Fridge6 cu. ft. fridge / freezer
StoveOutdoor and indoor propane stove
RangehoodSlim twin fan with light range hood
Microwave6 gal. electrical microwave with four operating features
Furnace16,000 BTU thermostat control
Air Conditioning13,500 BTU rooftop air conditioning unit
EntertainmentCD / FM / iPod / Bluetooth / USB radio, 2x interior speakers, 2x outdoor marine-grade speakers, 24” TV with DVD function
AntennaHD TV over-the-air antenna with built-in Sure-Lock
SafetyFire extinguisher, smoke alarm, and propane / CO detector
Plumbing
ShowerOutdoor shower and interior full fiberglass shower
SinkLarge interior stainless steel sink and outdoor stainless steel drip sink
ToiletPorcelain toilet
Filtered Water11.88 gal. triple filtered system
Fresh Water63.4 gal. polyurethane water tank with 0.12” aluminum bash cover
Grey Water26.42 gal. polyurethane water tank with 0.12” aluminum bash cover
Black Water26.42 gal. polyurethane water tank with 0.12” aluminum bash cover
Hot WaterHot water system
Electrical
Electrical System12V / 110V electrical system with 2,000W Black Series pure sine wave inverter and custom Black Series Camper, Inc. control panel
Battery4x 100AH
Solar4x roof-mounted 150W solar panels
Internal LightingLED reading lights in bedroom and lounge
External LightingWide-angle side-mounted LED flood lights, front and rear LED light bar
PlugsInternal / external 12V / USB plugs
Shore Power30 amp service
Control PanelBreakers, digital gauges, and electrical power readout
Chassis
Drawbar / ChassisHot-dipped galvanized tubular steel made from RHS 4” x 2”, 0.15 wall thickness, with 0.24” supporting plates for extra strength and durability

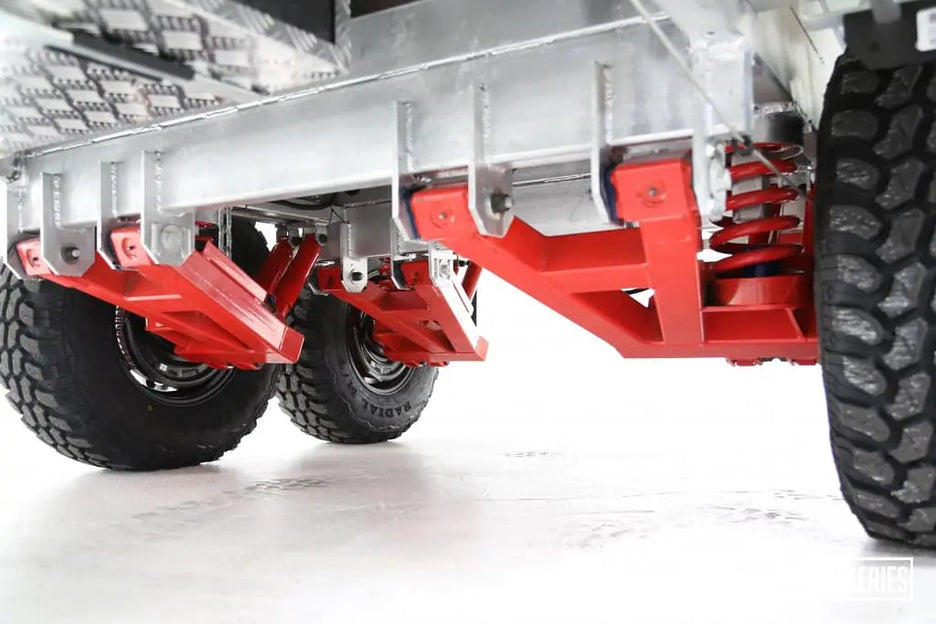

Independent SuspensionControl arm with dual shock absorbers and coil springs
Tires265/75R16 off-road tires with two spare tires
Wheels16” alloy wheels with black powder-coated finish
Brakes12” electric tow brake with mechanical handbrake breakaway system and 2x safety chains
Connector7-pin flat plug
Anderson Plug50 amp Anderson plug
HitchBlack Series Camper, Inc. ADR-approved off-road poly block hitch
Recovery Hooks2x rear-facing recovery shackles
FAMILY OFF-ROAD TRAILER
01 / EXTERIORBASE MODEL REFERENCE
FAMILY OFF-ROAD TRAILER
Five places to sleep.
One compact family base.
A 24 ft family trailer with a queen bed, two bunks and a convertible lounge, plus a wet bath and 6 cu ft fridge for shared weekends.
BEST STARTING POINT FORTwo adults + children
Permanent bunks reduce nightly setup while the lounge remains flexible for meals or a fifth sleeping place.
SLEEPINGUp to 5
BATHROOMWet bath
INTERIOR17 ft
COOKINGInside + outside
5Published sleeps
24 ftOverall length
6,000 lbDry weight
10,000 lbGVWR
600 WRoof solar
63.4 galFresh water
Published base-model figures. Dry weight excludes cargo, water and travel supplies. Verify the selected unit and purchase build sheet.
01 / WHO IT FITS
Choose it for the way
you actually travel.
Families that prioritize permanent bunks and five published sleeping places.

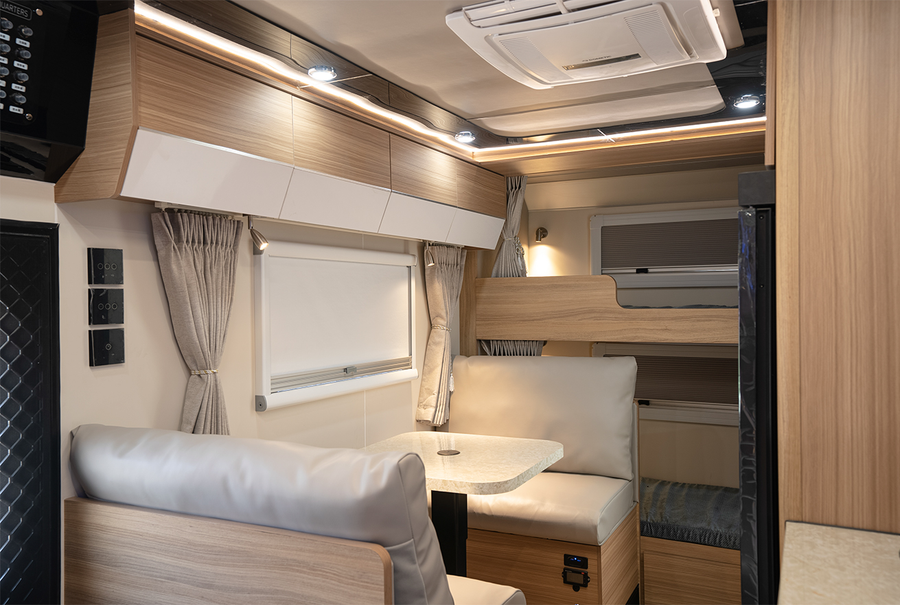

Lounge becomes a bed.

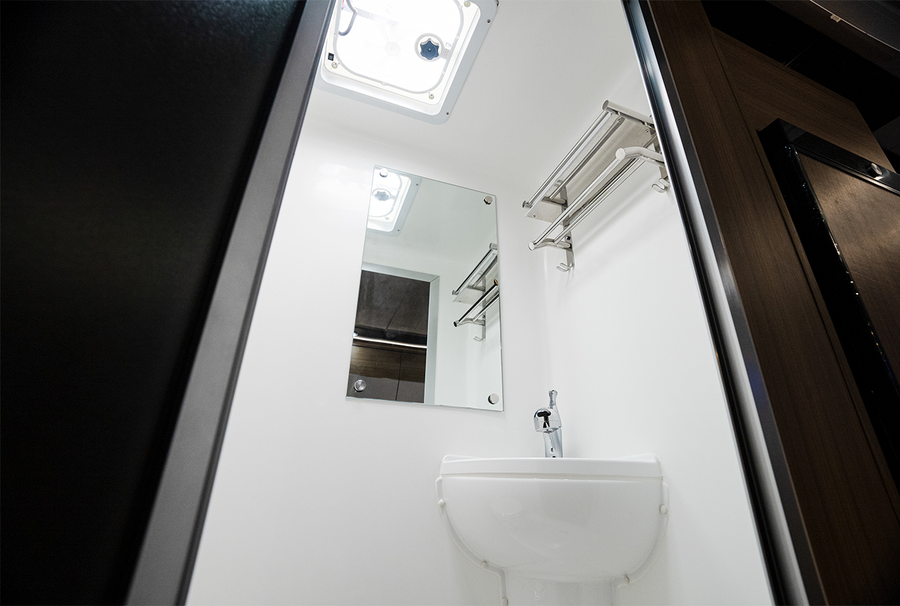

Shower and toilet share space.
More family food capacity.
Check loaded payload.
600 W roof solar.
FAMILY OF FOUR
Four beds ready.
The table stays free.
The queen and two bunks cover the everyday sleeping plan without converting the dinette.
- Queen bed
- Two permanent bunks
- 6 cu ft fridge
Think about: Confirm bunk dimensions as children grow.
THE FAMILY DIFFERENCE

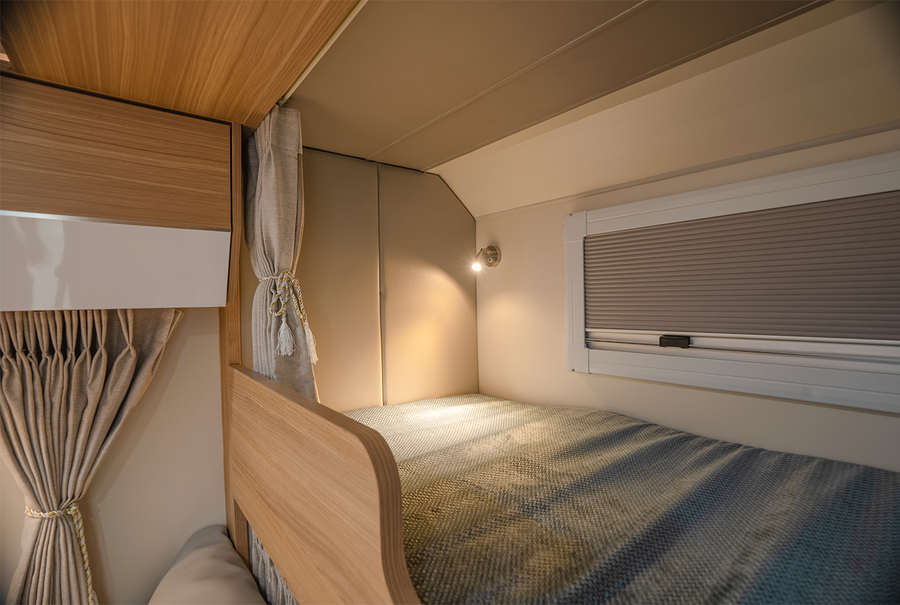

Bunks stay bunks.
The lounge stays useful.

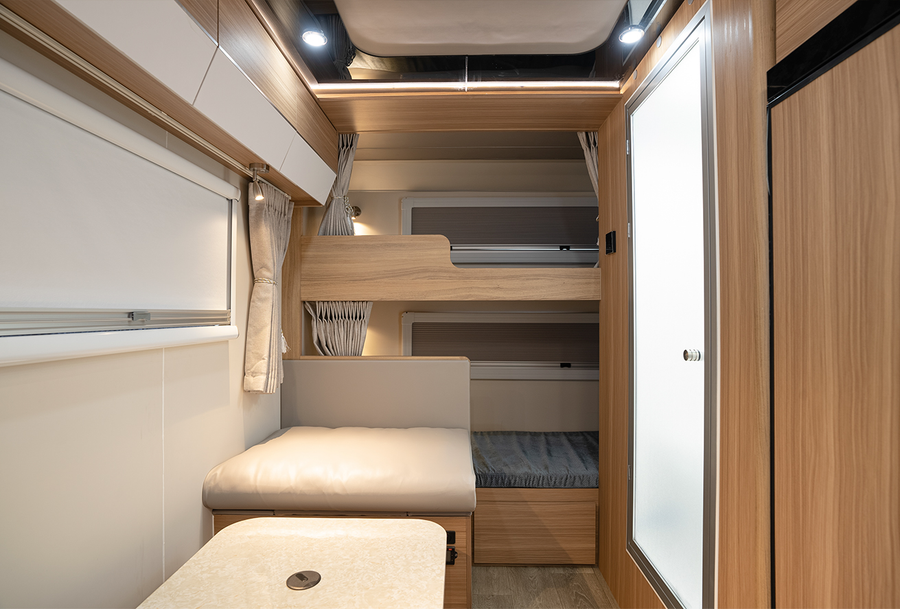

Two dedicated bunks make HQ17 the clearest HQ family layout. The fifth published sleeping place comes from the convertible lounge, so bed dimensions still matter.
2Dedicated bunks
5Published sleeps
6 cu ftFridge / freezer
02 / LIFE INSIDE
Every zone
earns its space.

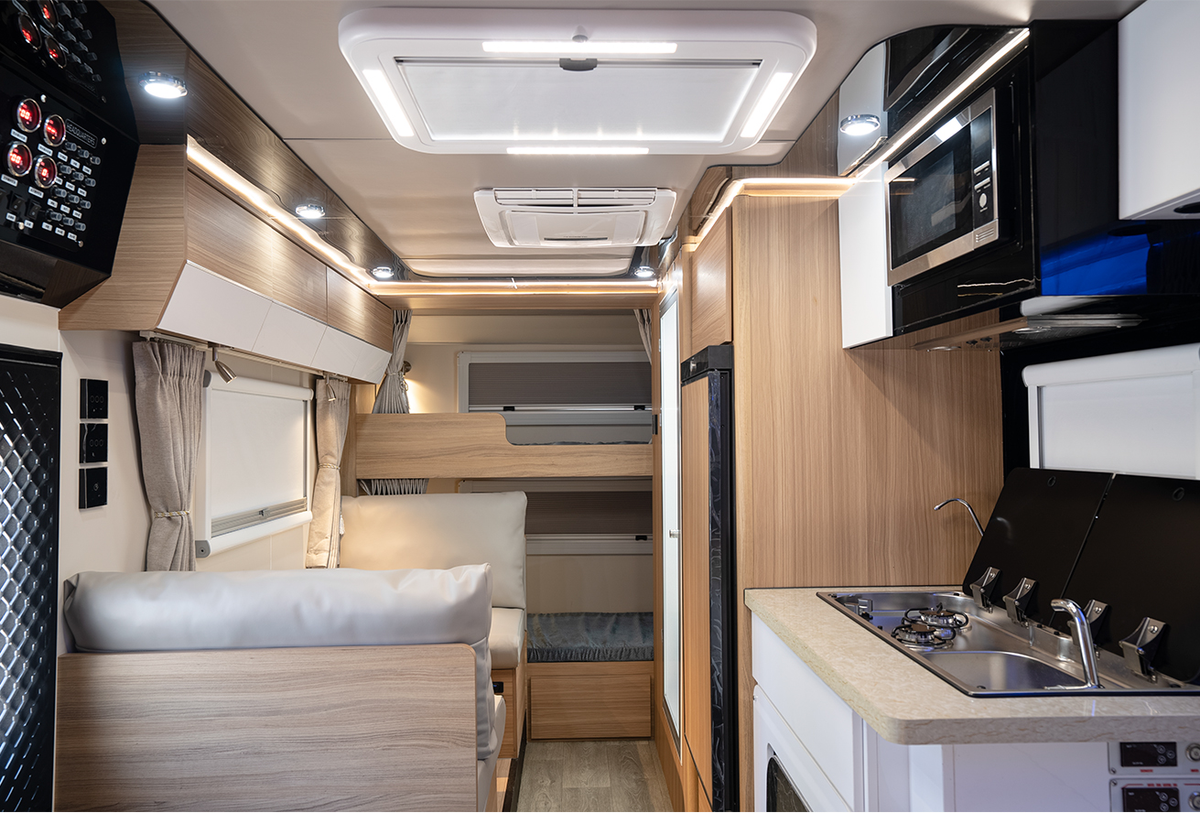

Queen bed + 2 bunks + convertible lounge. Full fiberglass wet bath.
WHAT MATTERS INSIDE
Two bunksDedicated family beds
6 cu ft fridgeFamily food capacity
Wet bathCompact washroom
Soft-closeTravel-safe drawers

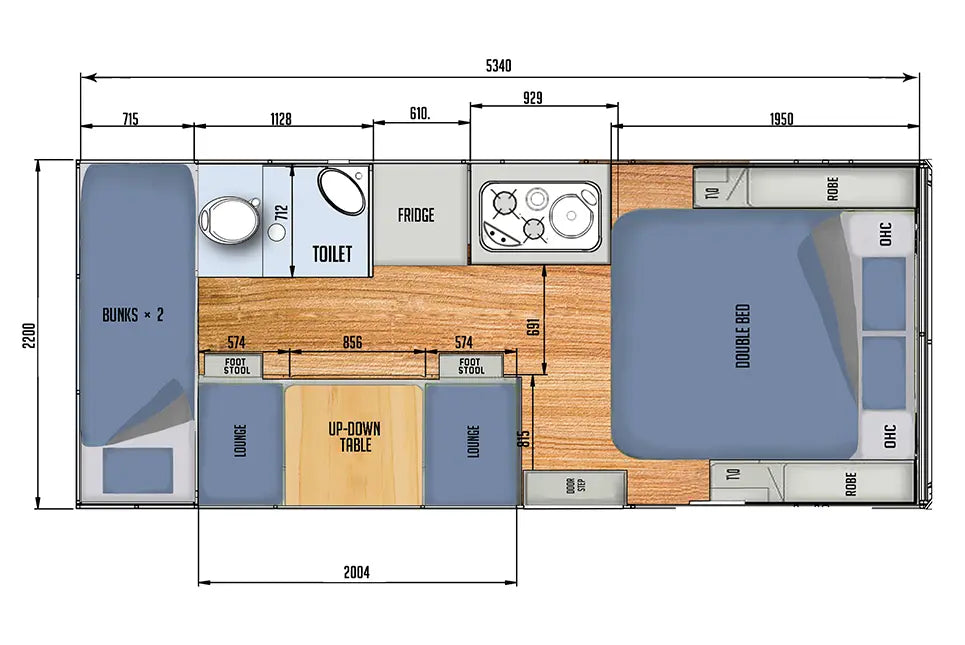

INTERACTIVE FLOOR PLAN

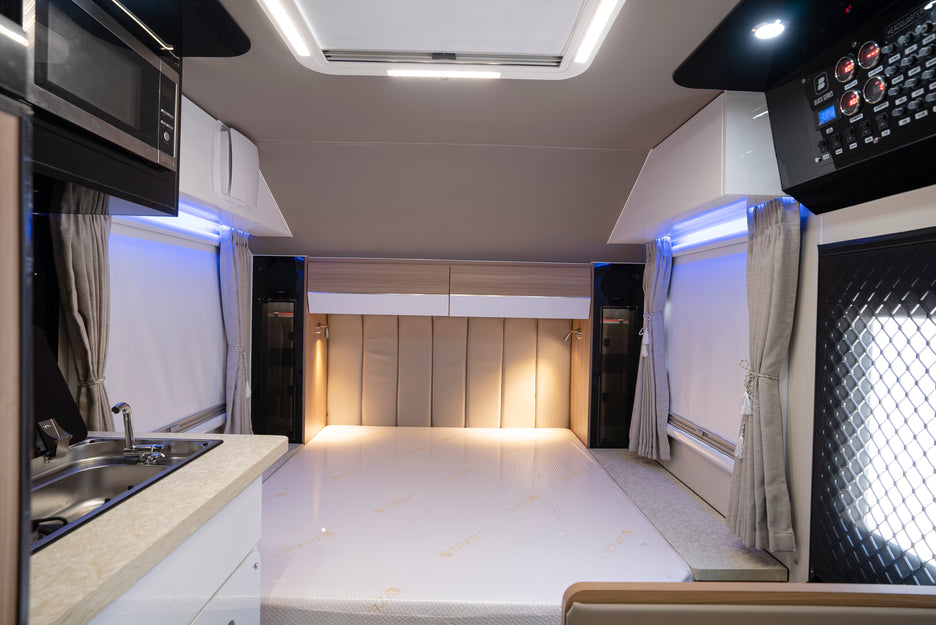

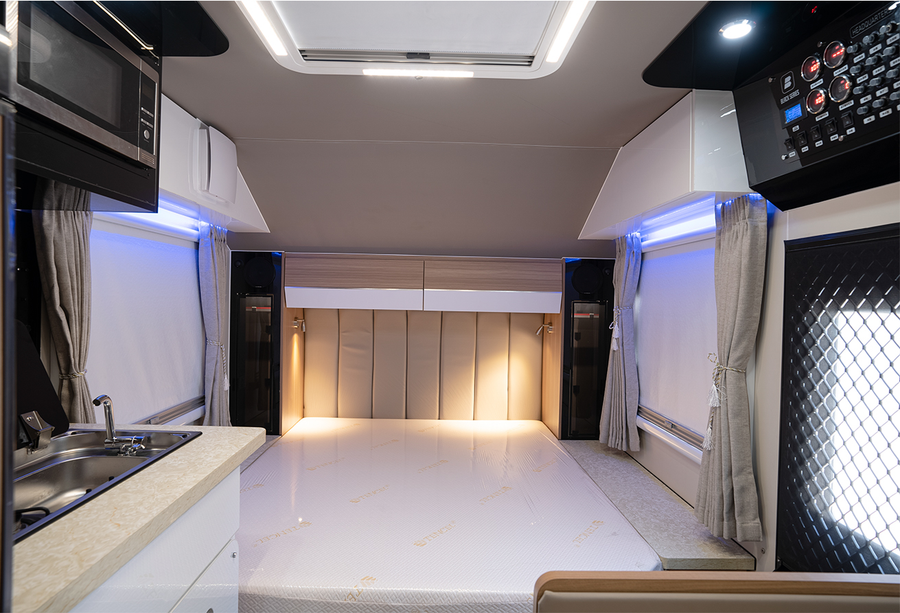

Main bed
Queen bed
Queen bed + 2 bunks + convertible lounge. Review the published plan and confirm dimensions on the selected unit.
Queen bed17 ft interior
Floor plans and finishes can change by production run and package.
INTERIOR / MODEL-SPECIFIC REFERENCE
COMFORT SYSTEMS
Live inside.
Cook outside too.
Indoor and slide-out outdoor propane kitchens. The listed 6 cu ft fridge, 16,000 BTU furnace and 13,500 BTU rooftop air conditioner define the everyday comfort envelope.
6cu ft fridge / freezer
2Cooking locations
13 ft electricAwning
13,500BTU air conditioning
03 / OFF-GRID SYSTEMS
Know what supports
your stay.
Capacity helps only when matched to weather, group size, appliance load and water habits.
POWER ARCHITECTURE
600 W solar.
400 Ah / 4 × 100 Ah.
The listed system combines roof solar, onboard batteries and a pure sine inverter. Runtime depends on battery chemistry, sunlight and loads.
01 / COLLECT600 WRoof solar
→02 / STORE400 Ah / 4 × 100 AhListed battery bank
→03 / CONVERT2,000 WPure sine inverter
30 AShore power12 V / 110 VElectrical system12 V + USBDevice outlets
BUILT FOR THE ROAD BEYOND
The structure
under the finish.
START WITH THE NUMBERS
Match the vehicle
to the loaded trailer.
Published dry weight6,000 lb
GVWR / maximum loaded rating10,000 lb
Published tongue weight600 lb
04 / COMPLETE SPECIFICATION
Every decision point.
Easy to search.
Base-model information checked against current Black Series pages. Options and production updates can change equipment.
01Measurements & weights8 details
Interior height7 ft
Published cabin height.
Interior length17 ft
Useable published cabin length.
Exterior height9 ft
Confirm roof equipment and clearance.
Overall length24 ft
Use for storage and campsite planning.
Exterior width7 ft
Check routes and storage openings.
Dry weight6,000 lb
Before cargo, water and travel supplies.
Tongue weight600 lb
Measure again when fully loaded.
GVWR10,000 lb
Maximum loaded trailer rating.
02Sleeping & interior8 details
Published capacityUp to 5 people
Comfort depends on bed dimensions and traveler size.
Sleeping layoutQueen bed + 2 bunks + convertible lounge
Confirm every sleeping surface.
BathroomFull fiberglass wet bath
Verify the selected production unit.

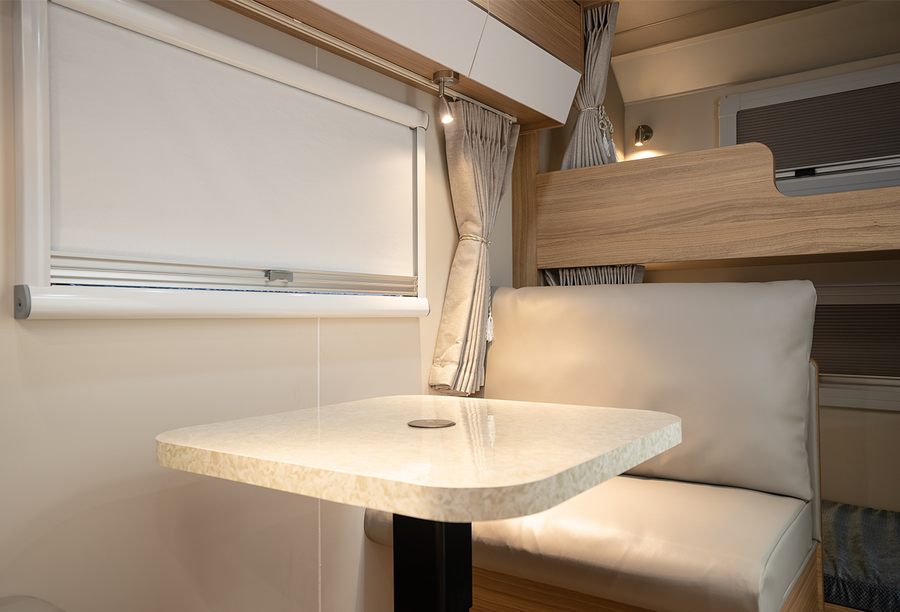

LoungeConvertible faux-leather dinette
Daily seating and conversion function.

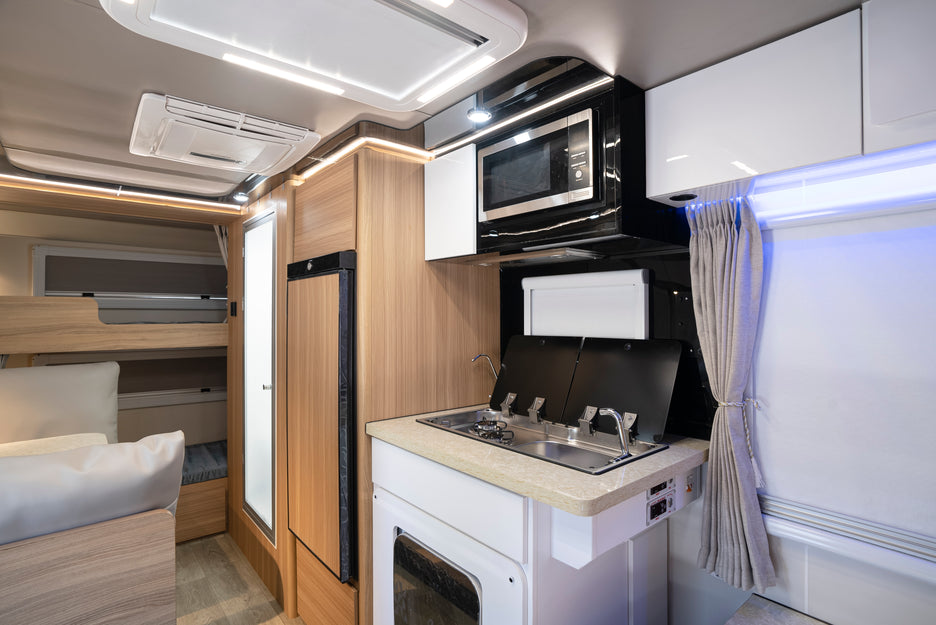

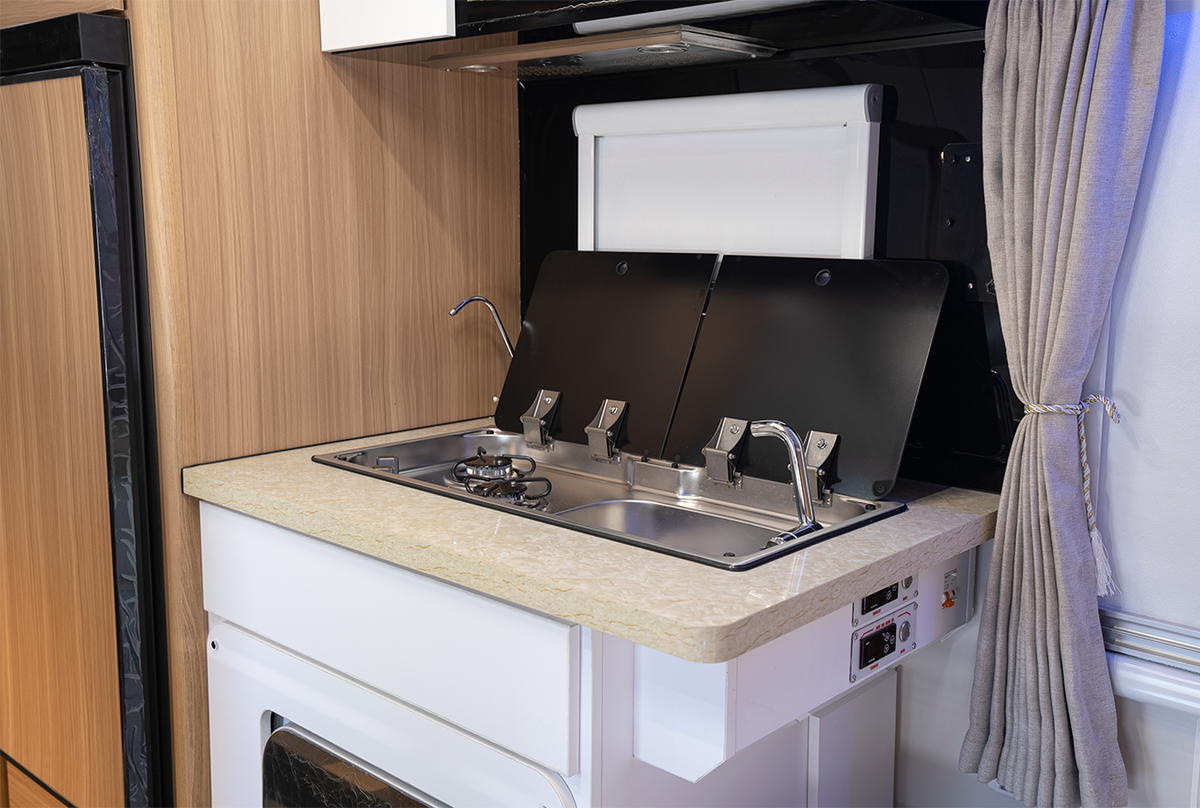

Interior kitchenPropane stove, sink, microwave and fridge
Core meal preparation inside.
CabinetryTimber or model-specific veneer; soft-close drawers
Gas struts and travel-safe locks.
FlooringWood-look vinyl
Practical travel finish.
EntryScreened security door
Ventilation and insect screening.
03Kitchen & comfort9 details
Fridge / freezer6 cu ft
Plan food storage around actual capacity.
CookingIndoor and slide-out outdoor propane kitchens
Two cooking locations.
Outdoor kitchenSlide-out sink, burner and prep table
Campsite meal preparation.
Range hoodSlim twin-fan hood + light
Task light and ventilation.
MicrowaveElectrical microwave
Confirm shore/inverter requirements.
Furnace16,000 BTU
Thermostat controlled.
Air conditioning13,500 BTU
Confirm power requirements off grid.
Entertainment24 in TV + multi-source audio
Model equipment can vary.
SafetyFire extinguisher, smoke alarm and propane/CO detector
Inspect and maintain every device.
04Water & bathroom8 details
Fresh water63.4 gal
Protected onboard tank.
Filtered water11.88 gal
Separate drinking-water supply.
Grey water26.42 gal
Protected holding tank.
Black water26.42 gal
Protected holding tank.
Hot waterHot-water system
Confirm fitted heater.
Interior bathroomWet bath
Review layout before ordering.
Outdoor showerExterior connection
Useful for gear and shoes.
ToiletPorcelain or model-specific RV toilet
Confirm fitted unit.
05Electrical & solar9 details
Electrical system12 V / 110 V
Control panel with power readout.
Solar array600 W / 4 × 150 W
Roof-mounted array.
Battery bank400 Ah / 4 × 100 Ah
Nominal published capacity.
Inverter2,000 W pure sine wave
Check continuous and startup loads.
Shore power30 A
Campground connection.
Tow charging50 A Anderson plug
Verify tow-vehicle installation.
Device outletsInterior / exterior 12 V + USB
For compatible devices.
Interior lightingLED reading lights
Bedroom and living zones.
Exterior lightingFlood lights + light bars
Campsite and work lighting.
06Chassis & running gear9 details
ChassisHot-dip galvanized tubular steel
Structural trailer foundation.
SuspensionIndependent control arms, coil springs and dual shocks
Independent wheel movement.
Tires265/75R16
Check pressure, condition and load rating.
Wheels16 in alloy
Confirm current build.
Spare tires2
Published spare count.
Brakes12 in electric
Mechanical handbrake and breakaway system.
Connector7-pin flat plug
Confirm vehicle compatibility.
HitchADR-approved off-road poly-block
Articulating off-road coupling.
Rear fittings2 recovery shackles
Use only under manufacturer procedures.
07Exterior & construction8 details
BodyAluminum composite panels + diamond plate
Exterior shell and lower protection.
Stone / skid guardAdded lower protection
Protects vulnerable areas.
InsulationR16 roof and wall insulation
Manufacturer-listed insulation.
RoofOne-piece aluminum with roof hatch
Confirm fitted roof equipment.
WindowsFly screens + privacy shades
Ventilation and privacy.
Awning13 ft electric
Deploy only in suitable conditions.
StoragePass-through + front storage
For tanks, cans and camp gear.
Exterior tableLockable fold-down table
Extra preparation surface.
No matching specifications.
Where official pages conflict or omit a figure, verify the selected unit and purchase build sheet.
